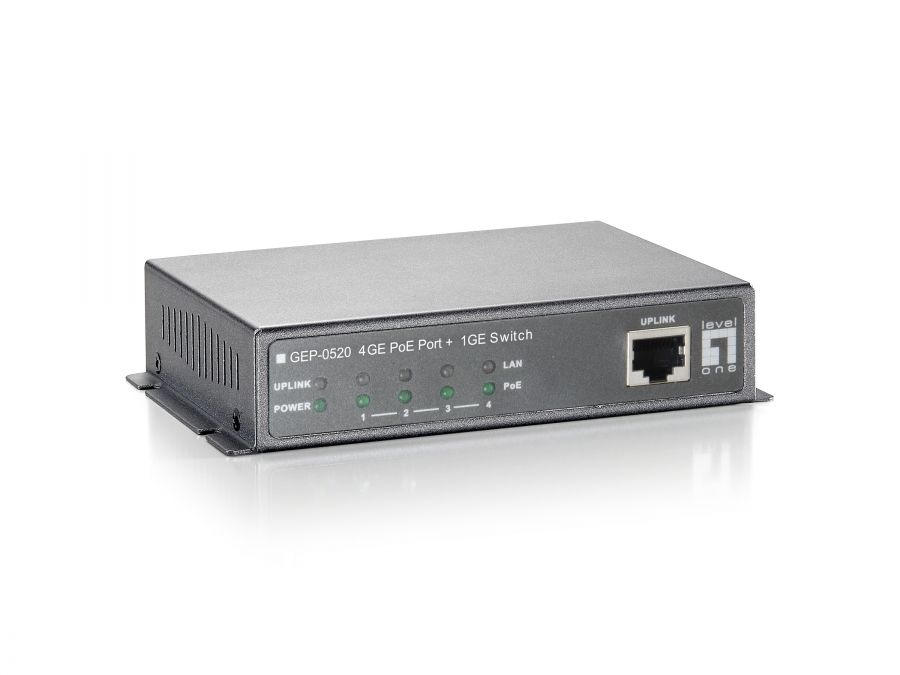

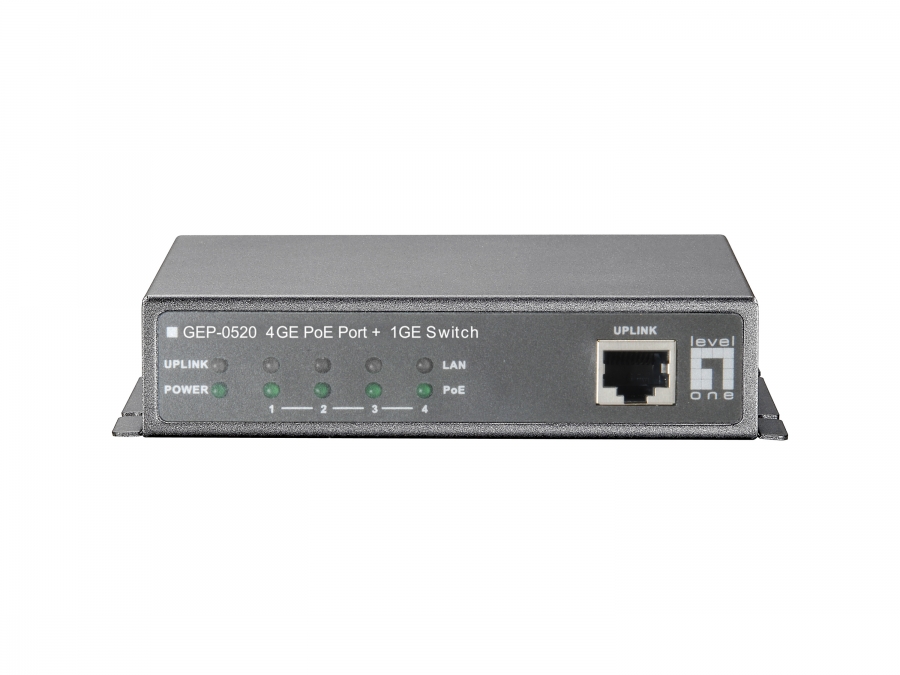

Level One LevelOne Switch 5x GE GEP-0520 61.6W 4xPoE+

Kods GEP-0520

Condition: Jauns

Vairāk informācijas

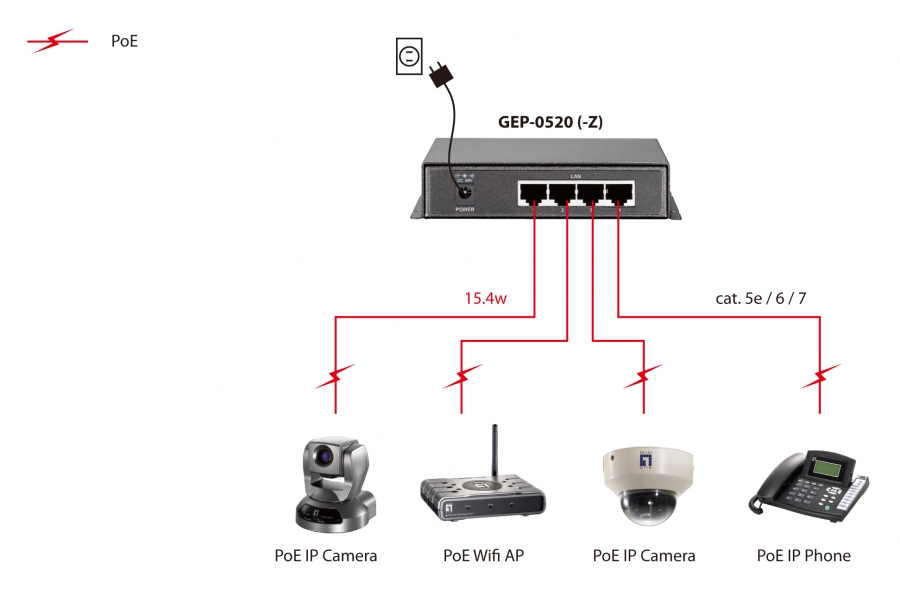

The LevelOne GEP-0520 provides 5 x 10/100/1000Mbps ports with IEEE 802.3af PoE supported. This switch is IEEE 802.3af compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 61.6W, up to 15.4W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially low power consumption during periods of low-link utilization. Moreover, it supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefer an inexpensive solution for PoE deploying infrastructure.- IEEE 802.3af PoE compliant to simplify deployment and installation - 10/100/1000Mbps wire speed transmission and reception - 9K jumbo frames to increase data transfer rates - Auto-detection and protection of non-standard PoE devices - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - Total PoE power budget: 61.6W, up to 15.4W per port - Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat5, Cat5e, Cat6, Cat7
MAC address table	2048 entries
Switching capacity	10 Gbit/s
Store-and-forward	Y
Jumbo frames support	Y
Jumbo frames	9000
Packet forwarding rate (1 Gbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Rack mounting	N
Stackable	N
Product colour	Black
LED indicators	Uplink, LAN, PoE, Power
Country of origin	Taiwan
Certification	FCC, CE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	65 W
Power protection features	Over current, Short circuit
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE) power per port	15.4 W
Total Power over Ethernet (PoE) budget	61.6 W
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	90 mm
Depth	120 mm
Height	28 mm
Weight	800 g
Quick start guide	Y
AC adapter included	Y
Package width	150 mm
Package depth	80 mm
Package height	235 mm
Package weight	1.04 kg
Harmonized System (HS) code	85176990
