Level One LevelOne Switch 8x FE FEP-0812 65W 4xPoE

Kods FEP-0812

Condition: Jauns

Vairāk informācijas

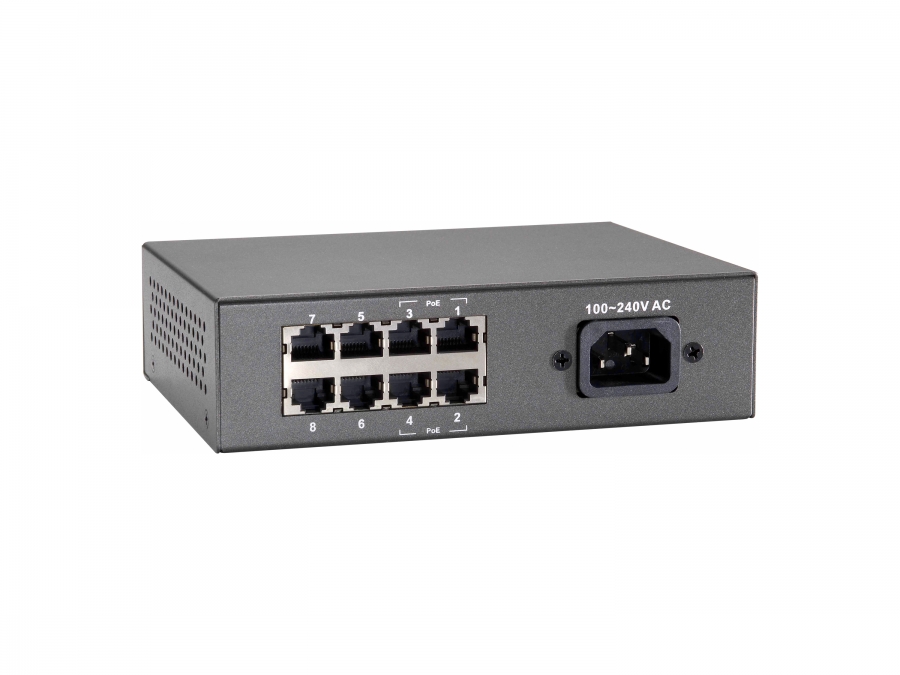

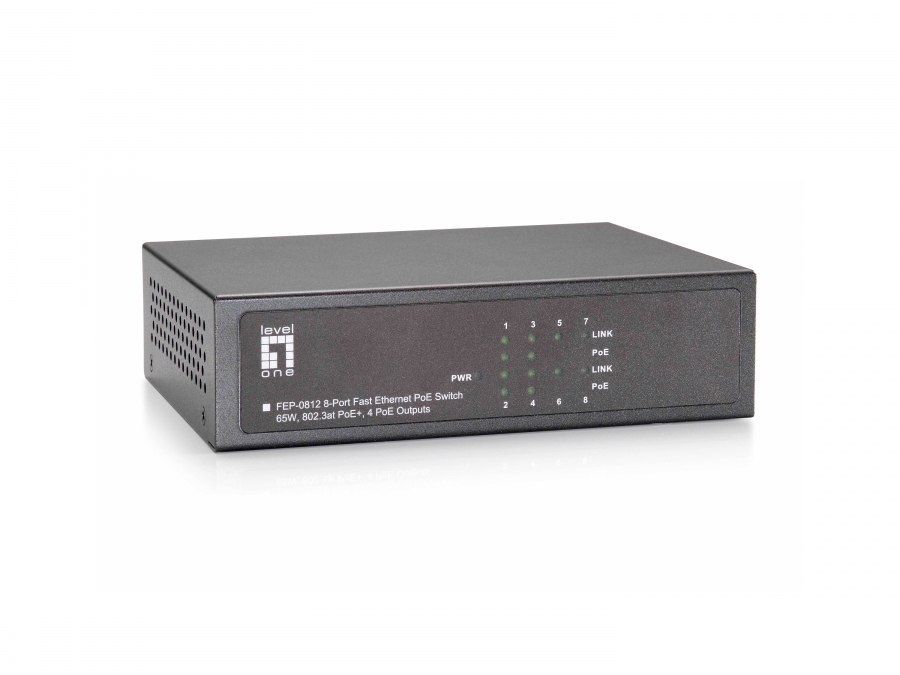

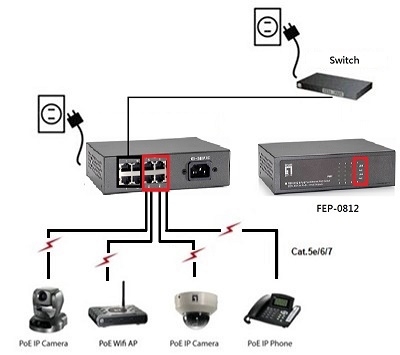

The FEP-0812 is a 8-port 10M/100M Fast Ethernet Switch with one uplink port plus 4 ports of Power over Ethernet capability. Per PoE port is power supply up to 30W. The total PoE power budget is 65W. It is an ideal solution where office and home users utilize a combination of PoE and non-PoE enabled devices.Four ports on the FEP-0812 are PoE enabled making it an ideal solution for most office users that have PoE enabled devices located around the office. These products can include a mixture of PoE IP Phones, PoE wifi APs and PoE IP Cam. It is the perfect answer for offices that are upgrading their office equipment and LAN infrastructure to include PoE capability. The switch automatically detects IEEE 802.3at/af compliant device connected and provides power and data over a single cable to these devices.The FEP-0812 enables users to deploy a stable and reliable high-speed LAN environment, with store-and-forward switching architecture, packet error filtering and non-blocking packet forwarding. The 802.3x and backpressure flow control mechanisms work respectively for full and half duplex modes. This device supports N-way auto-negotiation protocol that automatically detects networking speed and duplex modes.For instant error detection, the FEP-0812 is equipped with a full range of LEDs to help monitor and troubleshoot problems on the network.- IEEE 802.3af/at PoE compliant to simplify deployment and installation - Auto-detection and protection of non-standard PoE devices - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX - Total PoE power budget: 65W, up to 30W per port - Internal power supply

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Full duplex	Y
Flow control support	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
MAC address table	1024 entries
Switching capacity	1.6 Gbit/s
Forwarding rate	0.1488 Mpps
Store-and-forward	Y
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	14880 pps
Multicast MAC address table	1000 entries
Rack mounting	Y
Stackable	N
Product colour	Black
Housing material	Metal
LED indicators	Activity, LAN, PoE, Power
Country of origin	China
Certification	FCC, CE, RoHS
Buffer size	64 KB
Plug and Play	Y
Power supply included	Y
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	65 W
Power protection features	Over current, Short circuit
Power over Ethernet (PoE)	Y
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	65 W
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Width	122 mm
Depth	44 mm
Height	160 mm
Weight	800 g
Cables included	AC
Quick start guide	Y
Package type	Box
Package width	145 mm
Package depth	80 mm
Package height	235 mm
Package weight	1.1 kg
Harmonized System (HS) code	85176990
