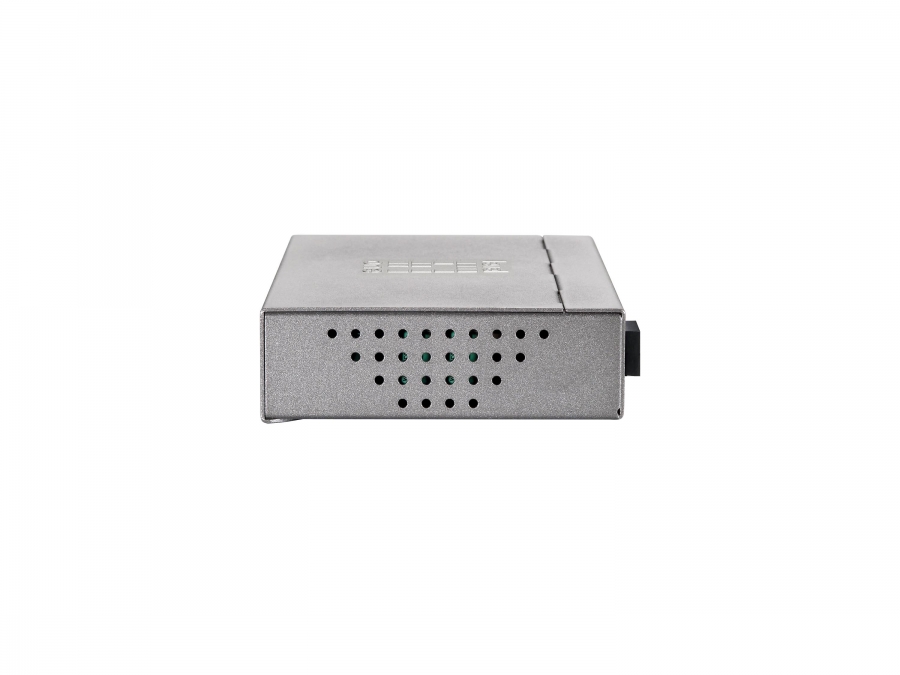

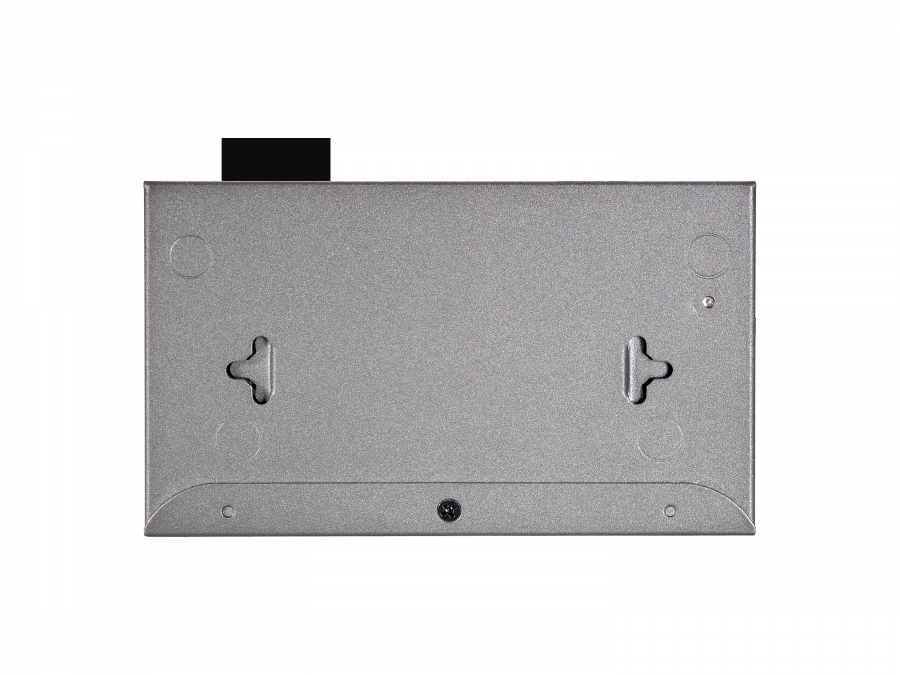

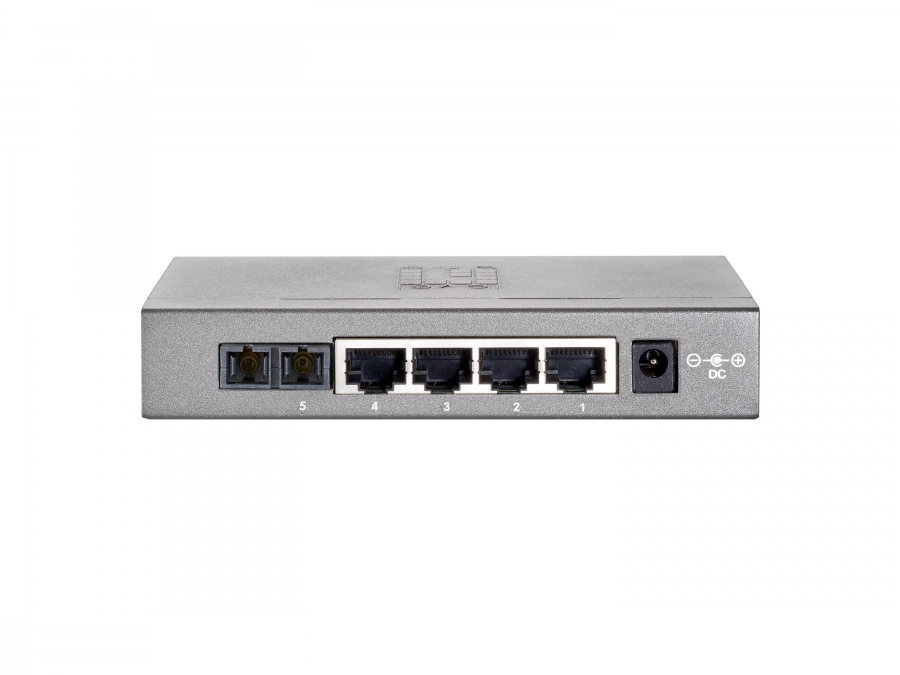

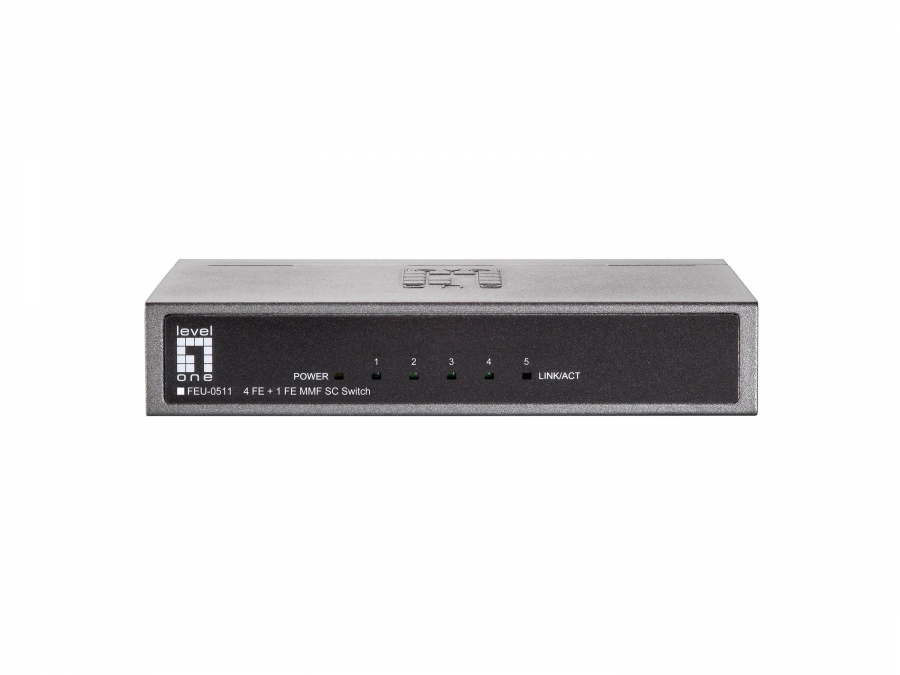

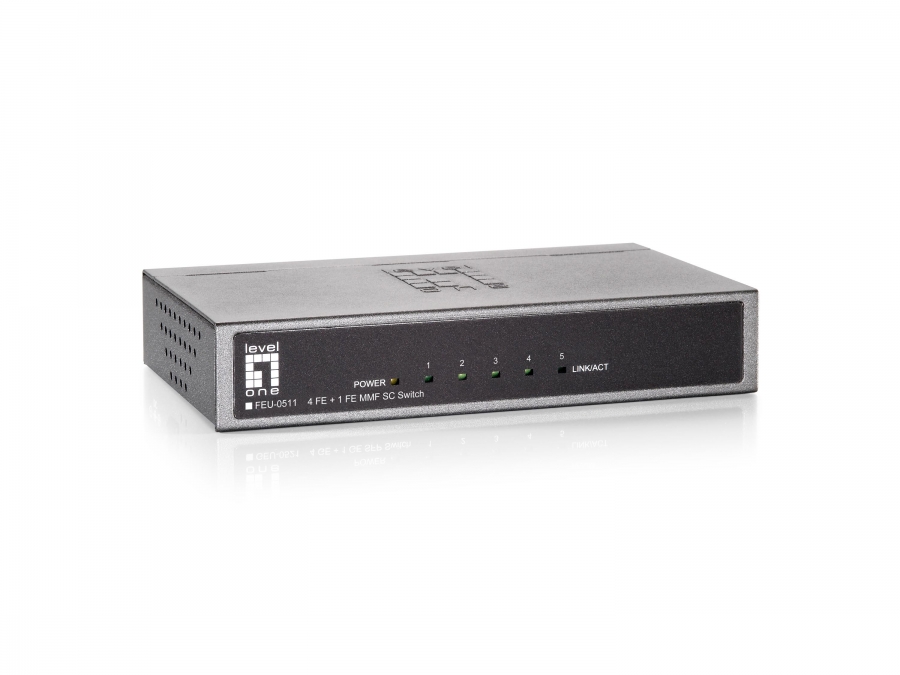

Level One LevelOne Switch 4x FE FEU-0511 1x SC MM Fiber Metall

Kods FEU-0511

Condition: Jauns

Vairāk informācijas

LevelOne FEU-0511 is 4-port 10/100Mbps + 1 100BaseFX Fast Ethernet Switch that is designed for small or medium network environment to strengthen its network connection. This product is compact in size, making it ideal for SMB users with limited space. It is a superb choice for expanding your network.1-Port 100BaseFX (Multi-Mode, SC Connector) The fiber uplink can provide connectivity for a small group of users over a larger distance such as on a campus or between indoor classrooms.Auto-MDI/MDI-X Every port can automatically sense your type of cable, so there is no need for crossover cables whether you are connecting this switch to another switch or to a computer.Auto-Negotiation Every port can automatically sense if the connected network devices are running at 10Mbps or 100Mbps and Half/Full-Duplex mode, and adjust accordingly.Non-Blocking This switch receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port simultaneously supports up to 200Mbps of bandwidth in full-duplex mode. This feature provides full wire speed to the connected devices and allows you to run a smooth network.Store-and-Forward By this function, this switch can maximize network performance while minimizing the propagation of bad network packets.- Provides flexibility of 4 x 10/100BASE-TX ports - 100Base-FX Multi-mode fiber for the link up to 2km - 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - Provides wall or desktop mounting

Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fiber ports quantity	1
Fiber optic connector	SC, ST
Power connector	DC-in jack
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support	N
Copper ethernet cabling technology	10BASE-T, 100BASE-FX, 100BASE-TX
Cable types supported	Cat5
Full duplex	Y
Auto MDI/MDI-X	Y
Auto-negotiation	Y
Fiber ethernet cabling technology	100BASE-FX
Fiber type	Multi-mode
Transmission distance (max)	2 km
MAC address table	1024 entries
Store-and-forward	Y
Packet forwarding rate (100 Mbps)	148800 pps
Packet forwarding rate (10 Mbps)	14880 pps
Rack mounting	N
Stackable	N
Product colour	Black, Grey
Housing material	Metal
LED indicators	Activity, Link, Power
Country of origin	Taiwan
Certification	FCC Class B, CE
Buffer size	384 KB
Maximum data transfer rate	200 Mbit/s
Plug and Play	Y
Output voltage	5 V
Output current	2.5 A
Power consumption (max)	6 W
Power over Ethernet (PoE)	N
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 90 °C
Operating relative humidity (H-H)	10 - 90%
Width	96 mm
Depth	112 mm
Height	30 mm
Weight	380 g
Quick start guide	Y
AC adapter included	Y
Rubber feet	Y
Package width	140 mm
Package depth	250 mm
Package height	55 mm
Package weight	540 g
Harmonized System (HS) code	85176990
