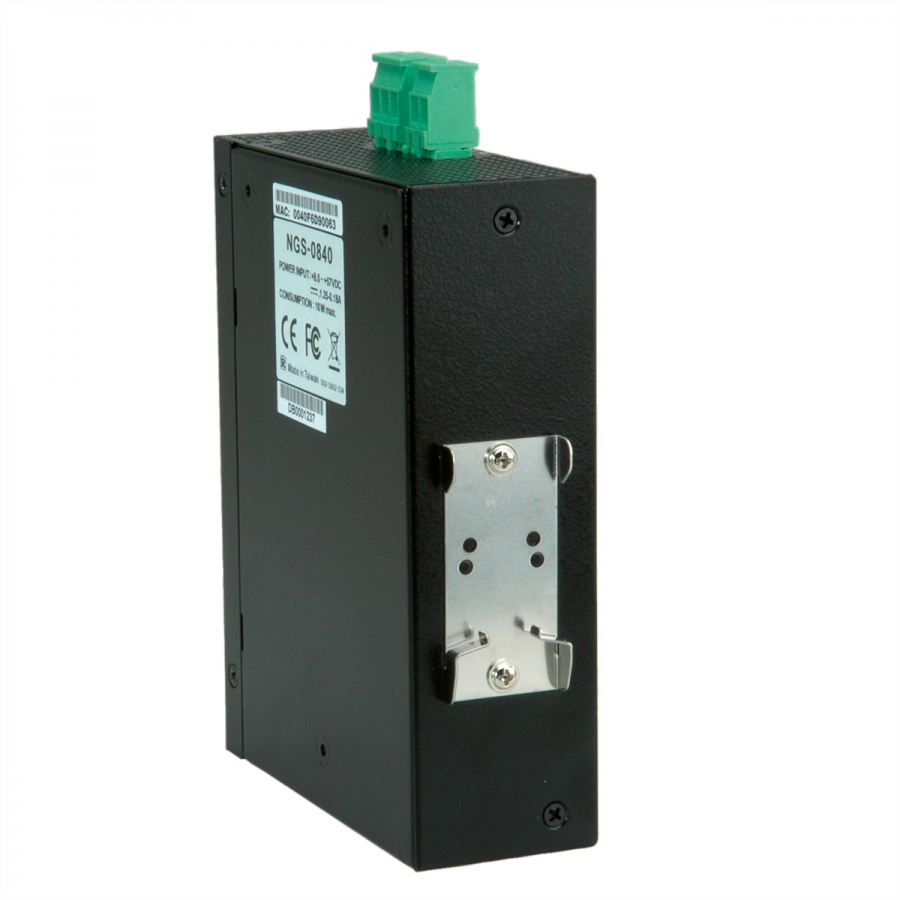

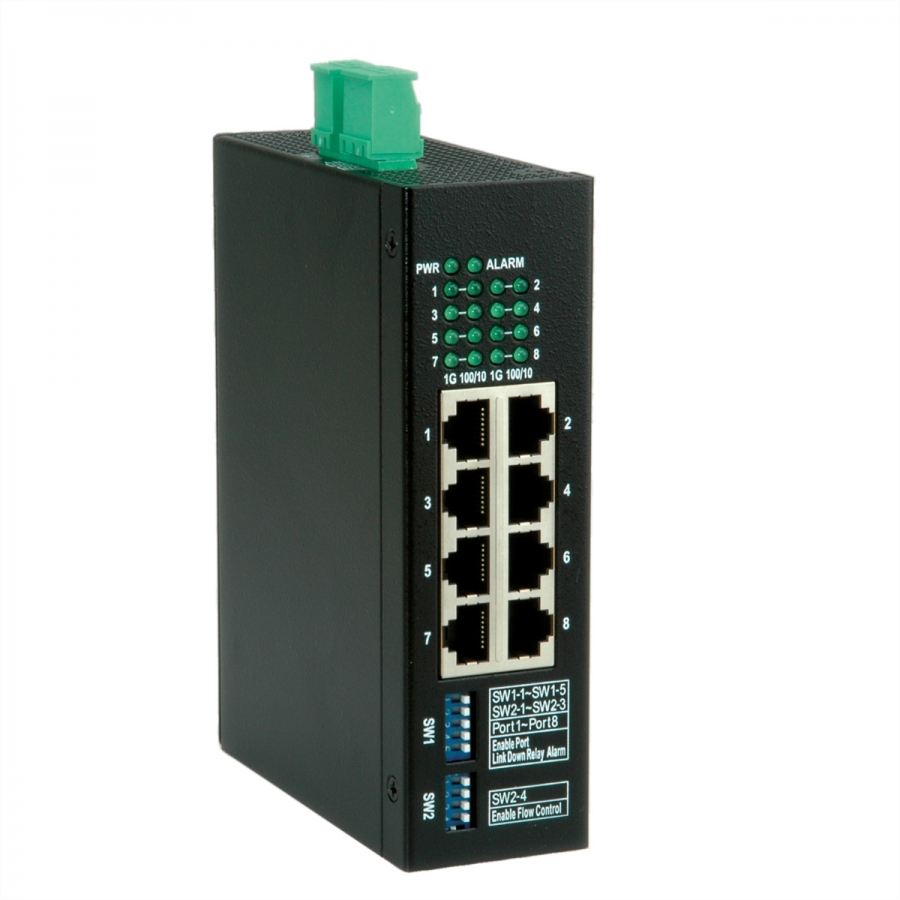

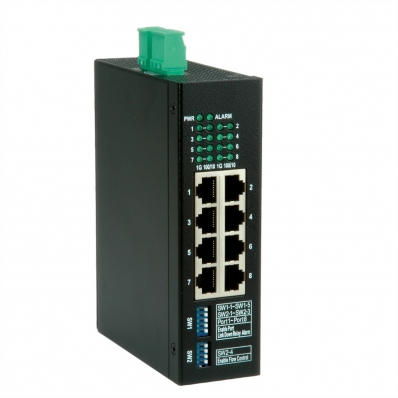

ROLINE Gigabit Ethernet Industrial Switch, 8x RJ45

Kods 21.13.1161

Condition: Jauns

Provides 8x 10/100/1000Mbps copper ports
Auto-negotiation
Auto MDI/MDI-X crossover function
Supports IEEE 802.3x flow control for full duplex
Supports back pressure flow control for half duplex
Fully non-blocking Gigabit full wire speed switching performance
Jumbo frame support
Operating Power: +5 to +30VDC
Alarm relay output for power failure event and configured port link fault events
Wide operating temperature range
Supports Green Ethernet power saving
Entry DC by clamp or DC-powerconnector (6,3mm/2,0mm)
Supports IEEE 802.3az Energy Efficient Ethernet
Supports DIN-Rail mounting and panel mounting
As PSU we recommend 21.13.1311
Industrial-rated emission and immunity performance

Manufacturer	ROLINE
Product group	Network Switches
Product type	Gigabit Ethernet Switch
Colour	black
Scope of delivery	Switch
Network standard	Gigabit Ethernet
LAN (Mbps)	10/100/1000
Quantity of ports	8
Gigabit Ethernet Ports RJ-45	8
Mounting form	DIN Rail
Stackable	Nē
Dimensions (HxWxD)	42 x 106 x 140 mm
Power supply unit (internal/external)	External
Mains connection	Loose cable / screw terminals
Height	42 mm
Width	106 mm
Depth	140 mm
Weight	547.6 g
Height of packaging (single piece)	80 mm
Width of packaging (single piece)	150 mm
Depth of packaging (single piece)	210 mm
Package weight (single piece)	0.651 kg
Current catalog edition	C23-01.10
