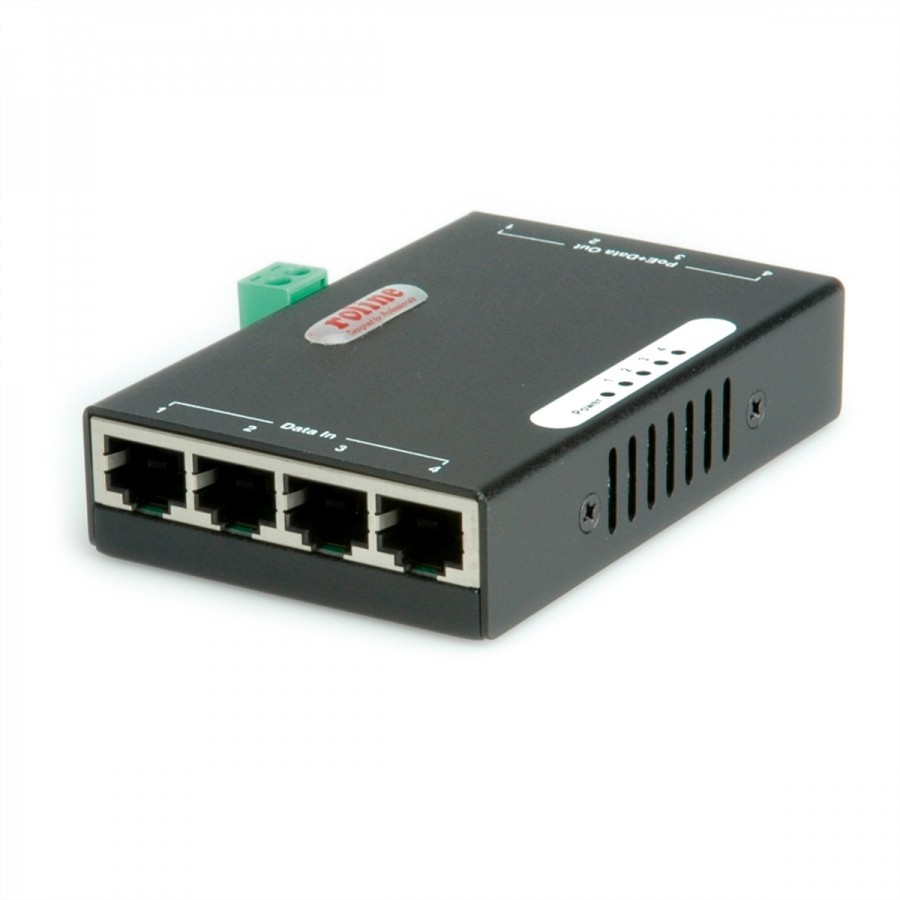

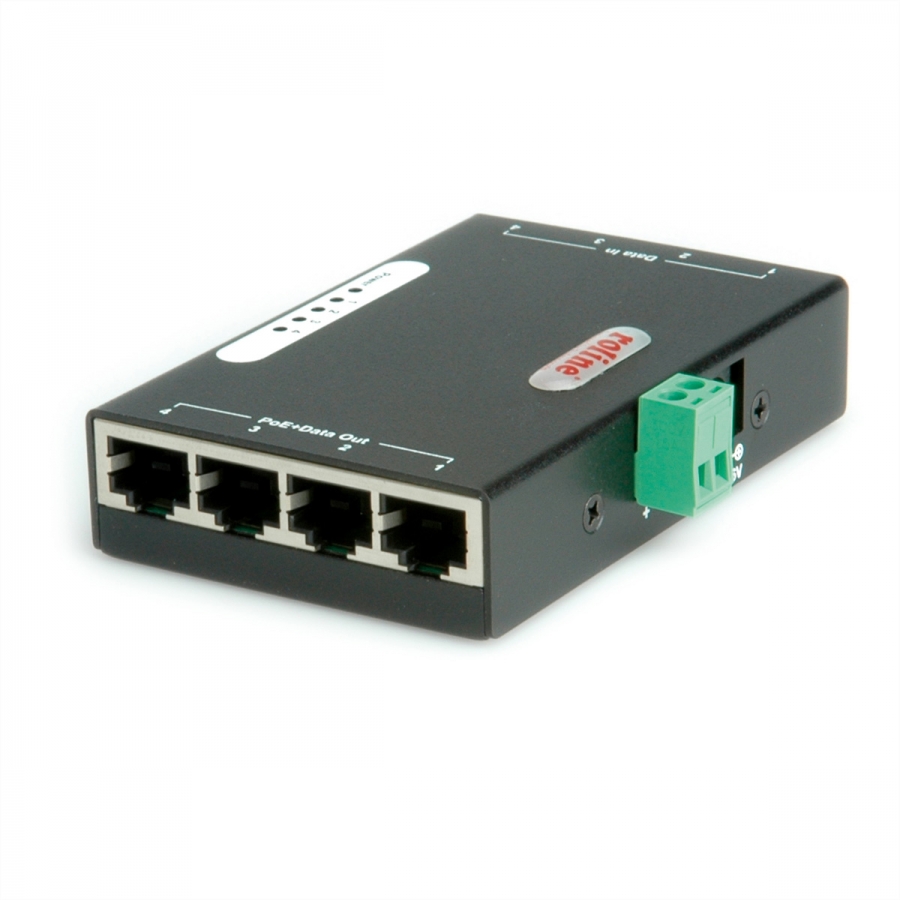

ROLINE PoE Gigabit Injector, 4 Ports

ROLINE

21.13.1198

Jauns

With this ROLINE Gigabit Ethernet PoE injector you can supply with power simultaneously 4 PoE-capable workgroup switches, network cameras, access points, IP phones, etc. via TP connecting cable

  • Inputs: 4x 10/100/1000 ports for data
  • Outputs: 4x 10/100/1000 ports for data and power
  • Supports PoE IEEE 802.3af / at: Up to 30 W per port can be fed into the TP cable
  • Power supply via terminal block or external DC power supply (48V to) 56V DC Port
  • Weight: 190 g
  • Dimensions (L x W x H): 94 × 62 × 20 mm
  • Metal housing



ManufacturerROLINE
Product groupPoE adapter
Product typeGigabit PoE-Injector
Colourblack
Quantity of ports8
Gigabit Ethernet Ports RJ-454
Power over Ethernet (PoE)PoE
Quantity of PoE ports4
Max. PoE output power per port30 Watt
Max. PoE output power (total)120 Watt
Mains connectionAppliance Europlug
Height20 mm
Width62 mm
Depth94 mm
Weight0.19 kg
Current catalog editionC22-01.08
