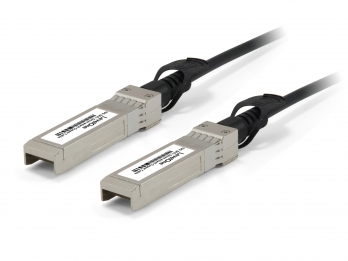

Level One LevelOne Kabel DAC-0101 Direct Attach Copper Cable 1m

Level One LevelOne Kabel DAC-0101 Direct Attach Copper Cable 1m

LEVEL ONE

DAC-0101

Jauns

The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliabilityKey Features - Support for multi-gigabit data rates up to 10.5Gbps - Data rates backward compatible to 1Gbps - Hot-pluggable SFP 20PIN footprint - I/O Connector designed for high speed differential signal applications - Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance - Compatible to SFP+ MSA - Temperature Range: 0~ 70 °C - RoHS Compatible

Cable length1 m
Connector 1SFP+
Connector 2SFP+
Connector 1 genderMale
Connector 2 genderMale
Product colourBlack, Stainless steel
Data transfer rate10.5 Gbit/s
Sustainability certificatesRoHS
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Weight100 g
Package width310 mm
Package depth230 mm
Master (outer) case width360 mm
Harmonized System (HS) code85447000
Master (outer) case length320 mm
Master (outer) case height280 mm
Master (outer) case gross weight5.4 kg
Products per master (outer) case45 pc(s)
