> >>Level One LevelOne SFP+ Transceiver 10G Multi-mode Duplex LC 300m
Level One LevelOne SFP+ Transceiver 10G Multi-mode Duplex LC 300m

Level One LevelOne SFP+ Transceiver 10G Multi-mode Duplex LC 300m

LEVEL ONE

SFP-6101

Jauns

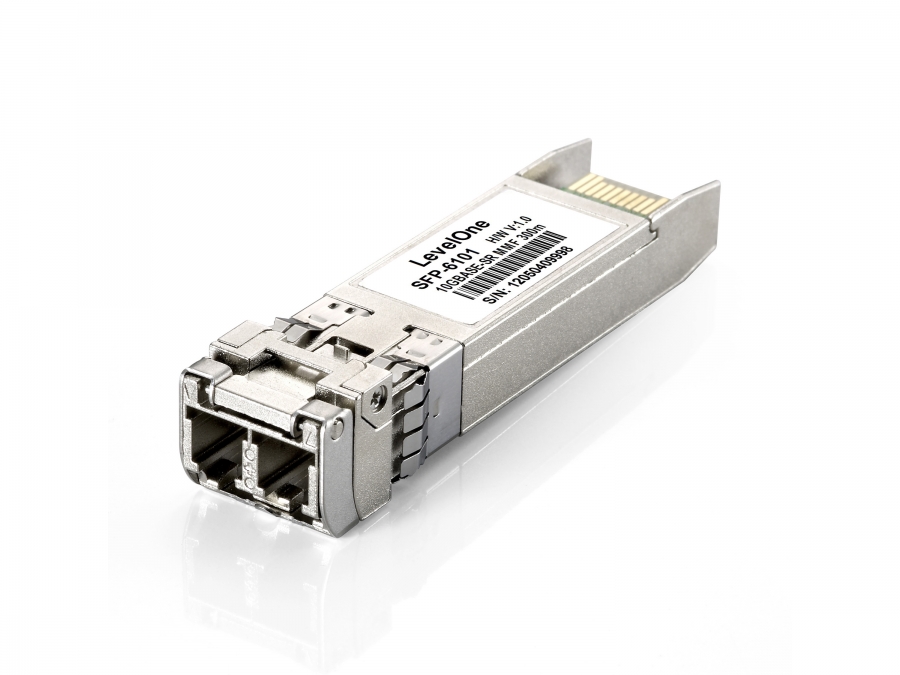

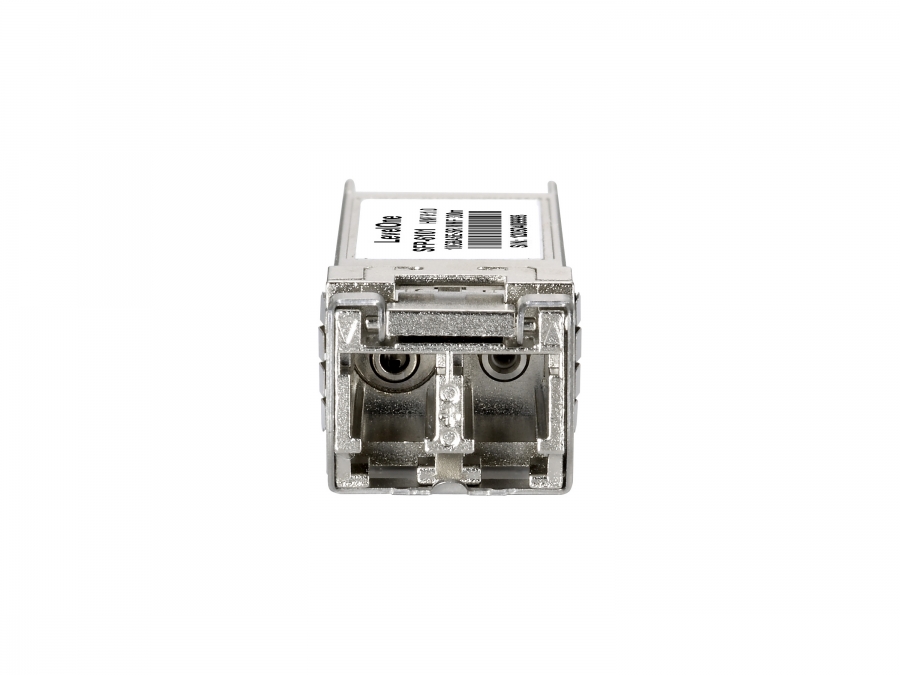

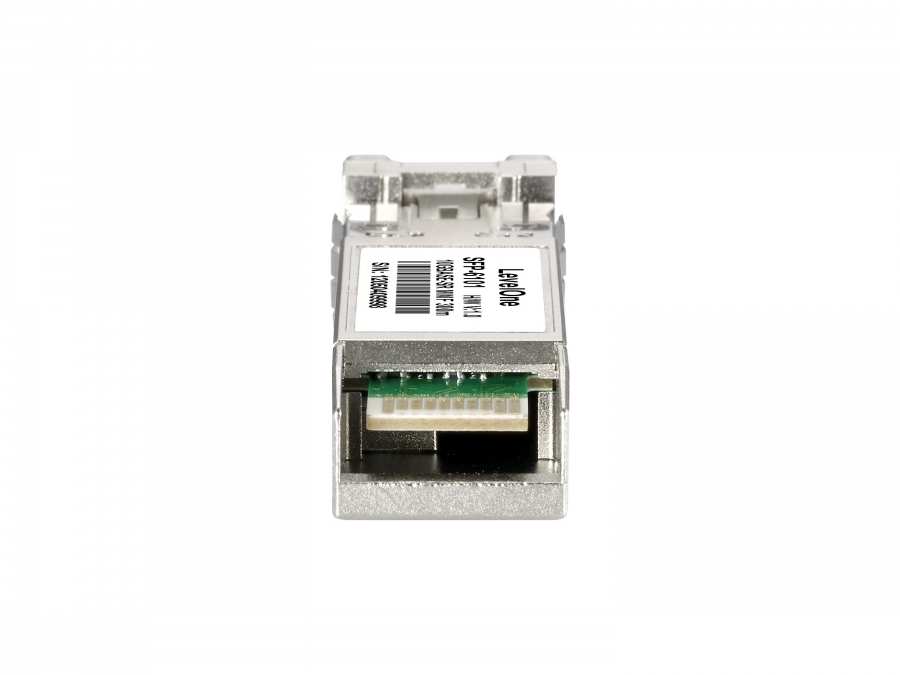

LevelOne's SFP-Plus Transceivers are hot-swappable multi-purpose optical modules support 10Gigabit Ethernet applications across most switching and routing platforms. The transceivers support to operate at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to 40km (SMF) or 300m (MMF), ideally suited for data centers, enterprise and storage area networks. In addition, the LevelOne SFP-Plus transceivers adopt the most advanced technology to minimize the power consumption in ultra-high speed.- High-quality 10Gbase short range SFP-Plus transceiver - Comply with SFP Multi-Sourcing Agreement (MSA) to work in MSA compliant devices - Supports Digital Optical Monitoring (DOM) and Digital Diagnostics Monitoring Interface (DDMI) for easy status monitoring - Hot-swappable providing non-stop service - Provides duplex LC connector - Operating temperature: 0°C ~ 70°C

SFP transceiver typeFiber optic
Maximum data transfer rate10000 Mbit/s
Interface typeSFP+
Multi-mode fiber (MMF) supportedY
Fiber optic connectorLC
Maximum transfer distance300 m
Wavelength850 nm
Tx power (min)-6.5 dBmW
Tx power (max)-1 dBmW
Networking standardsIEEE 802.3ae
Duplex systemFull
Fiber ports quantity1
Hot-swapY
SafetyEN 60825-1
CertificationCE, FCC
Input voltage3.3 V
Maximum voltage3.6 V
Maximum current0.18 A
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Width57 mm
Depth12 mm
Height13.7 mm
Weight20 g
Number of products included1 pc(s)
Package width106 mm
Package depth20 mm
Package height65 mm
Package weight35 g
Sustainability certificatesRoHS
Harmonized System (HS) code85369010
