LEVEL ONE

SFP-7331

Jauns

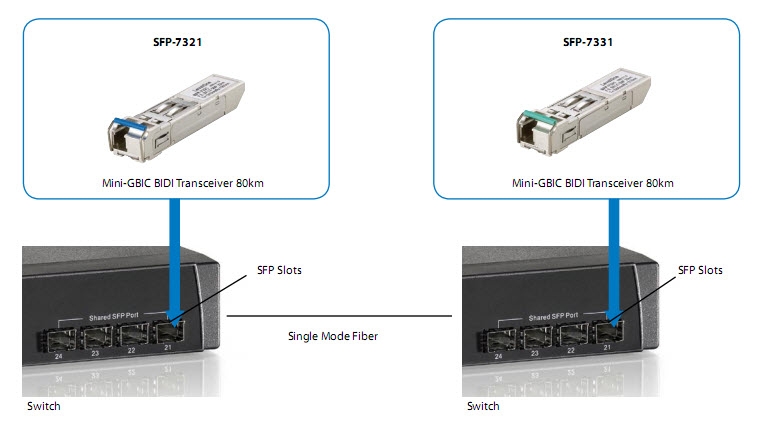

The LevelOne SFP-7331 is a high performance, cost-effective SFP transceiver. It provides up to 155Mbps bi-directional data transfer rate at distances up to 20km on a single fiber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction.The SFP-7331 transmits using a wavelength of 1550nm and receives using a wavelength of 1310nm. When coupled with the LevelOne SFP-7321 transceiver which transmits at and receives at the opposite rates (1550nm TX and 1310nm RX) you get bi-direction data communication on a single fiber core.- 1550nm FP LD - Data Rate: 125~155Mbps, NRZ - Single +3.3V Power Supply - RoHS Compliant and Lead-free - AC/AC Differential Electrical Interface - Compliant with Multi-Source Agreement(MSA) - Compliant with SFF-8472 Digital Diagnostic Monitoring Interface - Single LC Connector - Compliance with specifications for IEEE802.3ah 100BASE-BX10-U - Compliance with FDDI PMD Standard - Compliance with ATM Standard

SFP transceiver typeFiber optic
Maximum data transfer rate155 Mbit/s
Interface typeSFP
Single-mode fiber (SMF) supportedY
Fiber optic connectorLC
Fiber cable diameters supported (core/cladding)9/125 µm
Maximum transfer distance20 m
Tx power (min)-14 dBmW
Tx power (max)-8 dBmW
Networking standardsIEEE 802.3ah
Fiber ports quantity1
Hot-swapY
SafetyEN 60825-1
CertificationCE, FCC
Input voltage3.3 V
Maximum voltage6 V
Maximum current0.3 A
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Width13.7 mm
Depth56.5 mm
Height8.95 mm
Weight20 g
Number of products included1 pc(s)
Package width75 mm
Package depth51 mm
Package height130 mm
Package weight60 g
Sustainability certificatesRoHS
Harmonized System (HS) code85369010
