> >>Level One LevelOne Transceiver 125M MMF SFP Multimode 2km 1310nm
Level One LevelOne Transceiver 125M MMF SFP Multimode 2km 1310nm

Level One LevelOne Transceiver 125M MMF SFP Multimode 2km 1310nm

LEVEL ONE

SFP-2200

Jauns

Salīdzināt

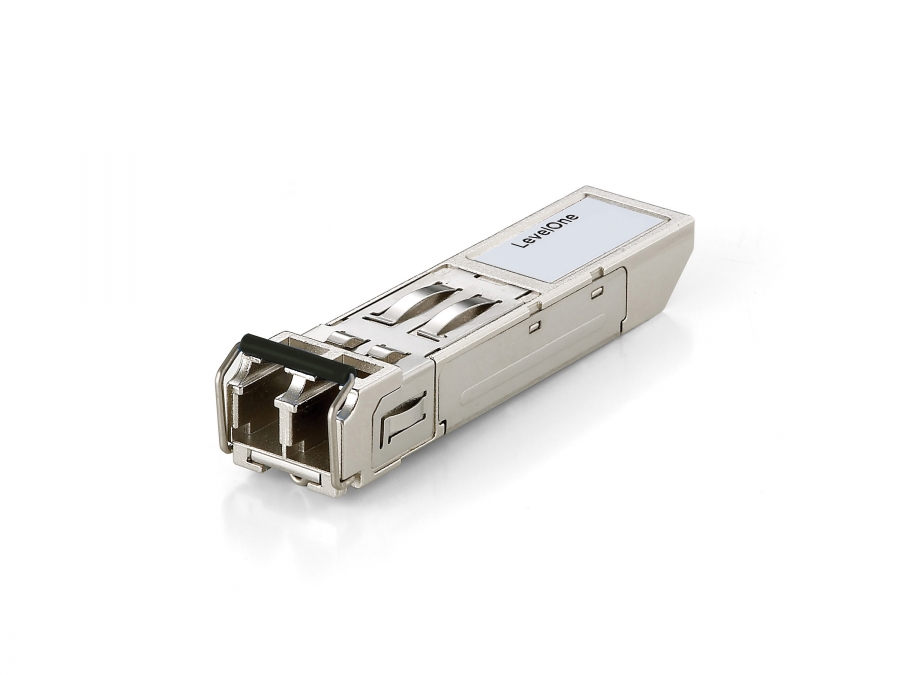

LevelOne Infinity Small Form Factor Pluggable (SFP) transceiver is compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). It complies with Fast Ethernet standard as well as the RoHS compliant and lead-free per Directive 2002/95/EC. This Hot-swappable SFP transceiver offers the latest industry standard in full-duplex Ethernet connectivity and withstand under wide range temperature operation.- Provides duplex LC connector - Compliant with Fast Ethernet standard - 3.3V Single power supply - Hot-swappable - RoHS compliant and Lead Free - Low EMI with metal housing - Industrial operating temperature range -20 °C to 85°C

SFP transceiver typeFiber optic
Maximum data transfer rate125 Mbit/s
Interface typeSFP
Multi-mode fiber (MMF) supportedY
Fiber optic connectorLC
Maximum transfer distance2000 m
Wavelength1310 nm
Tx power (min)-20 dBmW
Tx power (max)14 dBmW
Duplex systemFull
Fiber ports quantity1
Hot-swapY
CertificationCE, FCC
Input voltage3.3 V
Operating temperature (T-T)-40 - 85 °C
Storage temperature (T-T)-40 - 85 °C
Width14 mm
Depth8.4 mm
Height56.6 mm
Weight120 g
Number of products included1 pc(s)
Package width15.2 mm
Package depth50 mm
Package height230 mm
Package weight165 g
Sustainability certificatesRoHS
Harmonized System (HS) code85369010
