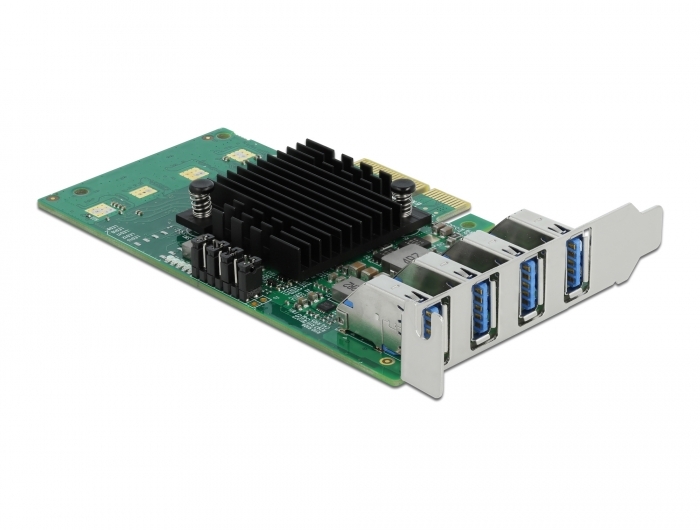

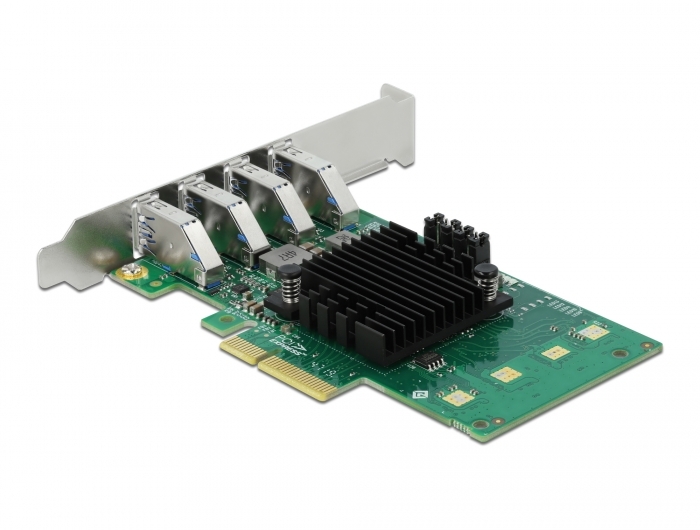

Delock PCI Express x4 Card to 4 x external USB 3.0 Quad Channel - Low Profile Form Factor

DELOCK

89048

Jauns

The PCI Express card by Delock expands a PC by four external USB 3.0 ports. Each port is supported by a single Renesas chip, which provides a high data transfer rate. Different USB devices such as docking stations, card reader, external enclosure etc. can be connected. Due to the vertical direction of the USB 3.0 ports, it is possible to install it into a low profile slot.

No additional power supply
Due to the on-board 5 V DC power supply control, the PCIe card does not require any additional power supply.

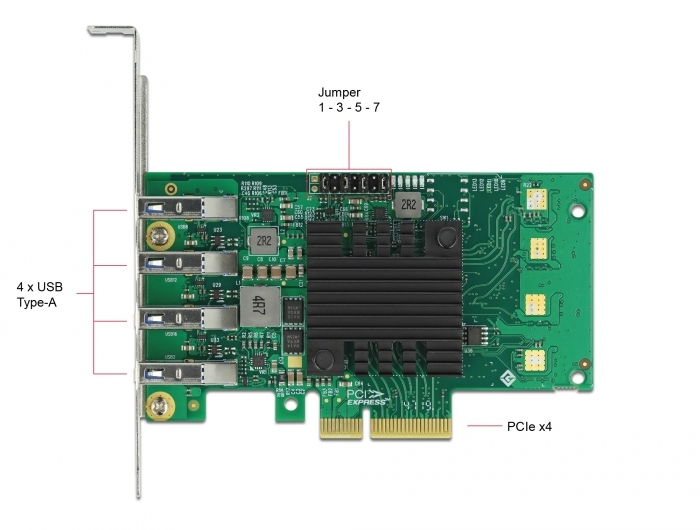

With the help of the four jumpers, the current can be limited to 900 mA or 1.5 A on each USB port.
System requirements:
• Linux Kernel 3.3 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2016
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
Specification:
• Connectors:
  external: 4 x USB 3.0 Type-A female
  internal: 1 x PCI Express x4, V2.0
• Chipset: 4 x Renesas uPD720202
• Data transfer rate up to:
  SuperSpeed 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• 4 x jumper to set 0.9 or 1.5 A output
• 9 x LED indicator
• Operating temperature: 0 °C ~ 60 °C
Package content:
• PCI Express card USB 3.0

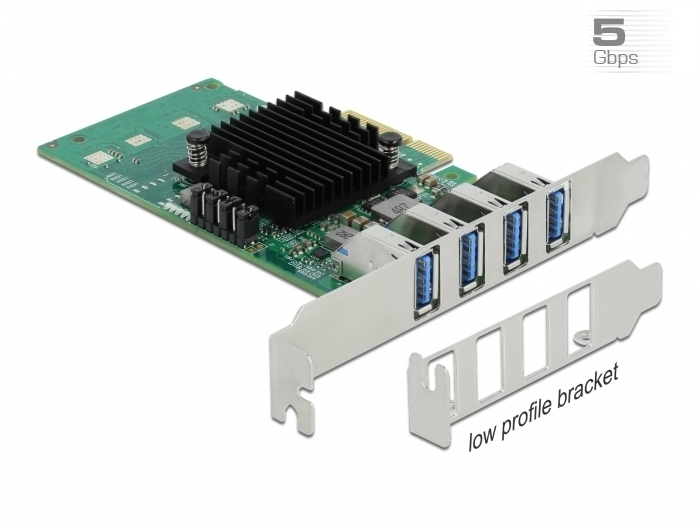

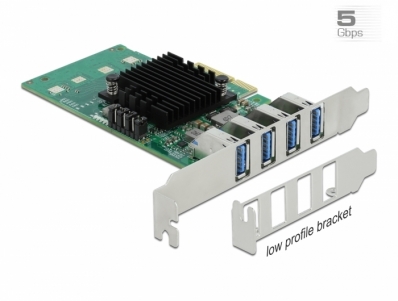

• Low profile bracket
• User manual
Data sheet:
http://www.delock.de/produkt/89048/pdf.html?sprache=en
