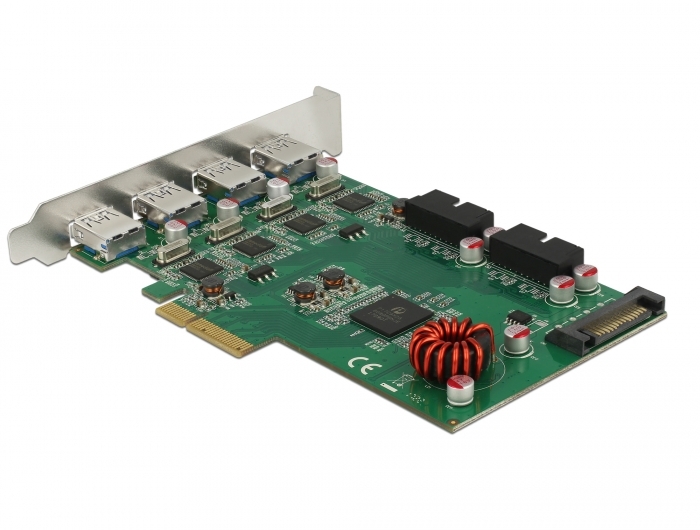

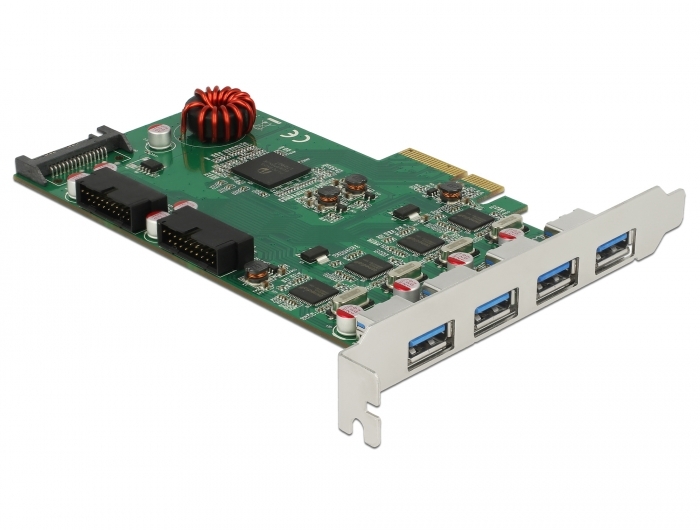

Delock USB 3.0 PCI Express Card to 4 x external Type-A + 2 x internal Pin Header

Kods 90306

Condition: Jauns

Vairāk informācijas

This PCI Express card by Delock expands the PC by four external USB 3.0 ports as well as two internal USB 3.0 ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.

Delock 8 Port USB 3.0 PCIe card

Up to four USB devices can be connected to the internal USB 3.0 pin header connectors simultaneously. Thus, together with the external ports, the card provides max. eight USB 3.0 ports.

System requirements:
• Linux Kernel 3.17 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
• Power supply with a free SATA power connector

Specification:

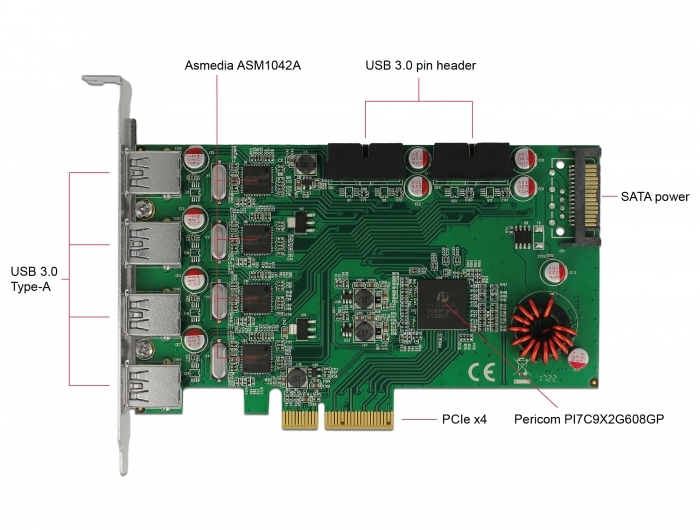

• Connectors:
  external:
  4 x USB 3.0 Type-A female
  internal:
  2 x 19 pin USB 3.0 pin header male
  1 x SATA 15 pin power connector
  1 x PCI Express x4, V2.0
• Chipset: Asmedia ASM1042A, Pericom PI7C9X2G608GP
• Data transfer rate up to:
  SuperSpeed 5 Gbps,
  Hi-Speed 480 Mbps,
  Full-Speed 12 Mbps,
  Low-Speed 1.5 Mbps
• Electrical power per port: max. 4.5 watt (5 V / 900 mA)

Package content:
• PCI Express card USB 3.0
• Driver CD
• User manual

Data sheet:
http://www.delock.de/produkt/90306/pdf.html?sprache=en
