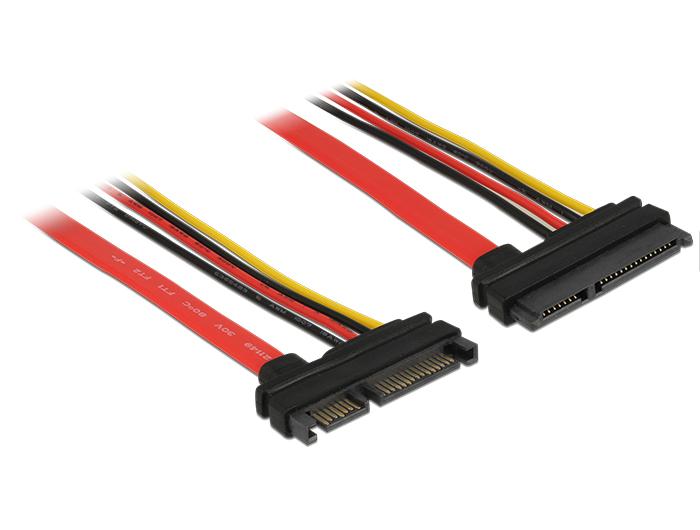

Extension cable SATA 6 Gbs 22 pin plug SATA 22 pin receptacle (5 V + 12 V) 30 cm

Description:
This SATA extension cable by Delock enables the extension of a SATA data and power interface and can be used to connect different devices with a 22 pin SATA connector.

Specification:
• Connector:
SATA 6 Gb/s 22 pin (7 pin data + 15 pin power) plug >
SATA 6 Gb/s 22 pin (7 pin data + 15 pin power) receptacle

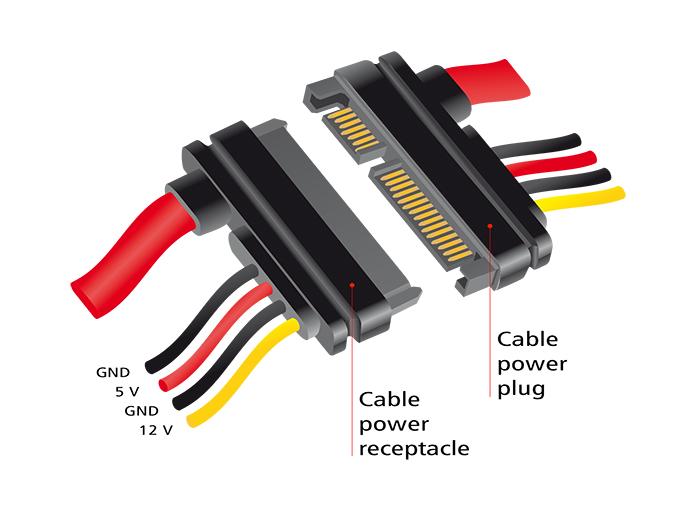

• Version with 4 power wires (yellow = 12 V, black = GND, red = 5 V)
• Data transfer rate up to 6 Gb/s
• Downwards compatible to SATA 1.5 Gb/s and 3 Gb/s
• Cable gauge:
26 AWG data line
18 AWG power line
• Length without connector: ca. 30 cm

System requirements:
• A free SATA 22 pin interface

Package content:
• SATA cable
