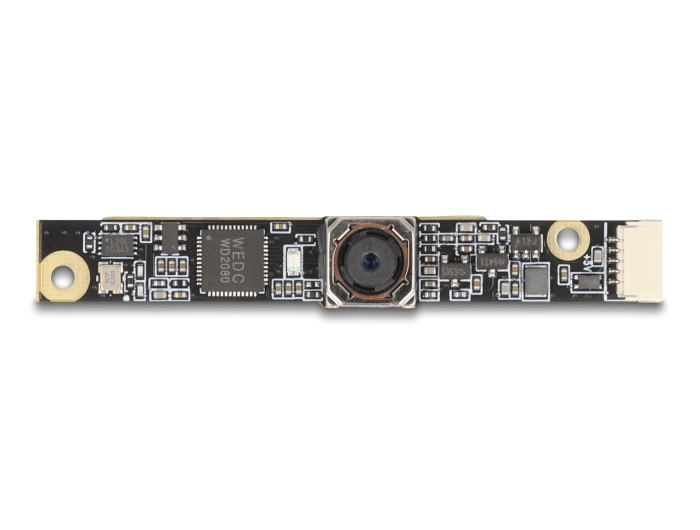

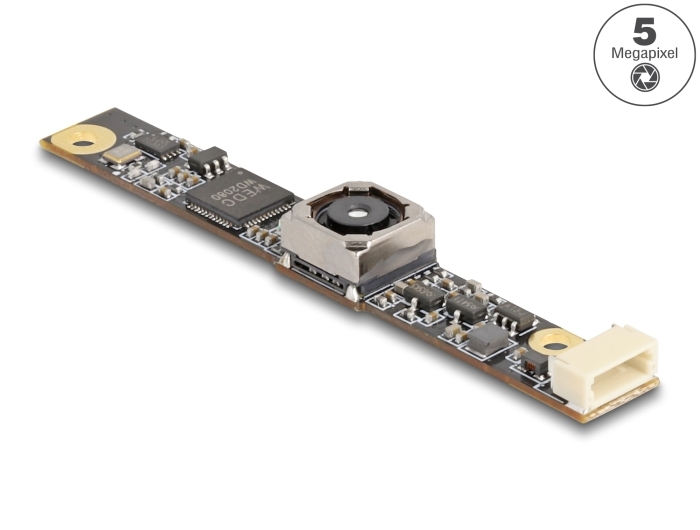

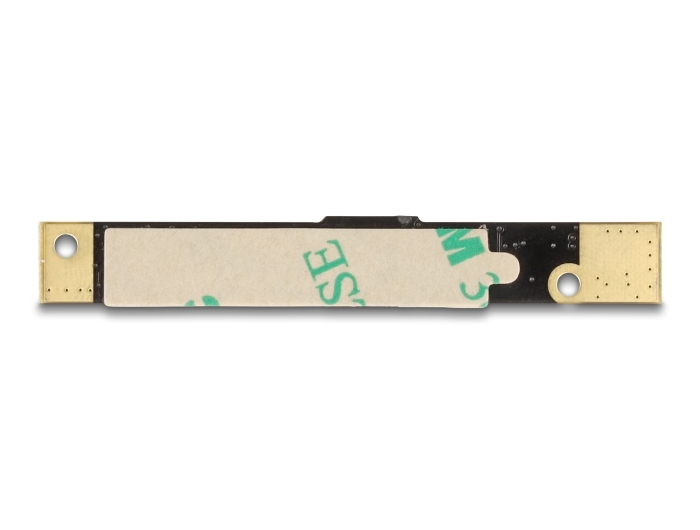

Delock USB 2.0 Camera Module 5 mega pixel IMX179QQH5-C Sony® Starvis™ 64° V51 auto focus

Kods 96361

Condition: Jauns

Vairāk informācijas

This USB 2.0 camera module by Delock offers in a compact construction a high resolution and low power consumption. It is ideally suited for installation in industrial components like IPCs, embedded systems, sensors and in device manufacture. The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module.

Note
The auto focus of this camera module can be deactivated and adjusted individually.

System requirements:
• Android 11.0 or above
• Chrome OS
• Linux Kernel 5.15 or above
• Mac OS 12.4 or above
• Windows 10/10-64/11

Specification:
• Connector: 1 x 5 pin USB 2.0 pin header female SMT, pitch 1.00 mm
• Resolution: 5.0 megapixel
• With optical IR filter
• Current consumption: sensor active: 110 mA ± 5 mA @ 640 x 480 pixel
• Operating voltage: 5 V DC
• Operating temperature: 5 °C ~ 50 °C
• Operating humidity: 20 ~ 80 %
• Sensor size: 1/3.2"
• Sensitivity: 0.6 V / lx s
• Signal-to-noise ratio (SNR): ca. 36 dB
• Dynamic range: 68 dB
• Auto focus: 0.2 m - infinite
• Aperture: F/2.8
• Frame rates:
  320 x 240 @ 30 Hz
  352 x 288 @ 30 Hz
  640 x 480 @ 30 Hz
  900 x 600 @ 30 Hz
  1280 x 720 @ 30 Hz
  1600 x 1200 @ 30 Hz
  1920 x 1080 @ 30 Hz
  2048 x 1536 @ 20 Hz
  2560 x 1440 @ 30 Hz
  2592 x 1944 @ 20 Hz
• Dimensions (LxWxH): ca. 60.0 x 9.0 x 5.8 mm

Package content:
• Camera Module
• CD with user manual

Data sheet:
http://www.delock.de/produkt/96361/pdf.html?sprache=en
