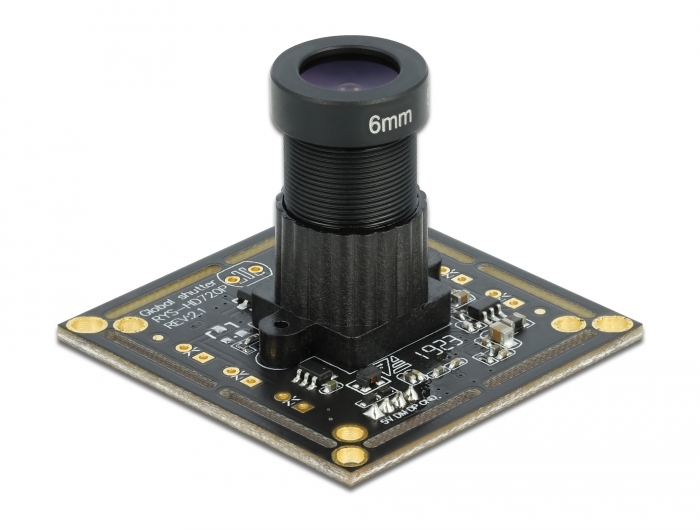

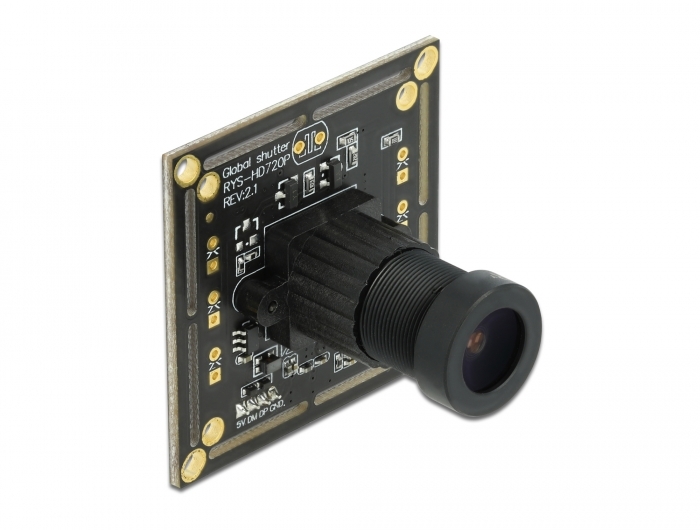

Delock USB 2.0 Camera Module with Global Shutter black / white 0.92 mega pixel 32° fix focus

Kods 96397

Condition: Jauns

Vairāk informācijas

This USB 2.0 camera module by Delock offers in a compact construction a high resolution and low power consumption. It is ideally suited for installation in industrial components like IPCs, embedded systems, sensors and in device manufacture. The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this module.

Global shutter
The module has a global shutter. This makes it predestined for images of fast moving objects.

System requirements:
• PC with UVC support
• Linux Kernel 2.6.15 and above with Video4Linux
• Windows 7/7-64/8.1/8.1-64/10/10-64
• DirectX 9.0c or above

Specification:

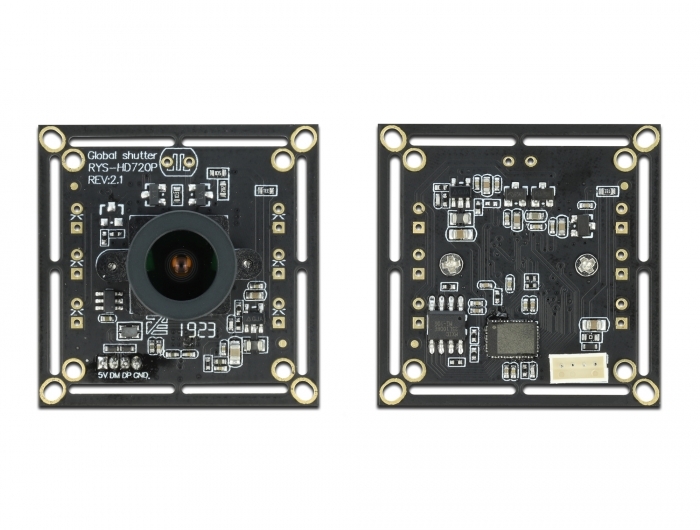

• Connector: 1 x 4 pin USB 2.0 pin header female SMT, pitch 1.5 mm
• Pin assignment:
Pin 1 - GND
Pin 2 - USB D+
Pin 3 - USB D-
Pin 4 - VCC
• Resolution: 0.92 megapixel
• With optical IR filter
• Maximum resolution: 1280 x 720
• Automatic image control functions including:
  Automatic exposure control (AEC)
  Automatic white balance (AWB)
  Automatic band filter (ABF)
  Automatic black-level calibration (ABLC)
• Image quality controls including gamma, sharpness (edge enhancement), lens
correction, white pixel canceling, noise canceling, and automatic 50 / 60 Hz luminance
detection
• Current consumption:
  sensor active: 100 mA ± 5 mA @ 1280 x 720
• Operating voltage: 5 V DC
• Operating temperature: 5 °C ~ 50 °C
• Operating humidity: 0 ~ 80 %
• Sensor size: 1/4"
• Fix focus: 1 m - infinite
• Aperture: F/2,5
• Frame rates: 120 fps @ 1280 x 720 - 160 x 120
• Dimensions (LxWxH): ca. 38 x 38 x 29 mm

Package content:
• Camera Module

Data sheet:
http://www.delock.de/produkt/96397/pdf.html?sprache=en
