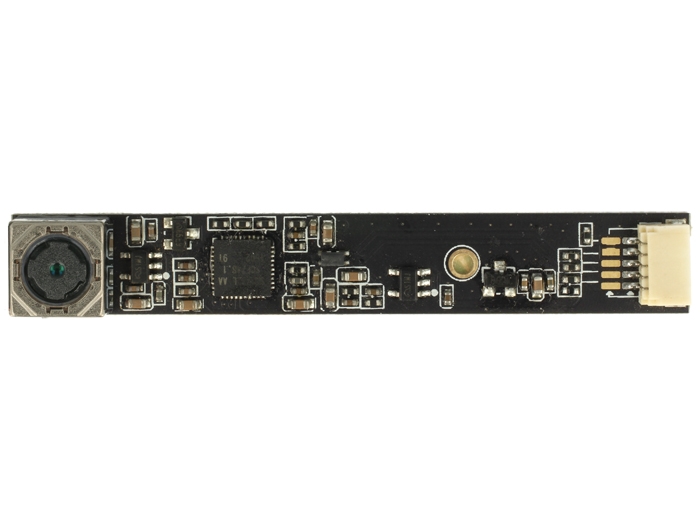

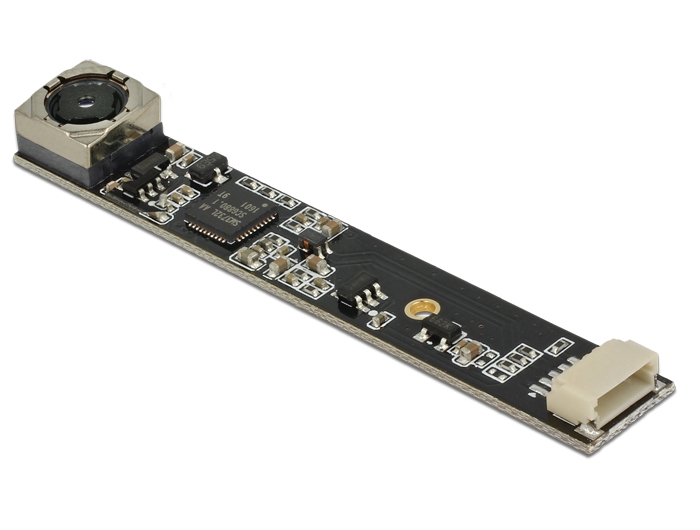

Delock USB 2.0 Camera Module 5.04 mega pixel 62° vertical edge auto focus

Kods 96381

Condition: Jauns

Vairāk informācijas

The USB 2.0 camera module by Delock offers a very compact design, high resolution and low power consumption. It is ideally suited for integration into devices. The use of a photosensitive sensor with back side illumination expands the scope of this module.

System requirements:
• Windows 7/8.1/10
• MS DirectX 9.0c and above
• Linux 2.6.15 and above with Video4Linux
• CPU minimum P4 1.4 GHz, 128 MB RAM

Specification:
• Connector: USB 2.0 5 pin SMT female SMT, 1 mm pitch
• Resolution: 5.04 mega pixel
• With optical IR filter
• Standard SCCB interface (I²C Bus)
• Output support for RAW RGB, RGB565/555/444, CCIR656,
   YUV422/420, YCbCr422 and compression
• Maximum resolution: QSXGA (2592 x 1944)
• Automatic image control functions including
   - Automatic exposure control (AEC)
   - Automatic white balance (AWB)
   - Automatic band filter (ABF)
   - Automatic black-level calibration (ABLC)
• Image quality controls including colour saturation, gamma,
   sharpness (edge enhancement), lens correction, white pixel canceling,
   noise canceling, and automatic 50/60 Hz luminance detection
• Supports scaling
• Power consumption:
   Sensor suspend: 90 mA
   Sensor active: 140 mA ± 5 mA @ 640 x 480 pixel
• Operating voltage: 5 V DC
• Operating temperature: 5 °C ~ 50 °C
• Relative humidity during operation: max. 80 %
• Sensor size: 1/4 inch
• Sensitivity: 0.6 V (lx s)
• Signal to noise ratio: 36 dB
• Dynamic range: 68 dB
• Auto focus: from 0.1 m
• Lens: F/2.8
• Frame rates:
   30 fps @ HVGA, VGA, XGA, 720p, QVGA
   15 fps @ UXGA, 1080p, QXGA
     7 fps @ 2592 x 1944
• Dimension (LxWxH): ca. 60 x 8 x 6.3 mm

Package content:
• Camera module

Data sheet:
http://www.delock.de/produkt/96381/pdf.html?sprache=en
