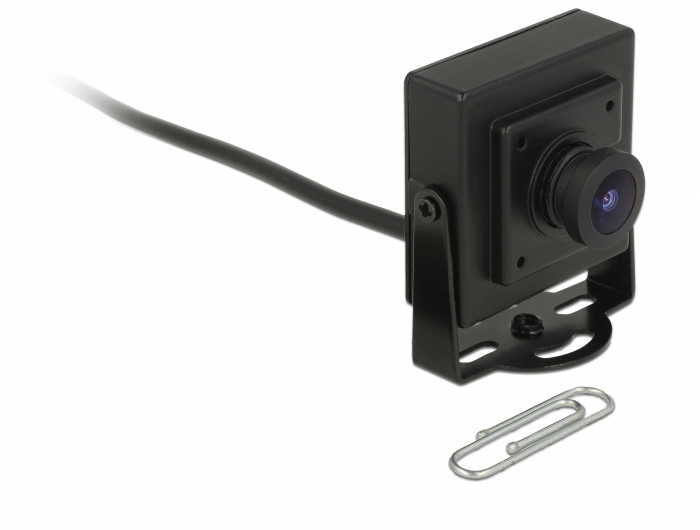

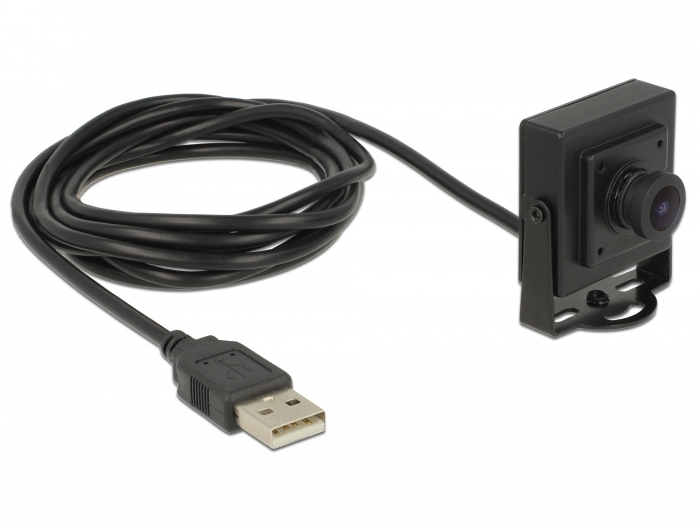

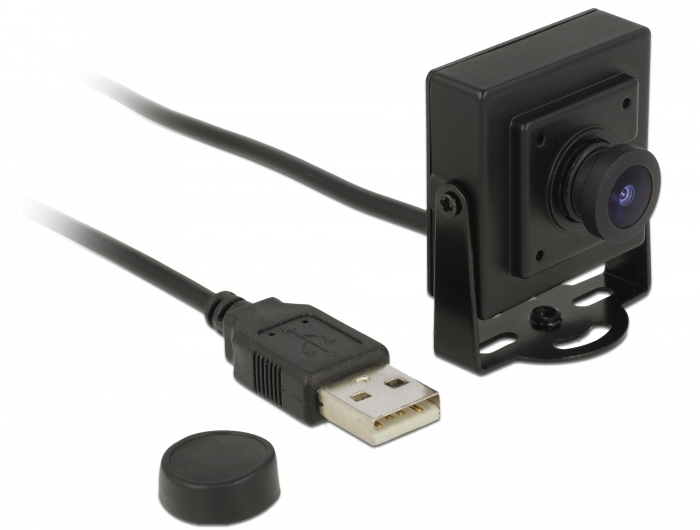

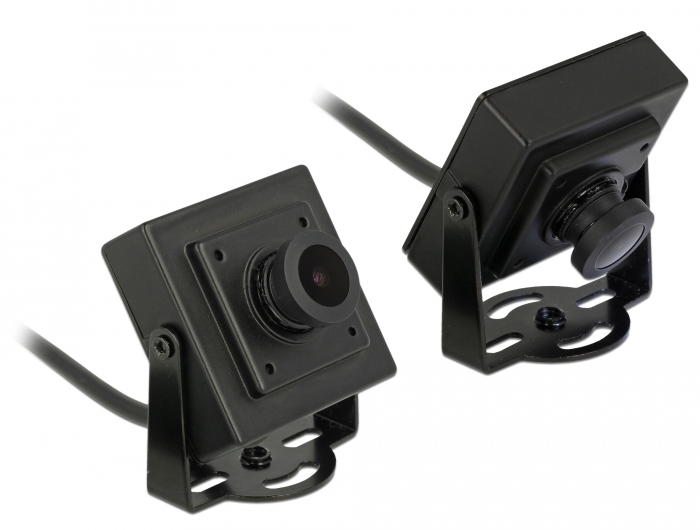

Delock USB 2.0 Camera 2.1 megapixel 100° fix focus

Kods 96378

Condition: Jauns

Vairāk informācijas

The USB 2.0 camera by Delock offers in a compact construction a high resolution and low power consumption. It is ideally suited for installation in industrial components like IPCs, embedded systems, sensors and in device manufacture. The use of a photosensitive sensor with back side illumination (BSI) expands the scope of this camera.

System requirements:
• Android 4.0 or above
• Linux Kernel 2.6 or above
• Mac OS 10.4.8 or above
• Windows XP/Vista/7/7-64/8.1/8.1-64/10/10-64
• PC with UVC support
• Minimum CPU P4 1.4 GHz, 512 MB RAM

Specification:
• Connector: 1 x USB 2.0 Type-A male
• Resolution: 2.1 megapixel
• With optical IR filter
• Output support for YUY2, MJPG
• Maximum resolution: 1080p (1920 x 1080)
• Automatic image control functions including:
  Automatic exposure control (AEC)
  Automatic white balance (AWB)
  Automatic band filter (ABF)
  Automatic black-level calibration (ABLC)
• Image quality controls including colour saturation, gamma, sharpness (edge
enhancement), lens correction, white pixel canceling, noise canceling, and automatic
50 / 60 Hz luminance detection
• Supports scaling
• Current consumption:
  sensor active: 430 mA ± 5 mA @ 640 x 480 pixel
• Operating voltage: 5 V DC
• Operating temperature: 0 °C ~ 60 °C
• Sensor size: 1/2.7"
• Sensitivity: 0.6 V (lx s)
• Signal-to-noise ratio (SNR): ca. 39 dB
• Dynamic range: 69 dB
• Fix focus: 5 cm - 100 m
• Lens: F/2.7
• Frame rates:
  30 fps @ 1920 x 1080, 1280 x 800, 1280 x 720, 1024 x 768, 840 x 480, 640 x 360,
640 x 480, 352 x 288
  20 fps @ 848 x 480, 800 x 600
  10 fps @ 1280 x 800, 1280 x 720, 1024 x 768
• Dimensions (LxWxH): ca. 35.8 x 35.8 x 23.5 mm
• Cable length without connector: ca. 1.95 m

Package content:
• Camera
• CD with user manual

Data sheet:
http://www.delock.de/produkt/96378/pdf.html?sprache=en
