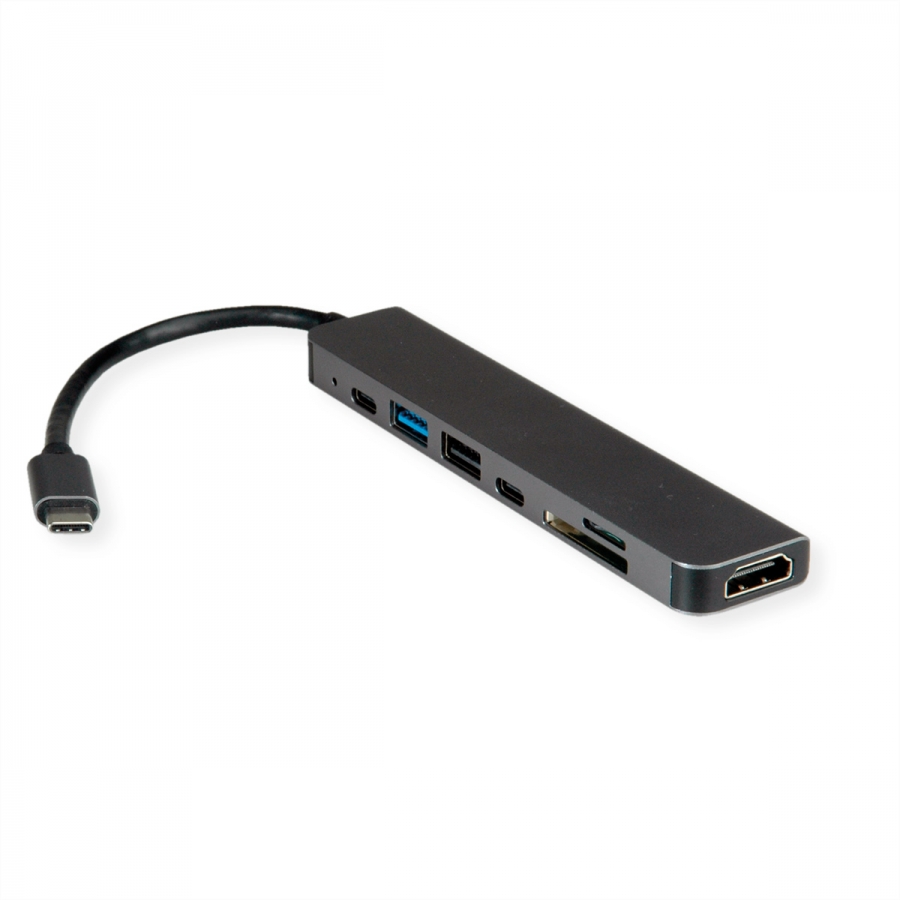

VALUE Dockingstation Type C, 1x 4K60 HDMI, 2x USB 2.0 (A+C) + 1x USB 3.2 Gen1 (A), 1x Type C (Power Delivery), 1x SD/TF

VALUE

12.99.1136

Jauns

Connect your MacBook, Ultrabook, notebook/laptop via USB type C to permanently installed devices - such as an HDMI monitor (with 4K60 resolution) - and via various USB ports to a keyboard and an external hard disk, for example, while simultaneously charging your device via the USB type C PD port. You can also read SD or TF cards.

  • USB 3.2 Gen 2 Type C docking station for e.g. MacBook, Ultrabook, notebook/laptop or PC
  • Connect your device with USB Type C port to any HDMI display or projector
  • This docking stationallows you to mirror or extend your display to your HDMI-enabled TV or display
  • Maximum resolution: 3840x2160 @60Hz
  • Portable design
  • No power adapter required
  • USB Type C PD: Power Delivery Function for charging of devices via the additional Type C connection
  • Connectors: HDMI Female 4K60Hz and Type C Male; additionally, 2x USB2.0 (A+C), 1x USB 3.0 A Female and 1x USB Type C (PD)
  • 1x SD/TF Card Reader
  • Cable length: ca. 10 cm

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).



ManufacturerVALUE
Product groupAdapters, Terminators, Converters
Product typeNotebook-Docking-Station
Colourblack / gray
Length0.1 m
Scope of deliveryDocking Station
Max. resolution3840 x 2160 @60Hz (4K, UHD-1)
Side 1 connection (PC)USB Type C
Side 2 connection (Peripherals)1x HDMI, 2x USB2.0 (A+C), 1x USB3.2Gen1 Type A, 1x USB Ty...
Side 1 Connector TypeUSB Type C (USB-C)
Side 1 Connector GenderMale
Side 2 Connector TypeHDMI Type A
Side 2 Connector GenderFemale
Area of applicationExternal
Technical particularityPower Delivery Function
Height10 mm
Width28 mm
Depth128 mm
Weight47 g
Height of packaging (single piece)20 mm
Width of packaging (single piece)40 mm
Depth of packaging (single piece)120 mm
Package weight (single piece)0.08 kg
Current catalog editionC24-05.09
