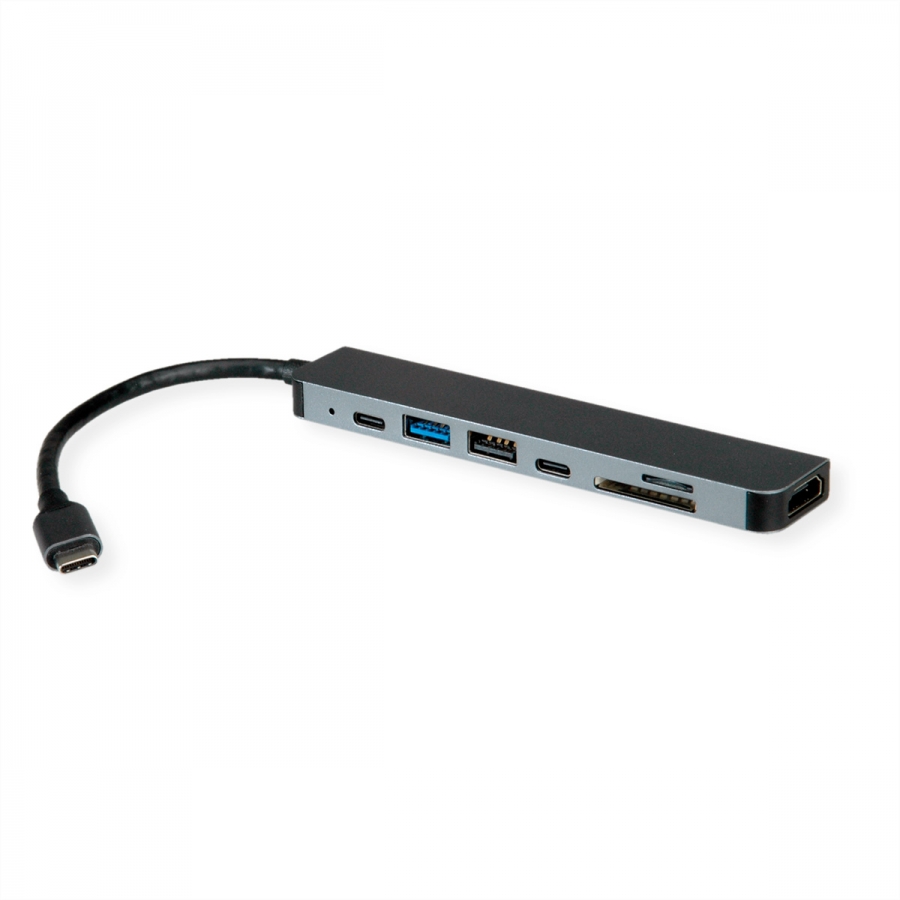

The USB Type C Docking Station provides your MacBook, Ultrabook, Notebook or Laptop with 1x 4K HDMI, 1x USB 3.0 Type A, 1x USB 2.0 Type A, 1x USB 2.0 Type C, 1x SD/Micro SD, 1x USB Type C PD (Power Delivery).
- Plug & Play
- Aluminium housing in space grey
- Multiport Docking Station with HDMI connection, allows the expansion of a display or mirroring to another monitor, television or beamer.
- Max. Resolution: 3840x2160 at 60Hz
- Compact and flat design.
- System requirements: Windows 7/8/10 or MacOS X10.2 and higher
Connection to the mobile device:
Connections for peripheral devices:
- 1x HDMI 4K/@60Hz video output: Mirror or expand your screen to a TV, monitor or projector.
- 1x USB 3.0 / 3.2 Gen 1 type A port (data transfer rate up to 5Gbit/s), for connecting a keyboard, mouse, HDD, SSD, etc.
- 1x USB 2.0 type A
- 1x USB 2.0 type C
- 1x SD/MicroSD card reader
- 1x USB Type C PD (Power Delivery, max. 60W)
Remark: Support of "Alternate Mode (DP Alt Mode)" required
Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).
|
Manufacturer | ROLINE | Product group | Adapters, Terminators, Converters | Product type | Notebook-Docking-Station | Colour | grey | Length | 0.15 m | Scope of delivery | Docking Station | Max. resolution | 3840 x 2160 @60Hz (4K, UHD-1) | Side 1 connection (PC) | USB Type C | Side 2 connection (Peripherals) | 2x USB 3.2 Gen 1 socket, 1x HDMI socket, 1x Gigabit Ethernet | Side 1 Connector Type | USB Type C (USB-C) | Side 1 Connector Gender | Male | Side 2 Connector Type | USB 3 Type A | Side 2 Connector Gender | Female | Material | Aluminum | Height | 10 mm | Width | 28 mm | Depth | 128 mm | Weight | 45 g | Height of packaging (single piece) | 10 mm | Width of packaging (single piece) | 30 mm | Depth of packaging (single piece) | 120 mm | Package weight (single piece) | 0.08 kg | Current catalog edition | C24-05.15 |
|
