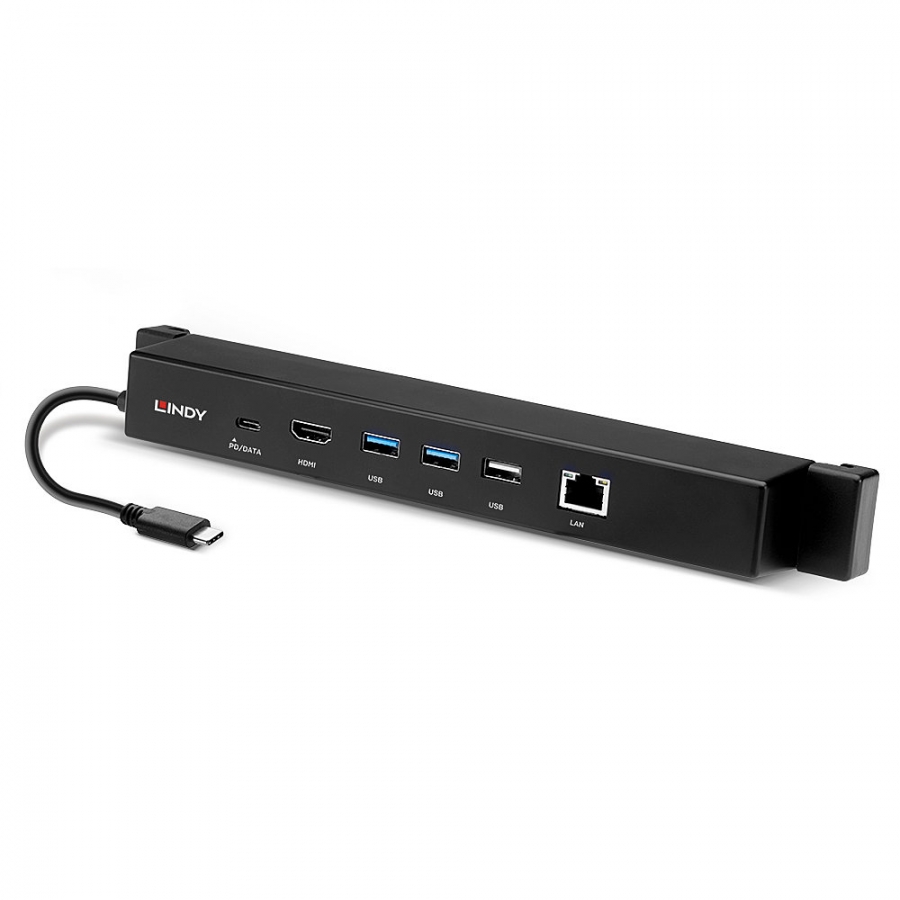

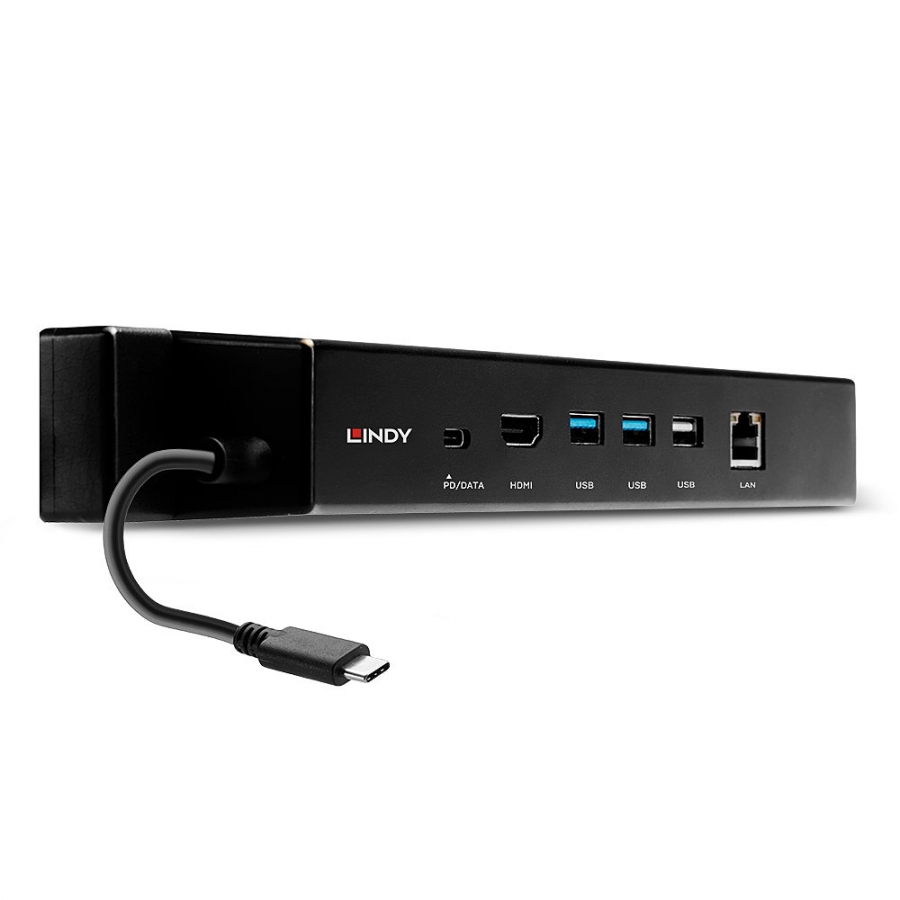

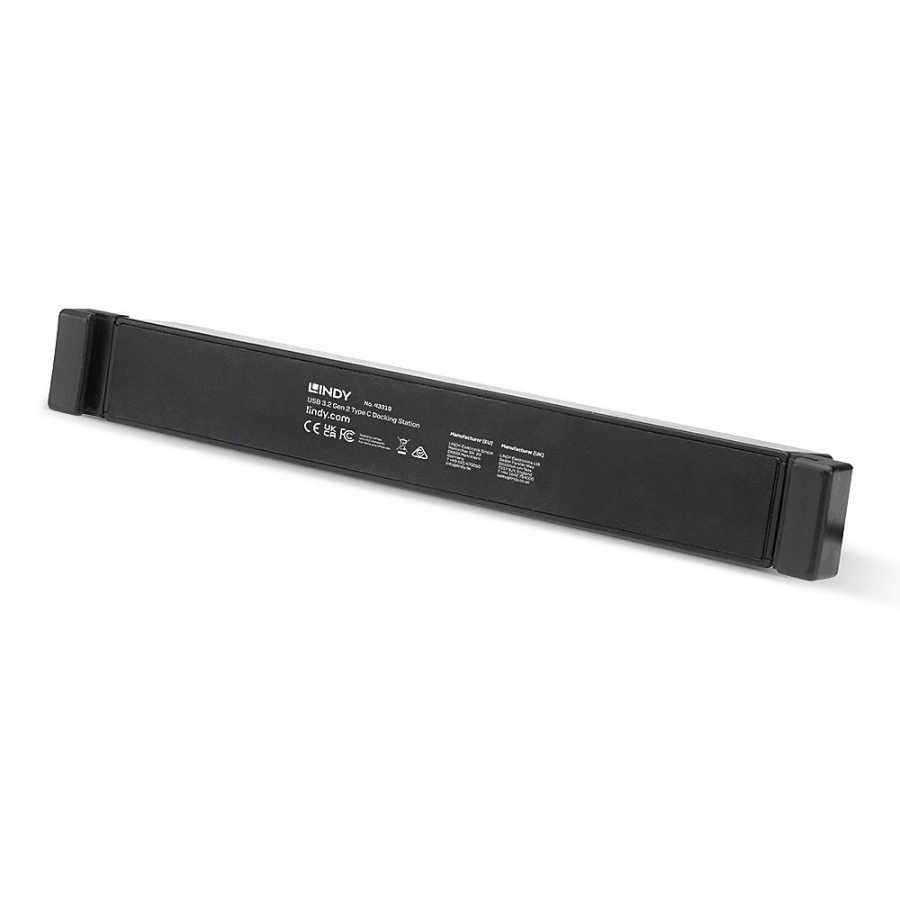

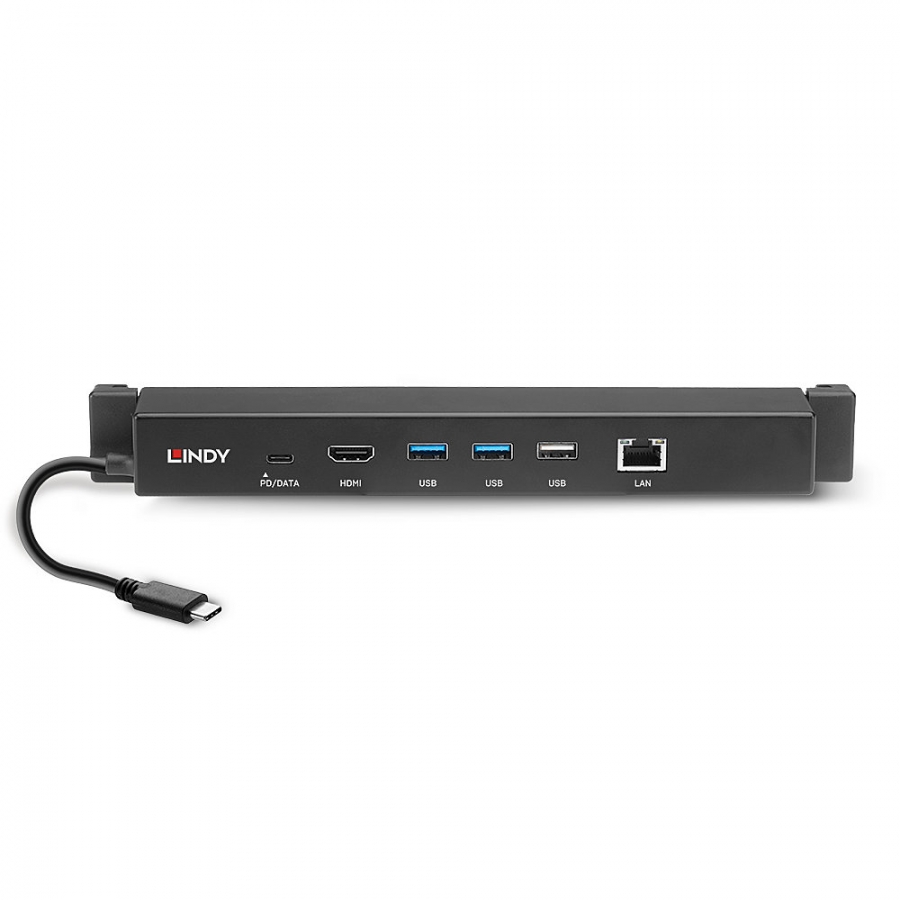

LINDY USB 3.2 Gen 2 Typ C Mini Docking Station

Lindy

43319

Jauns

Connects to a tablet, MS Surface* or Ultrabook via USB Type C cable Adds 3 USB Type A ports (2x USB 3.2 Gen 2 up to 10Gbps, 1x USB 2.0), a USB Type C port for data and Power Delivery, an HDMI and a Gigabit Ethernet port Conveniently attaches to your tablet/ultrabook using a streching arm design Supports resolutions up to 4K Ultra HD 30Hz 2 year warrantyThe Lindy USB 3.2 Gen 2 Type C Docking Station is a convenient solution for connecting an ultra-high definition HDMI display and various peripherals to USD Type C devices such as tablets, ultrabooks or MS Surfaces*.                                                                                                                                                                                                       With its unique stretching arm design the USB 3.2 Gen 2 Type C Docking Station connects directly to the MS Surface, tablet or ultrabook, helping to reduce desk clutter whilst giving you access to a variety of common office devices. You can securely attach the Docking Station to the Kick Stand of an MS Surface or to the screen bezel of an ultrabook (max width 32cm, depth 2.7mm).This Docking Station has been developed to provide simple, convenient access to the most commonly used interfaces, providing access to a 2 port USB 3.2 hub with max. data rates of 10Gbps, a USB 2.0 hub (max. 480Mbps) and Gigabit LAN via its integrated USB 3.2 Type C Cable. The Docking Station features a combined USB Type C data & power port which supports Power Delivery up to 100W while transmitting data through a single cable. It also enables the connection of an HDMI display with resolutions of up to 4K Ultra HD (3840x2160p 30Hz). The two USB 3.2 Gen 2 Type A ports also feature the Battery Charging Standard 1.2,  which is able to deliver 5V and up to 1.5A for faster charging compared to a standard USB port.* compatible with Microsoft Surface Go, MS Go 2, MS Go 3, MS Pro 7, MS Pro 7+, MS Pro XInformation about USB 3.0, 3.1 & 3.2USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface. USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
HDMI ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
USB Power DeliveryY
USB Power Delivery up to100 W
HDCPY
HDCP version1.4/2.2
Ethernet LANY
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates1000 Mbit/s
Product colourBlack
Data transfer rate0.48 Gbit/s
Maximum digital resolution3840 x 2160 pixels
Maximum refresh rate30 Hz
Housing materialPlastic
CertificationCE, FCC, CP65
Power source typeUSB
Output voltage20 V
Output current5 A
Operating temperature (T-T)-20 - 70 °C
Storage temperature (T-T)-20 - 85 °C
Operating relative humidity (H-H)20 - 80%
Sustainability certificatesREACH, RoHS
Width223 mm
Depth32 mm
Height33 mm
Weight160 g
Package width280 mm
Package depth110 mm
Package height45 mm
Package weight250 g
ManualY
Harmonized System (HS) code84733020
