Delock USB Dual Docking Station for 2 x SATA HDD / SSD with Clone Function and Card Reader + additional USB Port

Kods 64183

Condition: Jauns

Vairāk informācijas

This docking station by Delock enables an external connection of up to two 2.5″ or 3.5″ SATA HDDs or SSDs through the USB interface. This solution does not require an external enclosure since the drive can be plugged into the docking station directly. Furthermore the clone function enables to copy the content of one HDD to another without using a PC.

Integrated Card Reader
In addition, the docking station with integrated card reader expands a PC or laptop by an SD and a Compact Flash slot via the USB connection.

Additional USB Type-A port
Thanks to the additional USB Type-A female, no USB socket is blocked on your computer, because it can still be used for USB memory or other USB devices.

System requirements:
• Android 11.0 or above
• Chrome OS
• Linux Kernel 5.11 or above
• Mac OS 12.0.1 or above
• Windows 8.1/8.1-64/10/10-64/11
• PC or laptop with a free USB Type-A port

Specification:
• Connectors:
  1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-B female
  2 x SATA 6 Gb/s 22 pin receptacle
  1 x SD slot
  1 x Compact Flash slot
  1 x SuperSpeed USB 5 Gbps (USB 3.2 Gen 1) Type-A female
  1 x DC jack
• Chipset: VIA VL813, JMicron JMS561U
• Function key:
  1 x Clone button
  1 x On / Off switch
• For 2.5″ and 3.5″ SATA HDD / SSD
• Suitable for all SATA HDDs up to SATA 6 Gb/s
• It can only be used one memory card, not both at the same time
• Data transfer rate up to 5 Gbps
• LED indicator for power, access and copy status
• Dimensions (LxWxH): ca. 153 x 110 x 62 mm
• Plug & Play

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
• Output: 12.0 V / 3.0 A
• Ground outside, plus inside
• Dimensions:
  inside: ø ca. 2.1 mm
  outside: ø ca. 5.5 mm
  length: ca. 10 mm

Package content:
• Docking station

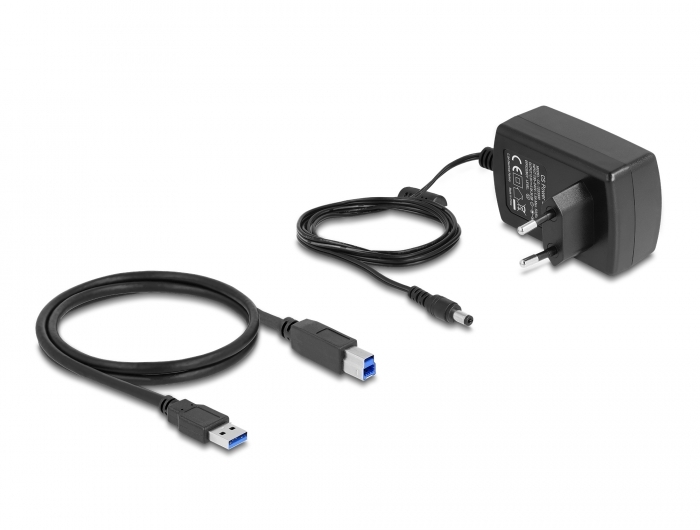

• Cable USB Type-A male to Type-B male, length ca. 80 cm
• External power supply 12.0 V / 3.0 A
• User manual
