ROLINE USB Type C docking station, 4K HDMI, 1x VGA, 2x USB 3.2 Gen 1 ports, 1x S

ROLINE

12.02.1022

Jauns

Docking Station for Macbooks, Ultrabooks or Notebooks/Laptops - offers HDMI in 4K, 1x VGA, two USB 3.0 / 3.2 Gen 1 ports, SD/MicroSD card reader, USB type C PD (Power Delivery) and one port for Gigabit Ethernet. You get a fast and easy connection to the peripherals you use every day, including VGA and HDMI ports with a maximum resolution of up to 3840x2160 @60Hz!

  • Plug & Play
  • aluminium casing

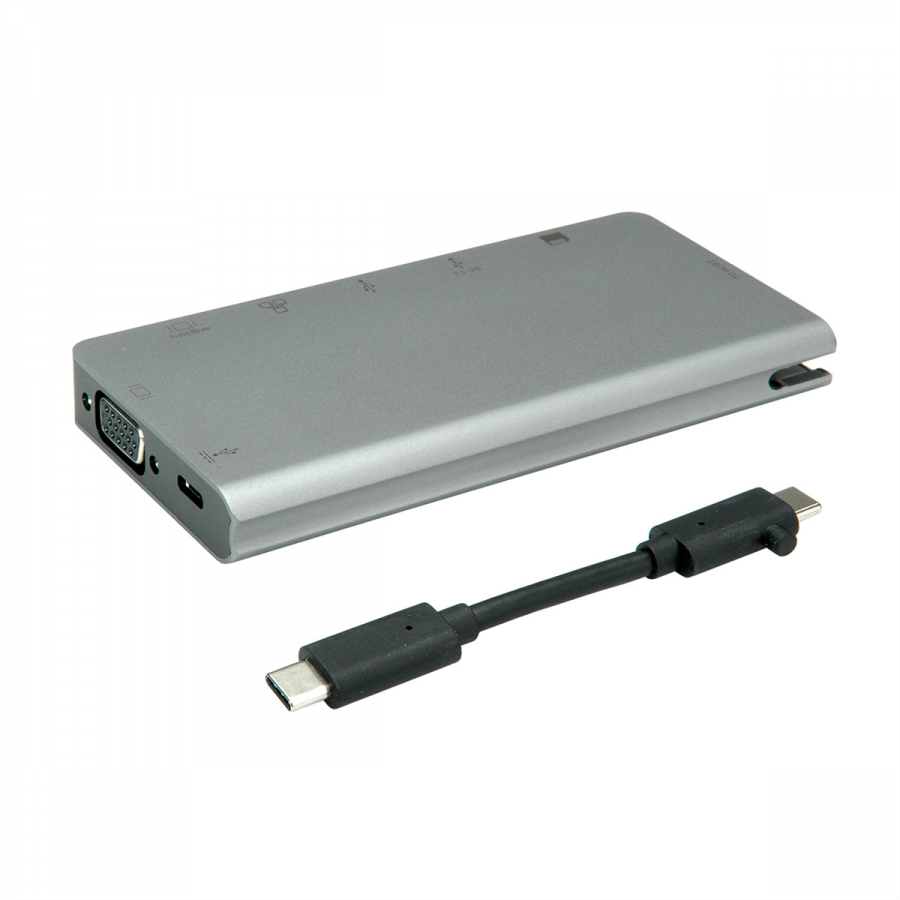

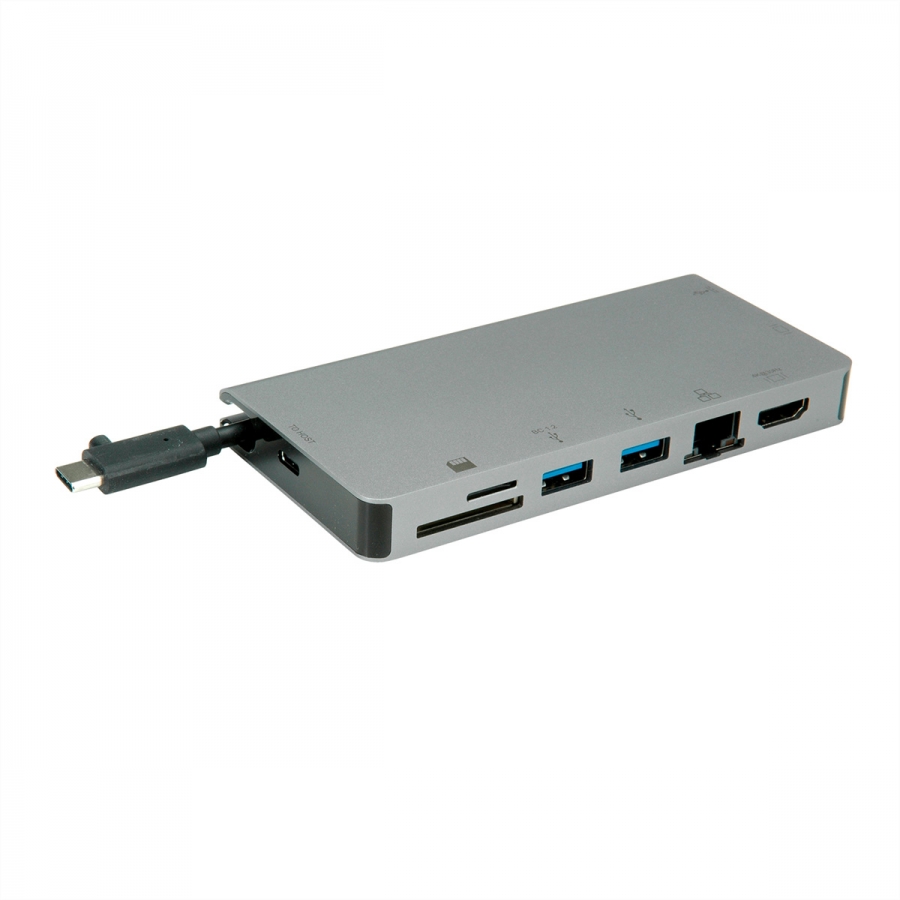

  • Small, compact design with a small special feature: the included USB Type C connection cable can be easily stowed in the docking station - it is therefore neither lost nor damaged during transport.
  • One of the two USB 3.0 / USB 3.2 Gen 1 Type A ports supports Battery Charge v1.2 (5V 1.5A) to easily power even larger hard drives

Connection to the device:
  • 1x USB 3.1 / USB 3.2 Gen 2 Type C BU

Connection for peripheral devices:
  • 1x HDMI and 1x VGA port video output: Mirror or expand your screen to a TV, monitor or projector with up to 3840x2160 @60Hz resolution.
  • 2x USB 3.0 / USB 3.2 Gen 1 type A ports (data transfer rate up to 5Gbit/s), e.g. for connecting a wired keyboard or mouse, USB HDD/SSD, etc.
  • 1x SD/TF card reader
  • 1x USB Type C BU, PD (Power Delivery)
  • 1x RJ45 for Gigabit Ethernet

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).



ManufacturerROLINE
Product groupAdapters, Terminators, Converters
Product typeNotebook-Docking-Station
Colourgrey
Scope of deliveryDocking Station
Side 1 connection (PC)USB Type C F
Side 2 connection (Peripherals)1x HDMI, 1x VGA, 2x USB 3.0 / USB 3.2 Gen 1 Type A, 1x SD/TF
Side 1 Connector TypeUSB Type C (USB-C)
Side 1 Connector GenderMale
Side 2 Connector TypeHDMI Type A
Side 2 Connector GenderFemale
Area of applicationExternal
Current catalog editionC20-05.12
