> >>Equip DisplayPort 1.4 St/St 30m 8K/60Hz komp.HDCP schwarz
Equip DisplayPort 1.4 St/St 30m 8K/60Hz komp.HDCP schwarz
Previous Next

Equip DisplayPort 1.4 St/St 30m 8K/60Hz komp.HDCP schwarz

EQUIP

119443

Jauns

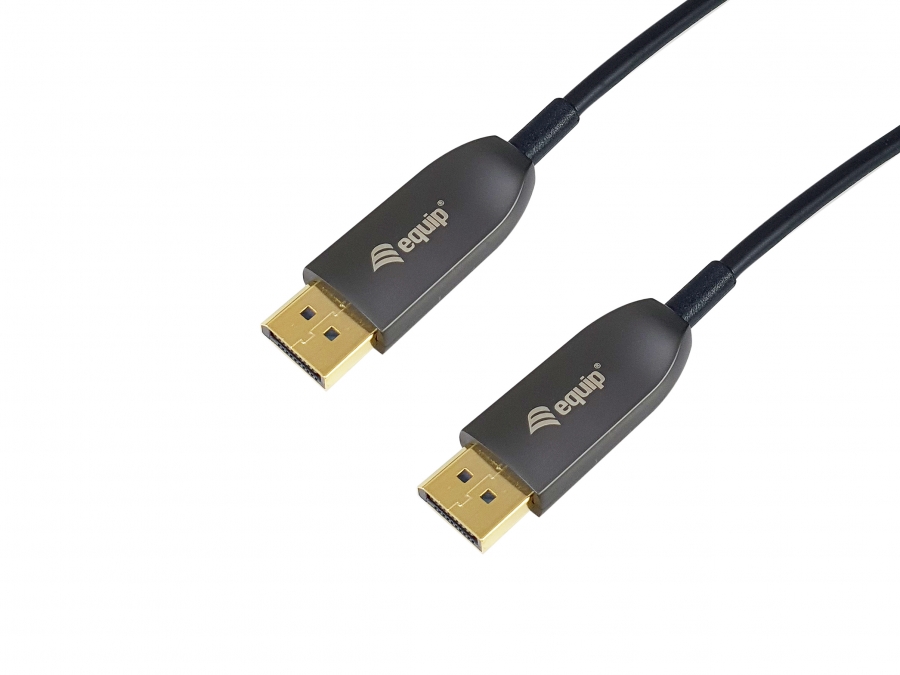

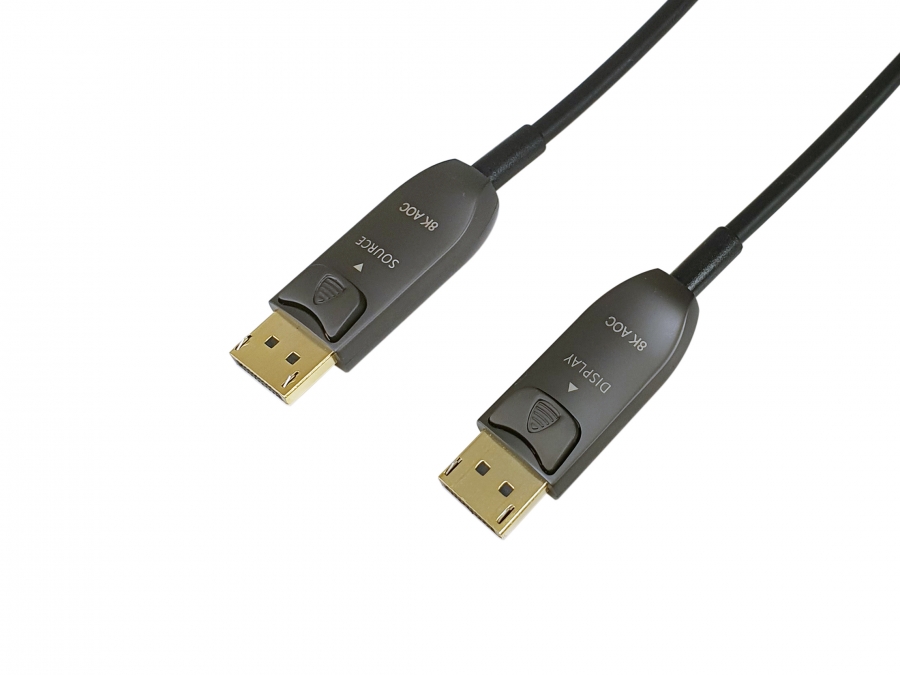

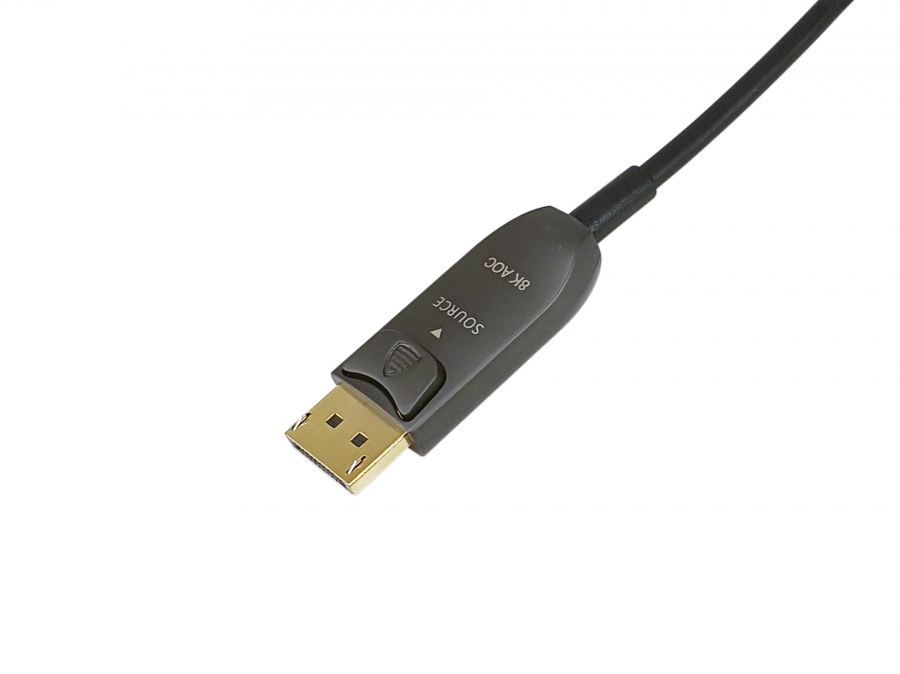

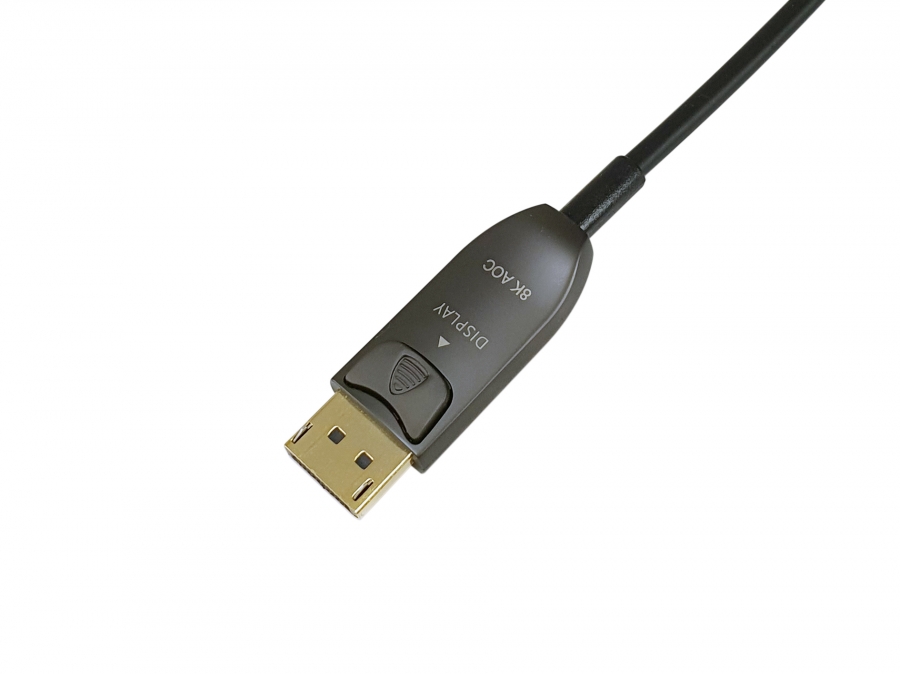

The equip 119443 DisplayPort 1.4 Active Optical Cable (AOC) is a high-performance cable used for transmitting digital video signals over long distances. Unlike copper cables, which have limitations on how far they can transmit signals without signal degradation, DisplayPort 1.4 AOC can transmit data up to 100 meters without the need for additional signal boosters or repeaters.

The cable is designed to support the DisplayPort 1.4 standard, which offers high bandwidth and supports resolutions up to 8K at 60Hz or 4K at 120Hz. DisplayPort 1.4 AOC also supports High Dynamic Range (HDR) and Display Stream Compression (DSC), which allows for even higher resolutions and refresh rates.

The active component of the cable is a microchip embedded in the connector that converts the electrical signals to optical signals, which are then transmitted over the optical fiber. The cable is also immune to electromagnetic interference (EMI) and radio frequency interference (RFI), making it ideal for use in environments with high levels of electromagnetic interference.


Cable length30 m
Connector 1DisplayPort
Connector 2DisplayPort
Connector 1 genderMale
Connector 2 genderMale
Maximum resolution7680 x 4320 pixels
Product colourBlack
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
DisplayPort version1.4
Supported graphics resolutions3840 x 2160, 2560 x 1440, 5120 x 2880, 7680 x 4320, 1920 x 1200 (WUXGA)
Maximum refresh rate120 Hz
HDCPY
HDCP version2.2
Display Stream Compression (DSC)Y
High Dynamic Range (HDR) supportedY
Bandwidth32400 MB/s
Multi-Stream Transport (MST)Y
Country of originChina
Sustainability complianceY
Sustainability certificatesRoHS, CE
Weight860 g
Quantity per pack1 pc(s)
Package width205 mm
Package depth65 mm
Package height205 mm
Package typeBox
Package weight1.08 kg
Master (outer) case width300 mm
Master (outer) case length230 mm
Master (outer) case height460 mm
Master (outer) case gross weight10.8 kg
Products per master (outer) case10 pc(s)
