> >>Delock DisplayPort extension cable male 90° left angled to female 8K 60 Hz 3 m
Delock DisplayPort extension cable male 90° left angled to female 8K 60 Hz 3 m

Delock DisplayPort extension cable male 90° left angled to female 8K 60 Hz 3 m

DELOCK

87076

Jauns

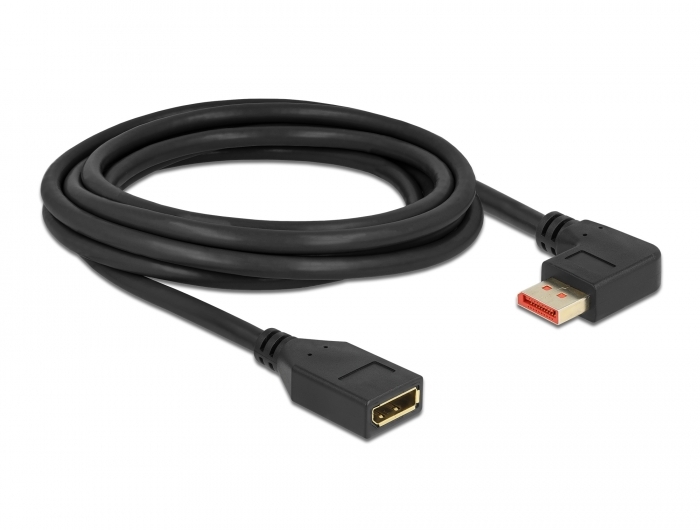

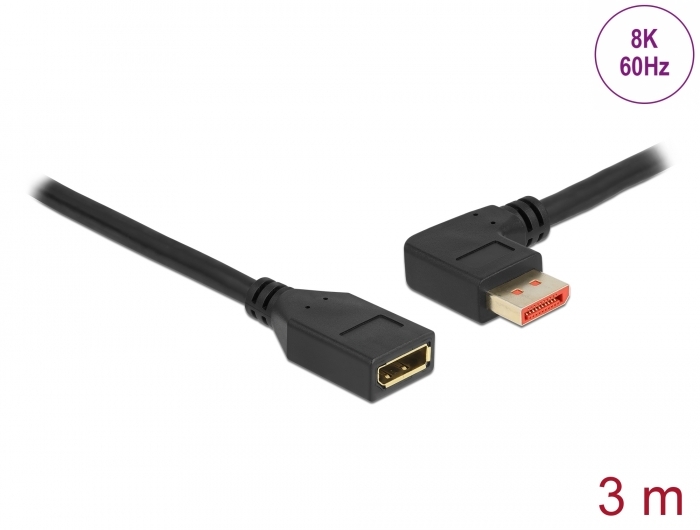

This DisplayPort cable by Delock enables the extension of a DisplayPort connection. The triple shielded cable supports a resolution of up to 8K Ultra HD ( 7680 x 4320 @ 60 Hz) and is downwards compatible to 4K Ultra HD.
System requirements:
• A free DisplayPort interface
Specification:
• Connectors:
  1 x DisplayPort male angled >
  1 x DisplayPort female
• DisplayPort 1.4 specification
• Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
• Pin 20 is connected (supports 3.3 V)
• Cable gauge: 28 AWG
• Cable diameter: ca. 7 mm
• Copper conductor
• Triple shielded cable
• Contacts gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 32.4 Gbps
• Resolution up to:
  Display with DSC support:
   7680 x 4320 @ 60 Hz
   5120 x 2880 @ 120 Hz
   3840 x 2160 @ 240 Hz
  Display without DSC support:
   7680 x 4320 @ 30 Hz
   5120 x 2880 @ 60 Hz
   3840 x 2160 @ 120 Hz
  (depending on the system and the connected hardware)
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR (High Dynamic Range)
• Supports HDCP 1.4 and 2.3
• Supports HBR3 (8.1 Gbps) data rate
• Up to 32 audio channels for speakers
• Up to 1536 kHz audio sampling rate
• Supports colour sampling in 4:4:4, 4:2:2 and 4:2:0 format
• Colour: black
• Length incl. connectors: ca. 3 m
Package content:
• DisplayPort cable
Data sheet:
http://www.delock.de/produkt/87076/pdf.html?sprache=en
