> >>Delock DisplayPort 1.2 cable female to female panel-mount 4K 60 Hz 2 m
Delock DisplayPort 1.2 cable female to female panel-mount 4K 60 Hz 2 m

Delock DisplayPort 1.2 cable female to female panel-mount 4K 60 Hz 2 m

DELOCK

87101

Jauns

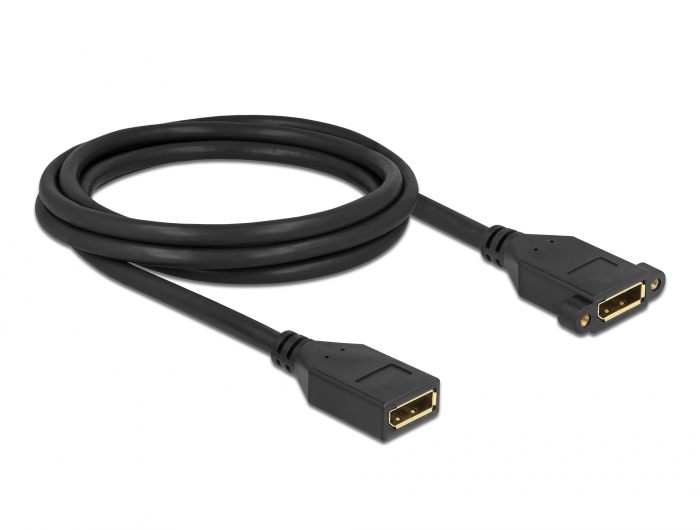

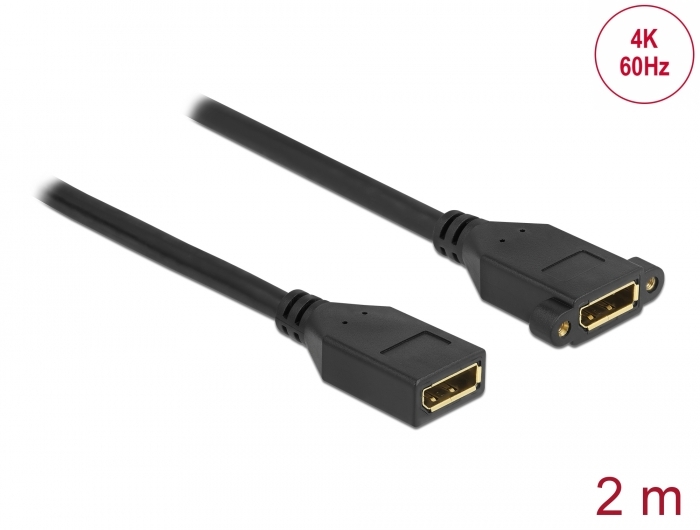

This cable by Delock can be used to extend a DisplayPort connection and to connect various devices. The female port can be attached with two screws, e.g. to a slot bracket, a cable duct or an enclosure with the corresponding opening. In this way, it is possible to install a DisplayPort connector in an easily accessible position.
System requirements:
• A free DisplayPort interface
Specification:
• Connectors:
  1 x DisplayPort female >
  1 x DisplayPort female panel-mount
• DisplayPort 1.2 specification
• Pin 20 is connected (supports 3.3 V)
• Screw type: M3
• Screw distance: 27 mm
• Cable gauge: 28 AWG
• Cable diameter: ca. 7 mm
• Copper conductor
• Triple shielded cable
• Contacts gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 21.6 Gbps
• Resolution up to 3840 x 2160 @ 60 Hz
  (depending on the system and the connected hardware)
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Colour: black
• Length incl. connectors: ca. 2 m
Package content:
• DisplayPort panel-mount cable

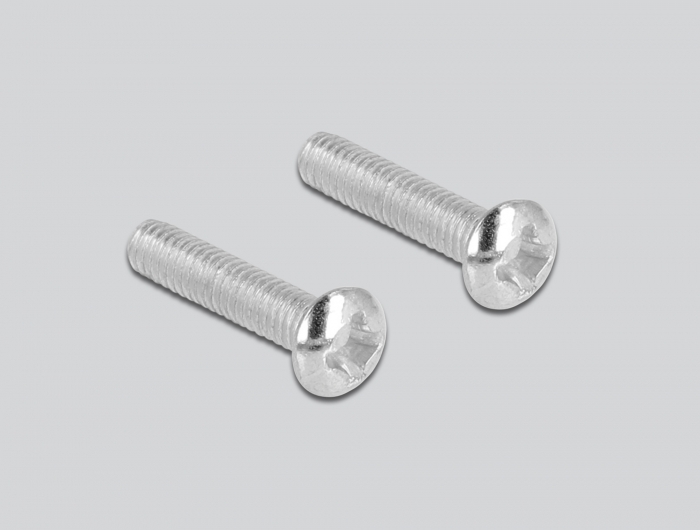

• 2 x screw
Data sheet:
http://www.delock.de/produkt/87101/pdf.html?sprache=en
