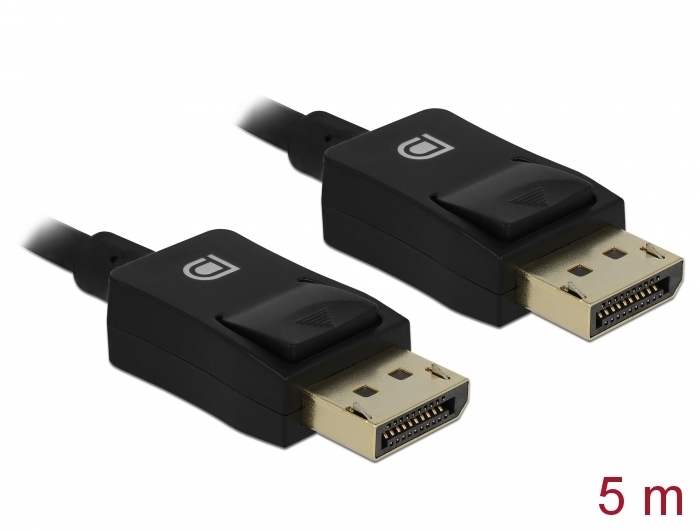

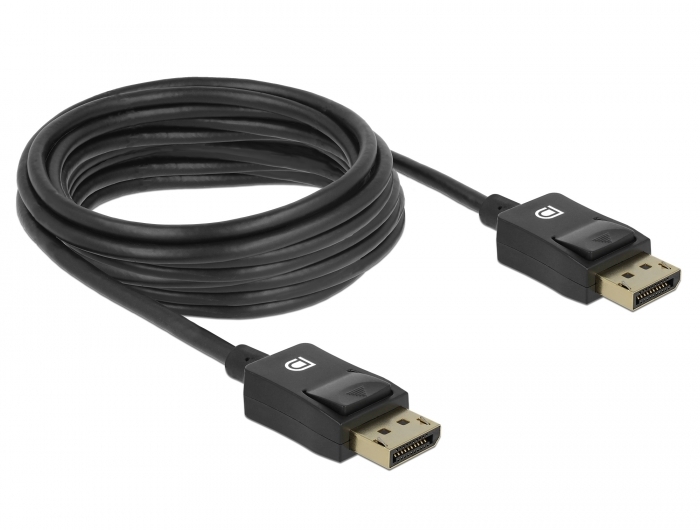

Delock Coaxial DisplayPort cable 8K 60 Hz 5 m

Delock Coaxial DisplayPort cable 8K 60 Hz 5 m

DELOCK

85304

Jauns

This coaxial DisplayPort cable by Delock is used to connect devices with a DisplayPort interface, such as monitors, projectors or televisions, to a PC or laptop.
By supporting a maximum bandwidth of 32.4 Gbps, content up to 8K Ultra HD (7680 x 4320 @ 60 Hz) resolution can be displayed.

Perfect sound
The high-quality, triple-shielded cable also significantly improves the quality of audio transmissions with a sampling rate of up to 1536 kHz.

Versatile due to highly flexible cable material
The cable is particularly characterised by its small diameter and the highly flexible cable material, making it particularly easy to install.
System requirements:
• A free DisplayPort interface
Specification:
• Connectors:
  1 x DisplayPort male >
  1 x DisplayPort male
• DisplayPort 1.4 specification
• Downwards compatible to DisplayPort 1.3, 1.2 and 1.1
• Pin 20 not connected
• Cable type: coaxial silver-plated
• Cable diameter: ca. 4.8 mm
• Triple shielded cable
• Contacts gold-plated
• Transmission of audio and video signals
• Data transfer rate up to 32.4 Gbps
• Resolution up to:
  Display with DSC support:
    7680 x 4320 @ 60 Hz
    5120 x 2880 @ 120 Hz
    3840 x 2160 @ 240 Hz
  Display without DSC support:
    7680 x 4320 @ 30 Hz
    5120 x 2880 @ 60 Hz
    3840 x 2160 @ 120 Hz
  (depending on the system and the connected hardware)
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Supports HBR3 (8.1 Gbps) data rate
• Up to 32 audio channels for speakers
• Up to 1536 kHz audio sampling rate
• Supports colour sampling in 4:4:4, 4:2:2 and 4:2:0 format
• Colour: black
• Length incl. connectors: ca. 5 m
Package content:
• DisplayPort cable
Data sheet:
http://www.delock.de/produkt/85304/pdf.html?sprache=en
