Delock DisplayPort Empfänger für Video über IP

Delock DisplayPort Empfänger für Video über IP

DELOCK

65946

Jauns

Salīdzināt
This video extender system by Delock allows video signals to be transmitted over an IP network. The transmitter and receiver can be connected with a network cable of up to 100 m. Alternatively both devices can be connected via a switch, the distance between the source and the display device can then be 200 m.

HDBitT
The HDBitT technology allows different transmitters and receivers to be combined with each other, e.g. a DisplayPort transmitter with an HDMI receiver. Optionally, several receivers can be operated simultaneously.
System requirements:
• Connection cables
• Switch with VLAN or IGMP snooping
Specification:

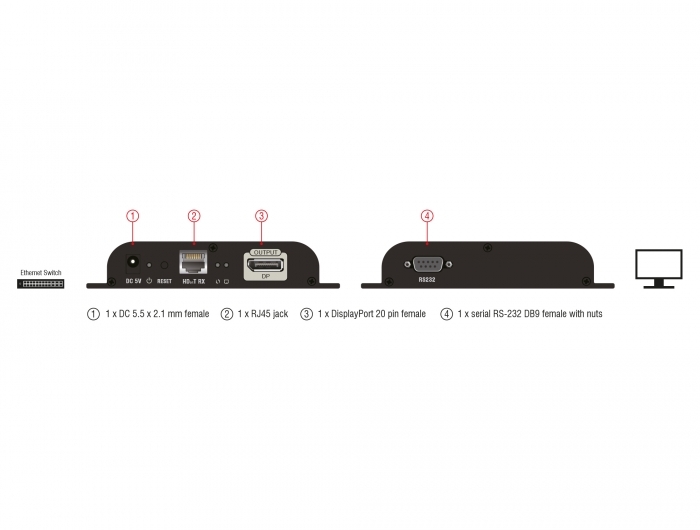

• Connectors:
  1 x RJ45 jack
  1 x DisplayPort 20 pin female
  1 x serial RS-232 DB9 female with nuts
  1 x DC 5.5 x 2.1 mm female
• Transmission of audio and video signals
• Transmission of serial signals
• Supported resolution: 480i / 480p / 576i / 576p / 720p / 1080i / 1080p
• Supports EDID und HDCP
• Supports RTP Multicast
• Latency: ca. 400 ms
• Power consumption: max. 3.5 W
• Robust metal housing
• Wallmount option
• Dimensions (LxWxH): ca. 138 x 94 x 25 mm
Package content:
• DisplayPort receiver

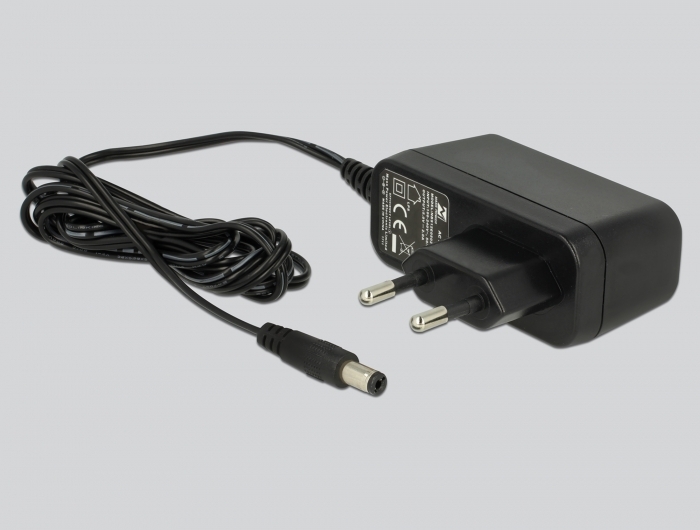

• Power supply
• User manual
Data sheet:
http://www.delock.de/produkt/65946/pdf.html?sprache=en
