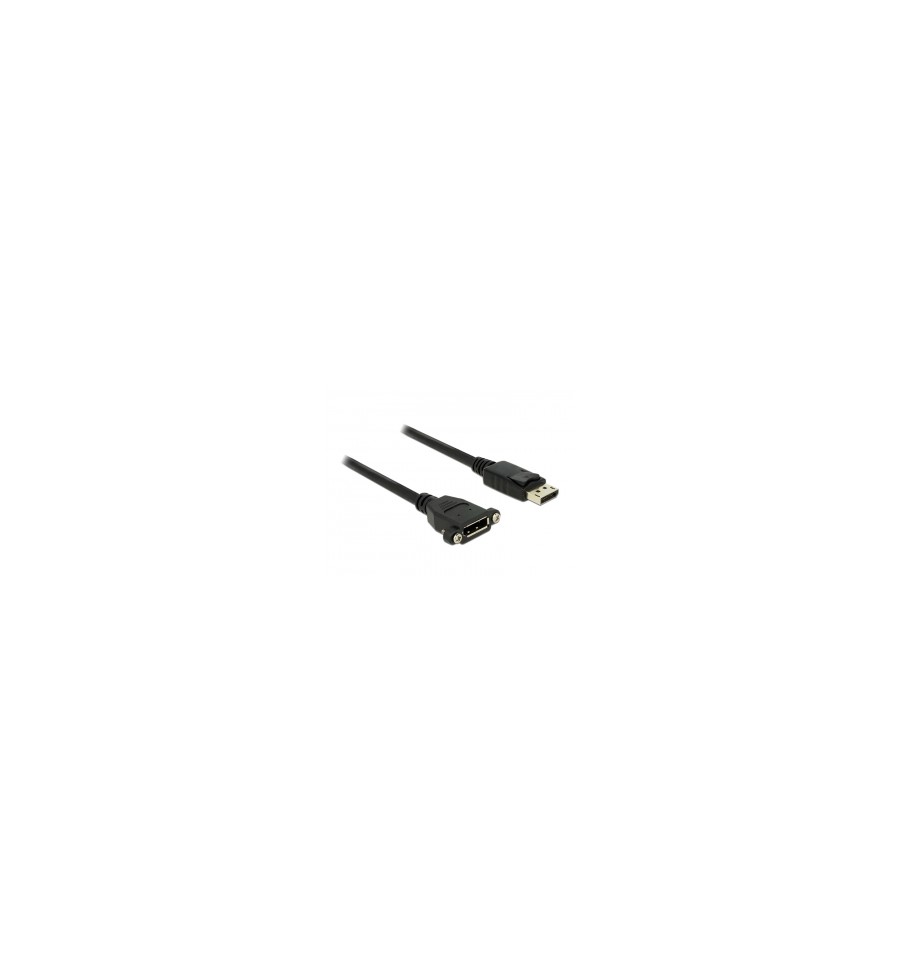

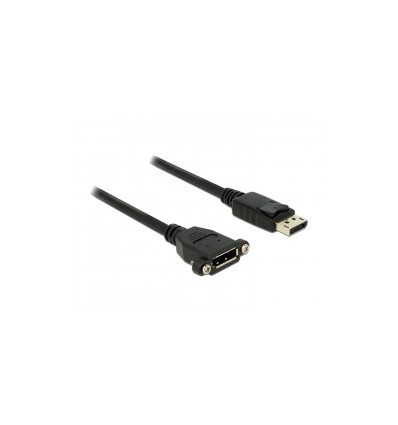

Delock Cable Displayport 1.2 male - Displayport female panel-mount 1 m

DELOCK

85114

Jauns

Description
This cable enables you to extend a Displayport connection and can be used to connectvarious devicesThe female port can be attached with two screwse.g. to a slot bracketa cable duct or an enclosure with the corresponding openingThis can be used to install anDisplayport connector at an easily accessible position.

More details

Description
This cable enables you to extend a Displayport connection and can be used to connectvarious devicesThe female port can be attached with two screwse.g. to a slot bracketa cable duct or an enclosure with the corresponding openingThis can be used to install anDisplayport connector at an easily accessible position.

Specification
• Connector:
  Displayport 20 pin male >
  Displayport 20 pin female with screw nuts for installation
• Screw type: #4-40 UNC
• Mounting hole ca. 18 x 7 mm, screw hole pitch ca. 27 mm

• Displayport 1.2 specification
• Pin 20 is connected (supports 3.3 V)
• Supports a resolution up to 3840 x 2160 @ 60 Hz
  (depending on the system and the connected hardware)
• Cable gauge: 30 AWG
• Cable diameter: ca. 6 mm
• Gold-plated connector
• Colour: black
• Length incl. connector: ca. 100 cm

System requirements
• A free Displayport port

Package content
• Displayport panel-mount cable
• 2 screws

Package
• Poly bag
