Delock Connector Dualport female HDMI + Displayport

Description

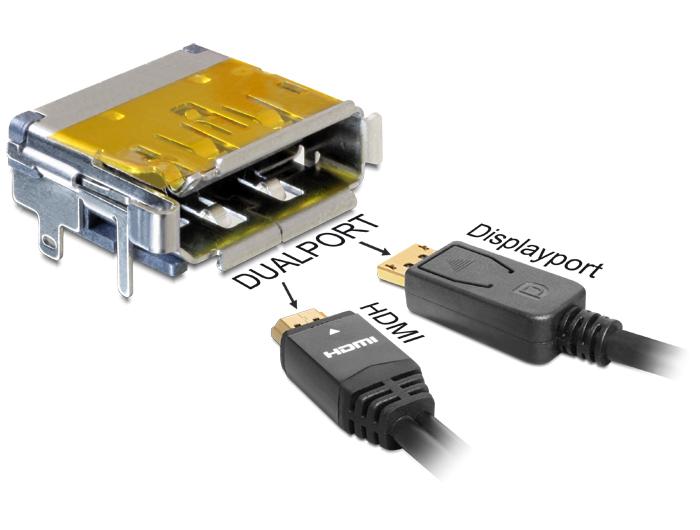

This connector by Delock can be soldered on your PCB. The combination of DP and HDMI port enables you to connect a DP cable or a HDMI cable.

Specification
• Connector: HDMI + Displayport > 21 pin DIP type
• THT PCB assembly
• Solder pin 1-20: Ã 0.5 mm
• Solder pin 21: Ã 0.85 mm
• Housing material: thermoplastic high temp UL 94-V0
• Contact area: gold-plated
• Dimension (LxWxHeight on PCB): 15.85 mm x 19.05 mm 7.26 mm

System requirement
• PCB with HDMI + Displayport through holes

Package content
• Connector

Package
• Delock poly bag
