Delock Aluminium Mounting Clip for DIN Rail 80.0 x 47.8 mm silver

DELOCK

67146

Jauns

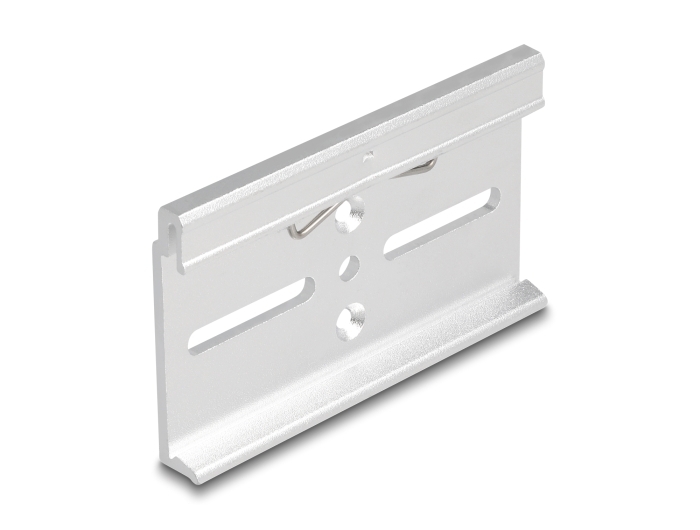

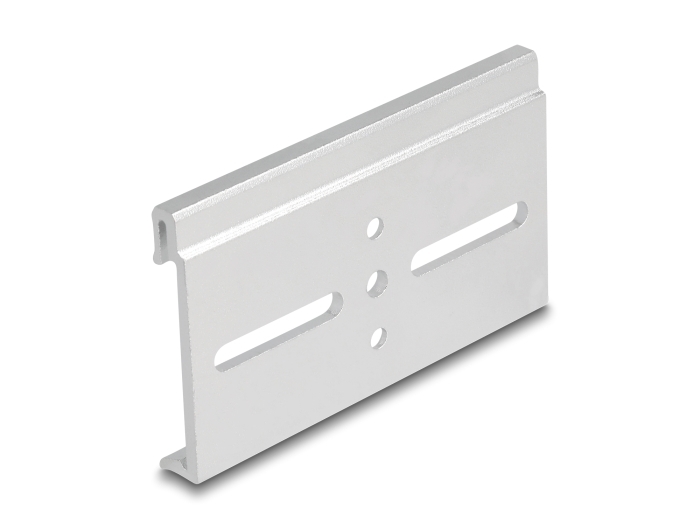

This mounting clip by Delock is suitable for the mounting on a 35 mm DIN rail.

To be used for different devices

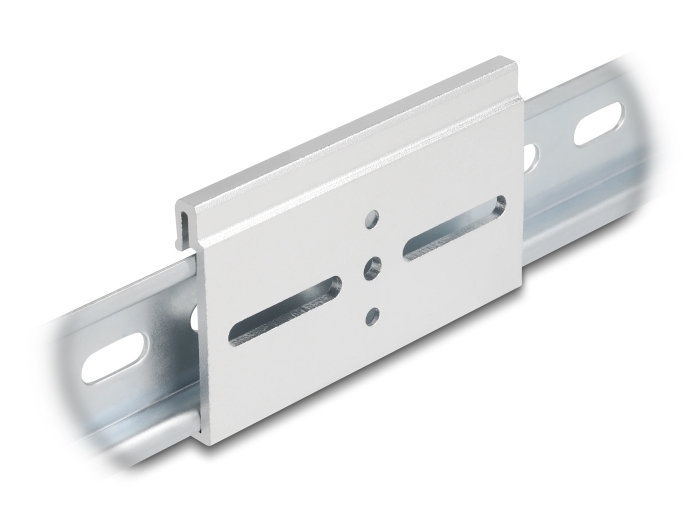

The clip can be screwed to different devices. This allows you to mount the devices e.g. in a control cabinet onto a DIN rail.
Specification:
• DIN rail mounting: 35 mm
• 3 x mounting holes
• 1 x Mounting hole diameter: ca. 4.5 mm
• 2 x Mounting hole diameter: ca. 3.2 mm
• 2 x elongated hole horizontal: ca. 27.2 x 4.5 mm
• Environmental temperature: -20 °C ~ 100 °C
• Material: aluminium with spring steel wire
• Colour: silver
• Dimensions (LxWxH): ca. 80.0 x 47.8 x 7.5 mm
Package content:
• 1 x mounting clip

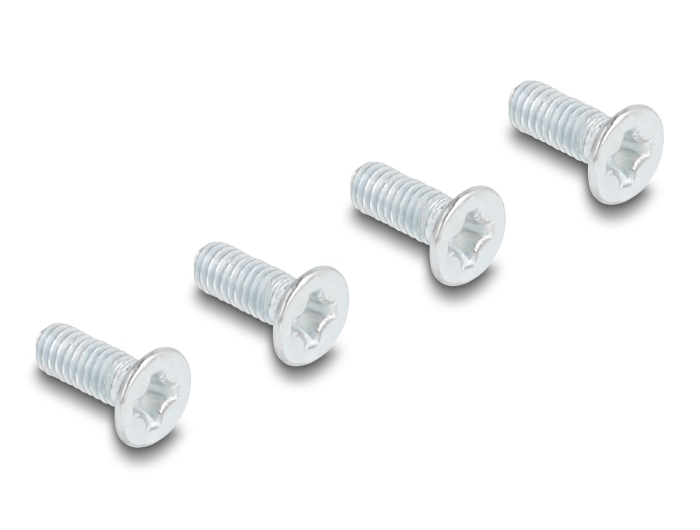

• 4 x screw M3 x 6 mm
Data sheet:
http://www.delock.de/produkt/67146/pdf.html?sprache=en
