Delock 3G-SDI Switch 4 1

Description:

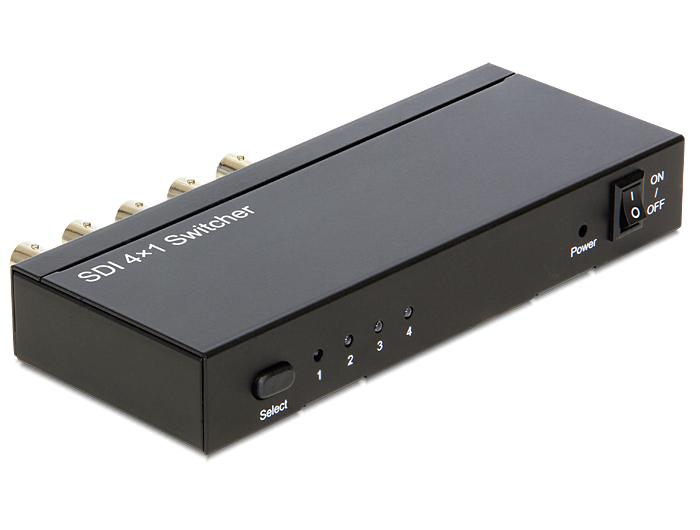

With this Delock SDI switch, you can connect up to four SDI input sources to one SDI output device, such as an HD-SDI monitor. By pressing a button on the device, you can switch from one source to another.

Specification:

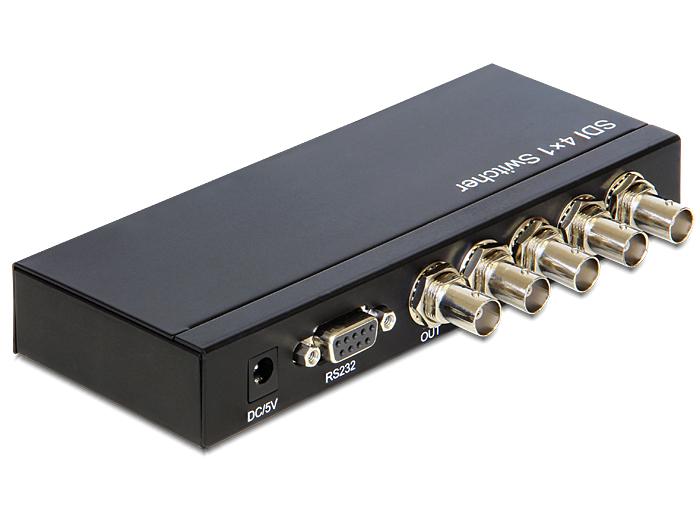

• Connector:
Input: 4 x BNC female (3G-SDI)
Output: 1 x BNC female (3G-SDI)

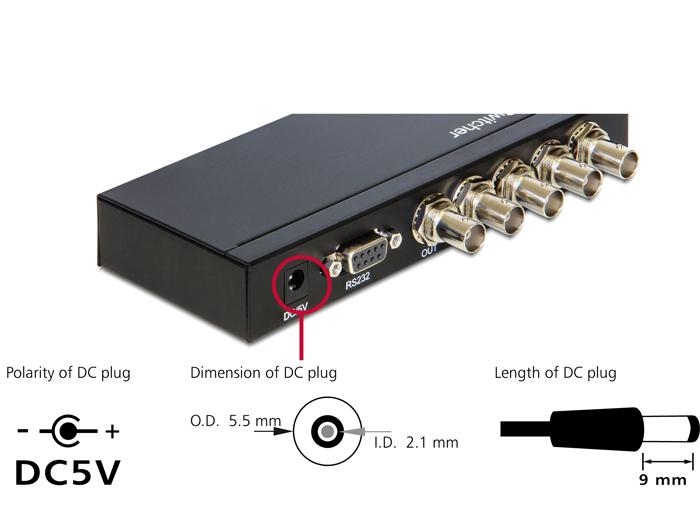

1 x DC Power 5 V
• Supported resolution:
SD 480i, 525i und 625i
HD 720p 24, 25, 30, 50 and 60 Hz
HD 1080i 50, 60 Hz
HD 1080p 24, 25, 30, 50 and 60 Hz
• Configuration and control of the device via RS232 interface
• Robust metal housing
• Power consumption: max. 3 W
• Dimensions (LxWxH): ca. 162 x 82 x 25 mm

System requirements:


Package content:
• 3G-SDI Switch

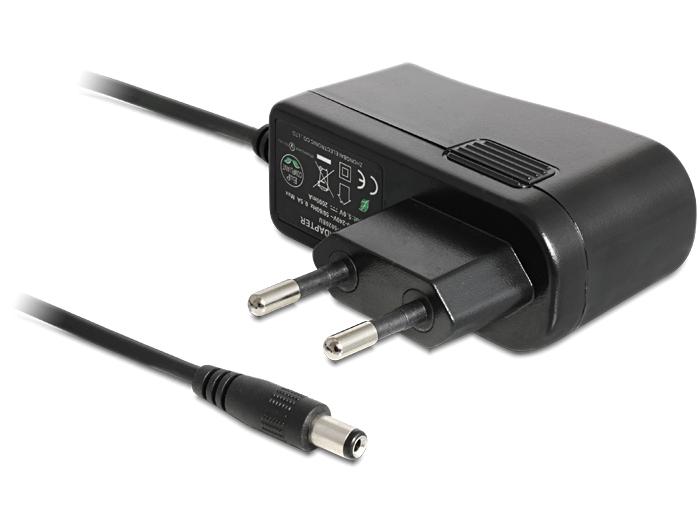

• Power supply
