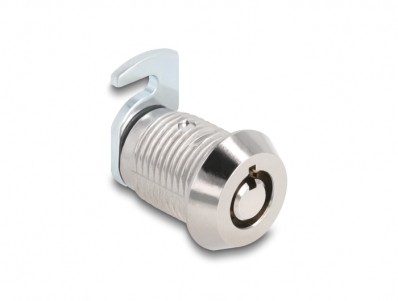

Navilock Cylinder lever lock for equipment cabinets with key - 13 mm / 0-90

NAVILOCK

20973

Jauns

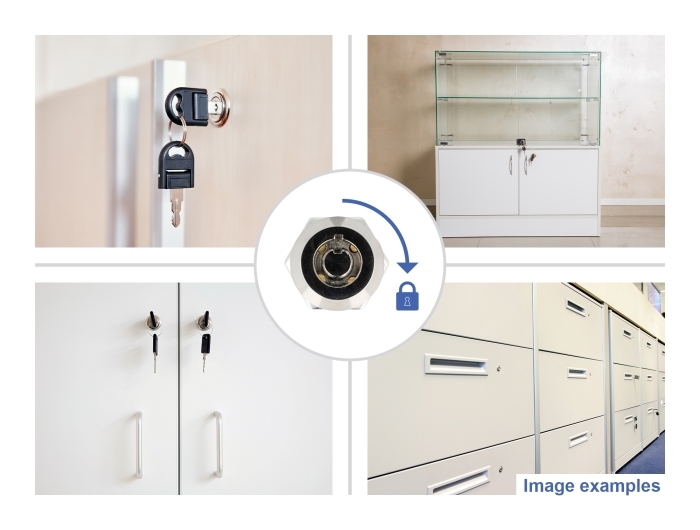

This locking by Navilock can be used to lock cupboard doors or drawers.

Lever lock
The lever is set to "Closed/Open" accordingly by the rotary movement, so that the lever functions as a latch accordingly.
Specification:
• Key lock
• Suitable for a material thickness of: ca. 13 mm
• With fastening nut
• Right-hand locking 0-90
• Material: steel with zinc alloy
• Plating: Cr3+
• Colour: silver
• Dimensions: diameter ca. 37 mm, height ca. 22 mm
• Dimension lever: ca. 190 x 100 mm
• Mounting hole diameter: ca. 11 x 12 mm
• Mounting depth: ca. 13 mm
• Weight: ca. 14 g

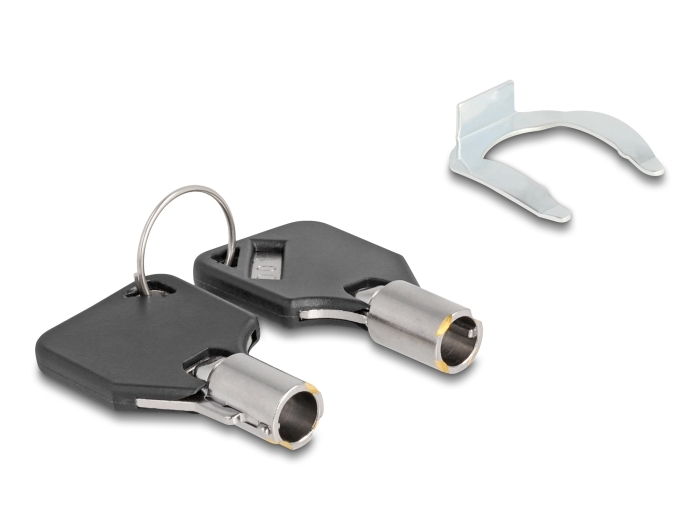

Package content:
• Lock
• 2 x keys
Data sheet:
http://www.navilock.de/produkt/20973/pdf.html?sprache=en
