Delock LCD Cable Tester RJ45 / RJ12 / BNC / USB

Kods 86108

Condition: Jauns

Vairāk informācijas

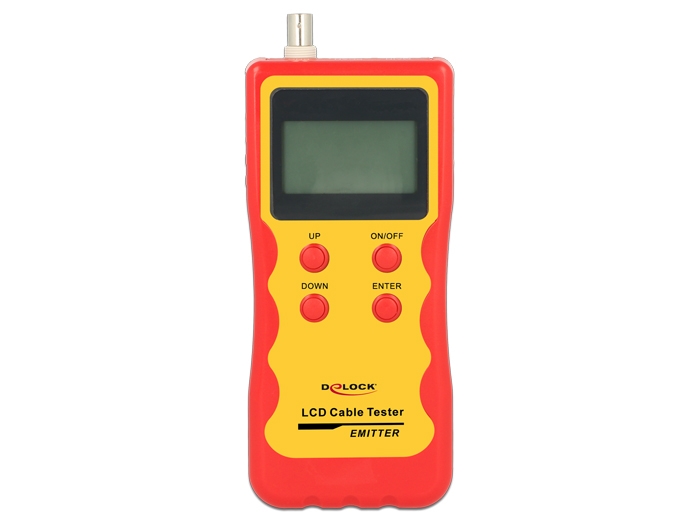

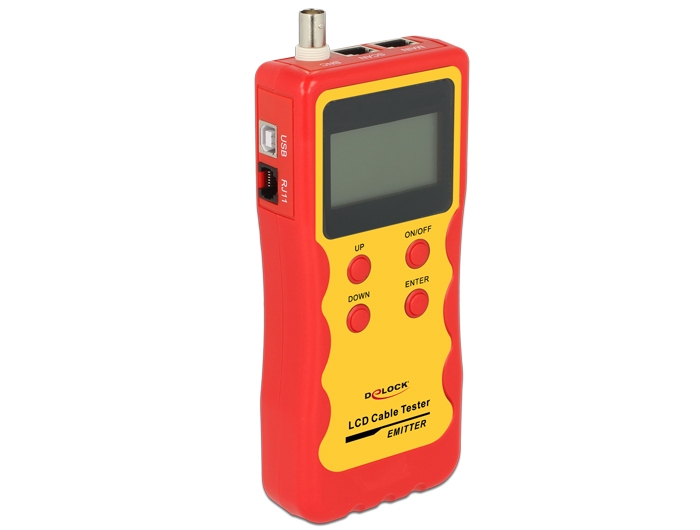

With this cable tester by Delock different types of cables can be tested quickly and easily. Connectors are available for modular cables, network cables, BNC and USB cables. Errors in the wiremap are clearly displayed on the illuminated LCD display. Network cables can be tested for split pairs, which can degrade performance by crosstalk. In addition, the length of the connected cables can be measured. To test already installed cables the remote unit can be used.

System requirements:
• 9-volt battery

Specification:
• 4 in 1 cable tester for RJ45 / RJ12 / BNC / USB
• Matrix LCD display with background lighting
• 4 operating buttons
• Display of open, short or crossed connections
• Detection of split pairs (crosstalk)
• Measurement of cable length
• Auto power-off mode
• Battery compartment for 1 x 9 V battery (not included)
• Colour: red
• Dimensions (LxWxH): ca. 185 x 80 x 32 mm

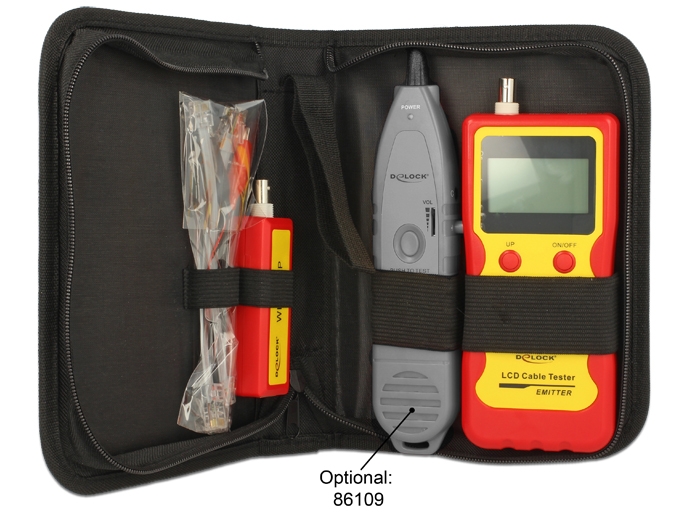

Package content:
• Cable tester

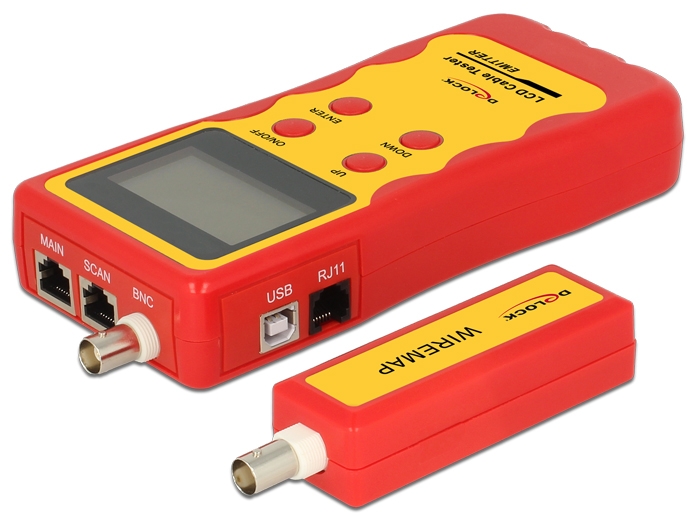

• Remote unit
• Bag
• User manual

Data sheet:
http://www.delock.de/produkt/86108/pdf.html?sprache=en
