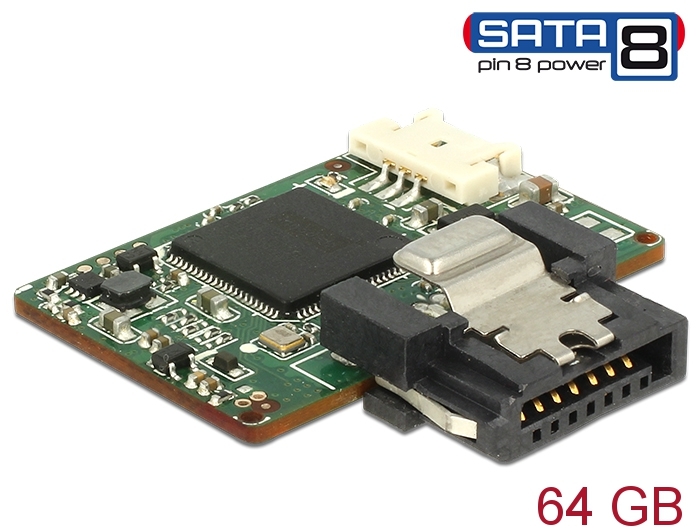

Delock SATA 6 Gb/s DOM Module 64 GB MLC SATA Pin 8 power -40 °C ~ 85 °C

Kods 54808

Condition: Jauns

Vairāk informācijas

• Speicherkapazität: 64 GB • Schnittstelle: SATA III 6,0 Gb/s • Supports Pin 8 Power • Chip: Toshiba • Flash Typ: MLC • Maximale Geschwindigkeit: 210 MB/s lesen, 75 MB/s schreiben • Maximale Schreibzyklen: 3000 • Maximaler Energieverbrauch: 1,8W (5V x 370mA) • Schreibschutz: nein • ATA Security: Ja • S.M.A.R.T.: Ja • Thermischer Sensor: ja • Maße: (Breite x Länge x Höhe): 30 x 28,4 x 7,4 mm • Vibration: 20G @7 ~ 2000Hz • Schock: 1500G @0,5ms • MTBF: >3 Millionen Stunden • Storage-Temperatur: -55°C ~ +95°C • Betriebs-Temperature: Industrieklasse -40°C ~ 85°CVerpackungsinhalt: • SATA Modul • Power Kabel

System requirements:
• A free SATA 8 pin or SATA 7 pin port
• For SATA 7 pin: power supply with a free 4 pin power connection

Specification:
• Capacity: 64 GB
• Interface: SATA 6 Gb/s
• Supports SATA pin 8 power
• Chip: Toshiba
• Flash type: MLC
• Maximum performance: 210 MB/s read, 75 MB/s write
• Maximum write cycles: 3000
• Maximum power consumption: 1.8 W (5 V x 370 mA)
• Write protect: no
• ATA Security: yes
• S.M.A.R.T.: yes
• Thermal sensor: yes
• Dimensions (WxLxH): 30 x 28.4 x 7.4 mm
• Vibration: 20G @ 7 ~ 2000 Hz
• Shock: 1500G @ 0.5 ms
• MTBF: >3 million hours
• Operation temperature: -40 °C ~ 85 °C - Industrial grade
• Storage temperature: -55 °C ~ 95 °C

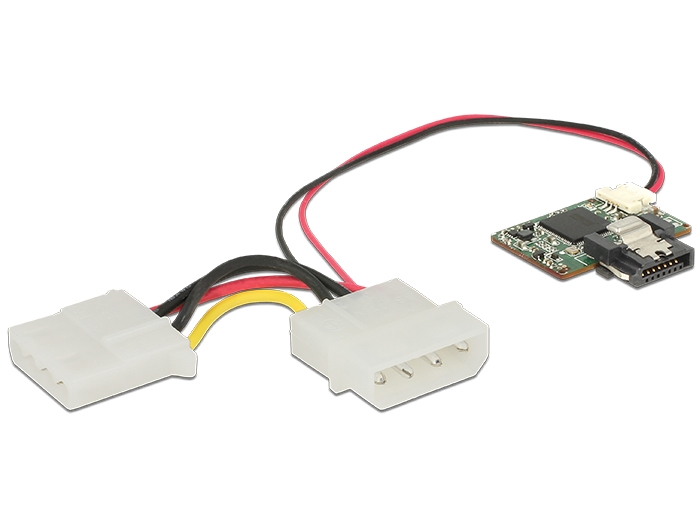

Package content:
• SATA DOM module

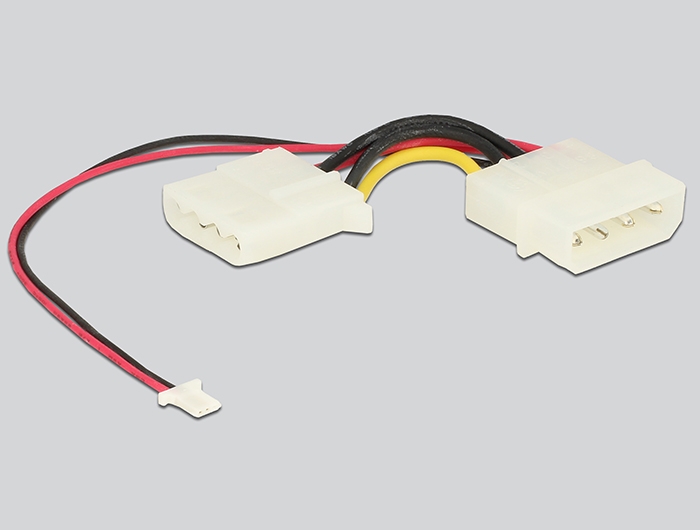

• Power cable

Data sheet:
http://www.delock.de/produkt/54808/pdf.html?sprache=en
