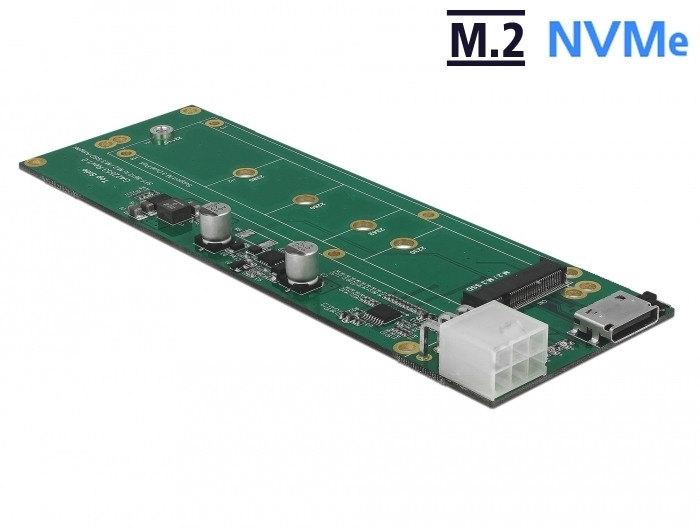

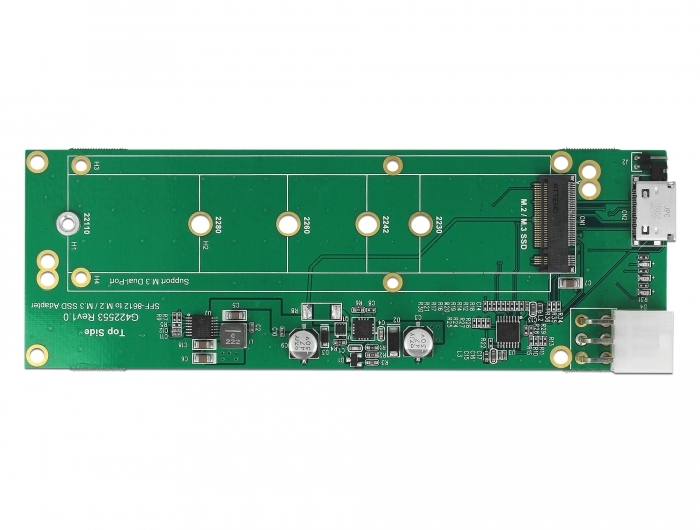

Delock Converter SFF-8612 to 1 x M.2 Key M slot

Kods 64041

Condition: Jauns

Vairāk informācijas

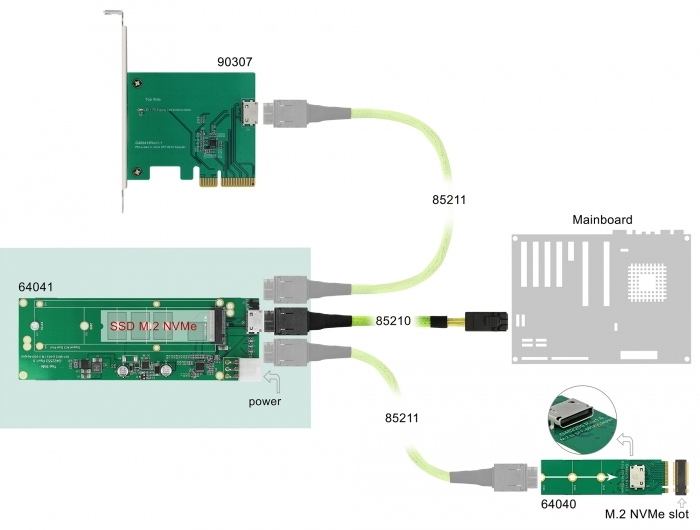

This Delock converter enables the connection of a M.2 SSD in 22110, 2280, 2260, 2242 and 2230 format. It allows the use of NVMe (PCIe) M.2 SSD. The converter can be installed into the system through an optional OCuLink cable.

System requirements:
• Linux Kernel 4.3 or above
• Windows 7/7-64/8.1/8.1-64/10/10-64
• Connection cables

Specification:
• Connectors:
  1 x OCuLink SFF-8612 female
  1 x 6 pin power connector
  1 x 67 pin M.2 key M slot
• Interface: PCIe
• Supports M.2 modules in format 22110, 2280, 2260, 2242 and 2230 with
key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm,
application of double-sided assembled modules supported
• LEDs for power and activity
• Bootable
• Supports NVM Express (NVMe)
• Dimensions (LxWxH): ca. 146 x 50 x 14 mm

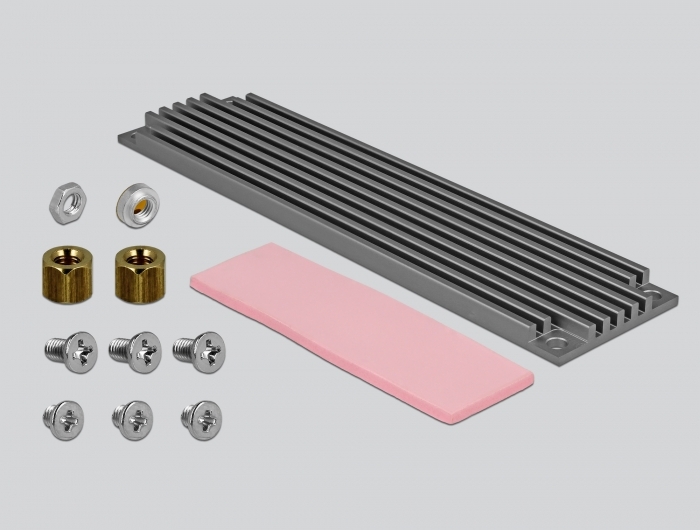

Package content:
• Converter
• 1 x heat sink
• 1 x self-adhesive thermal pad
• Mounting material
• User manual
