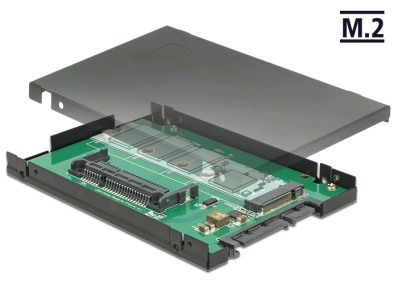

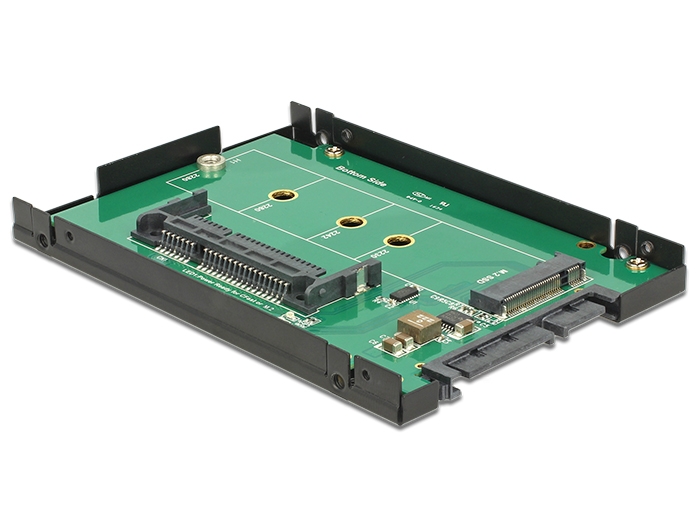

Delock 2.5″ Converter SATA 22 pin > 1 x M.2 / 1 x CFast - 9.5 mm Enclosure

Kods 62944

Condition: Jauns

Vairāk informācijas

This converter by Delock enables the connection of an M.2 SSD in 2280, 2260, 2242 and 2230 format or a CFast memory card. If both slots are occupied, only the M.2 SSD can be used. The converter can be installed into the system through the SATA interface.

System requirements:
• A free SATA interface
• Windows 7/7-64/8.1/8.1-64/10/10-64, Linux ex Kernel 3.17.x / Kernel 4.x.x

Specification:
• Connectors:
1 x SATA 6 Gb/s 22 pin plug >
1 x M.2 key B slot
1 x CFast slot
• Supports CFast 1.0 and 2.0
• Interface: SATA
• Form factor 2.5″
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key B or
key B+M based on SATA
• Maximum height of the components on the module: 1.35 mm,
application of double-sided assembled modules supported
• Data transfer rate up to 6 Gb/s
• Maximum power for modules: 4 A
• Short circuit protection, over heating protection
• ESD protection up to 2 kV
• Bootable
• LED indicator
• Dimensions (LxWxH): ca. 100 x 70 x 9.5 mm

Package content:
• Converter SATA > M.2 / CFast
• 2.5″ enclosure
• Mounting material
• User manual
