Level One LevelOne Kabel AOC-0501 100Gbps QSFP28 Active Optical 1m

Kods AOC-0501

Condition: Jauns

Vairāk informācijas

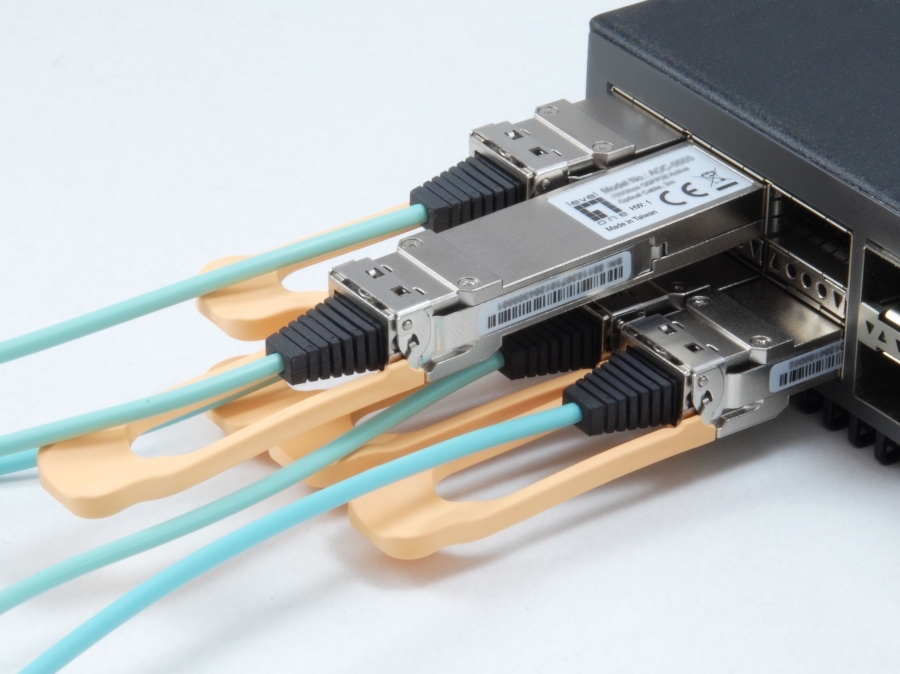

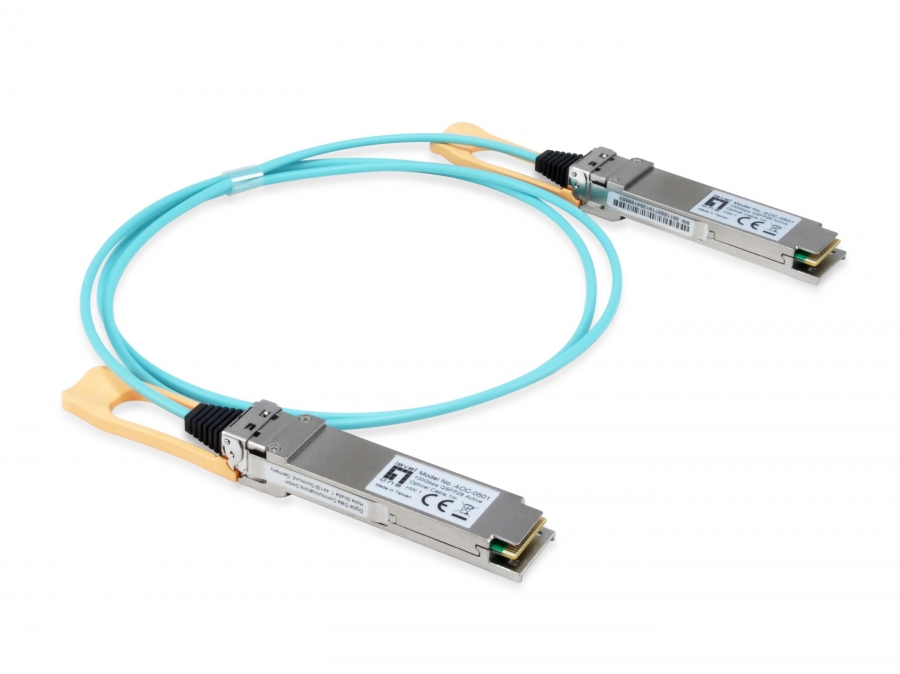

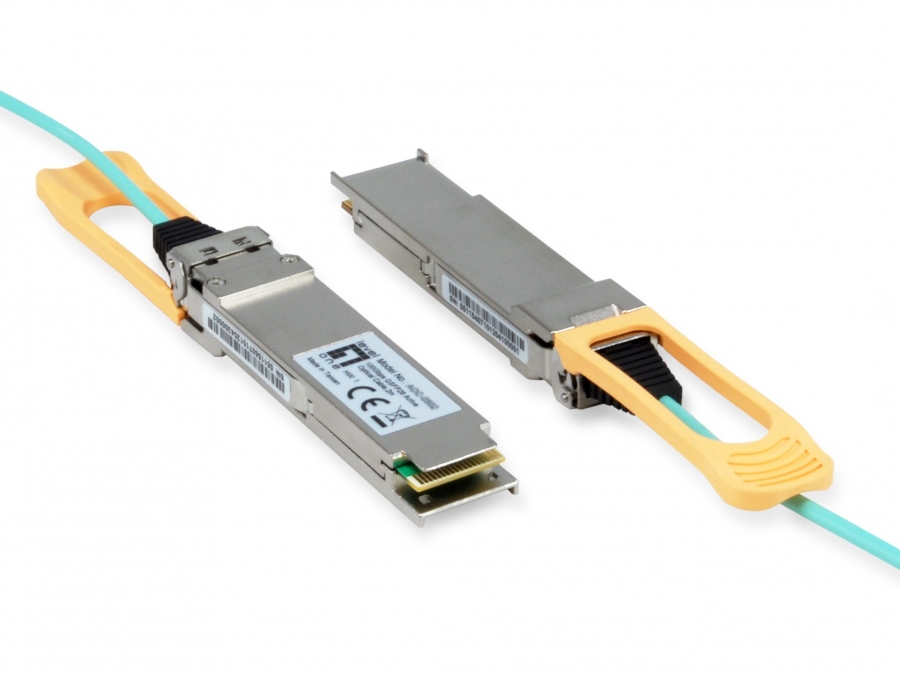

The LevelOne Quad Small Form-factor Pluggable 28 (QSFP28) active optic cable is further increase performance for applications that are I/O-intensive for 100G Ethernet. This connecting system offer 4 channels and maximun 100Gbps which are based on the proprietary technique Chip on board (COB), This module provides high performance and excellent efficiency in optical communication, offers system developers and planners a high degree of flexibility.

SFP transceiver type	Fiber optic
Maximum data transfer rate	103100 Mbit/s
Interface type	QSFP28
Fiber optic connector	QSFP28
SFP transceiver standard	SR4
Wavelength	850 nm
Networking standards	IEEE 802.3bm
Product colour	Aqua colour, Silver
Plug and Play	Y
Country of origin	Taiwan
Certification	RoHS
Maximum operating temperature	70 °C
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 90%
Width	18.4 mm
Depth	8.5 mm
Height	1000 mm
Weight	101 g
Number of products included	1 pc(s)
User guide	Y
Package width	210 mm
Package depth	0.5 mm
Package height	260 mm
Package weight	117 g
Pallet net height	164.4 cm
Pallet net length	80 cm
Pallet net width	120 cm
Harmonized System (HS) code	85369010
Cable length	1 m
