> >>TP-Link Omada WL-AP Access Point EAP623-Outdoor HD (AX1800)
Jauns TP-Link Omada WL-AP Access Point EAP623-Outdoor HD (AX1800)

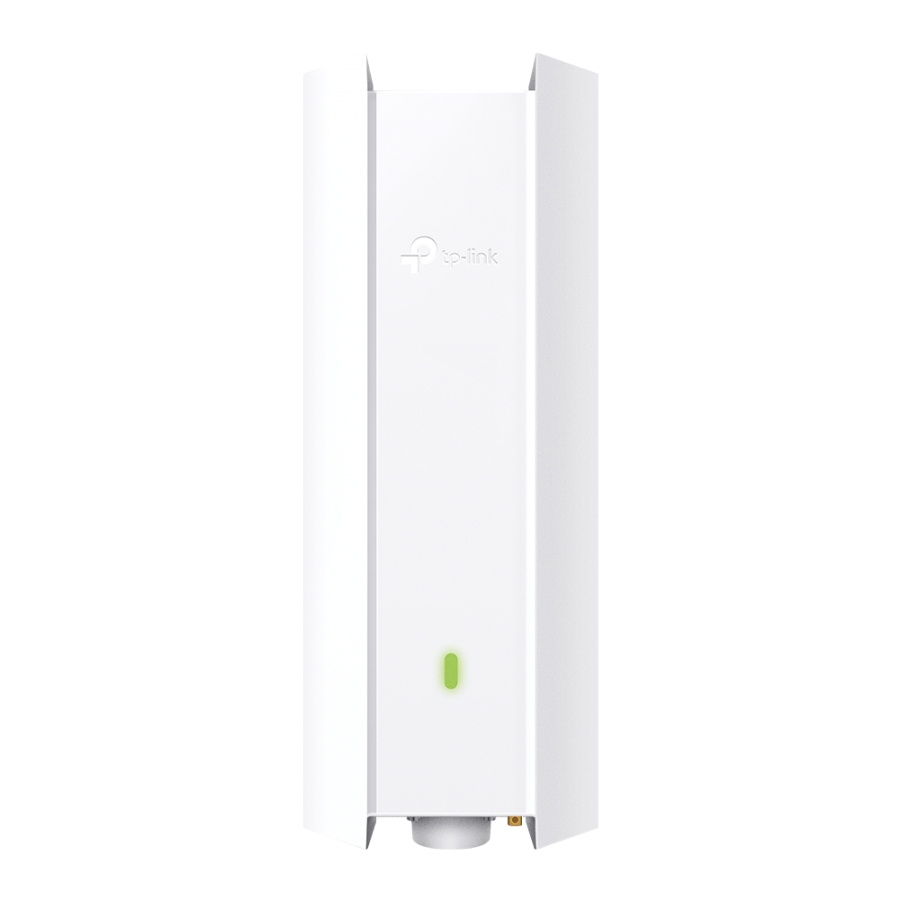

TP-Link Omada WL-AP Access Point EAP623-Outdoor HD (AX1800)

TP-LINK

EAP623-OUTDOOR HD

Jauns

Long-Range, High-Speed WiFi 6
Professional antennas with high-power amplifiers utilize WiFi 6 technology to deliver robust and extensive wireless coverage.
Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps.

Explore More with Smart Antennas
Equipped with horizontally polarized and vertically polarized antennas, EAP623-Outdoor HD’s intelligent algorithms automatically select the optimal antennas, bringing lower interference, longer coverage, and higher performance.

Ideal for High-Density Outdoor Scenes
OFDMA and MU-MIMO provide simultaneous connections for dozens of clients in large open areas.
Equipped with an IP67 weatherproof enclosure, our EAP623-Outdoor HD withstands the most extreme environments.

Flexible Deployment with Omada Mesh and PoE Support

Seamless Integration into Omada SDN

2.4 GHzJā
5 GHzJā
6 GHzNē
Maximum data transfer rate1800 Mbit/s
Maximum data transfer rate (2.4 GHz)574 Mbit/s
Maximum data transfer rate (5 GHz)1201 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.4 - 5 GHz
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology10/100/1000Base-T(X)
Number of users1020 user(s)
Automatic channel selectionJā
Automatic channel scanningJā
MIMOJā
MIMO typeMulti User MIMO
VLAN supportJā
Rate limitingJā
Band steeringJā
Airtime Fairness (ATF)Jā
Quality of Service (QoS) supportJā
BeamFormingJā
Transmitting power (CE)< 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);
Transmitting power (FCC)< 25 dBm (2.4 GHz), < 25 dBm (5 GHz)
Security algorithmsSNMP, SNMPv2, SNMPv3, SSH
MAC address filteringJā
Remote Authentication Dial-In User Service (RADIUS)Jā
Access Control List (ACL)Jā
Web-based managementJā
SyslogJā

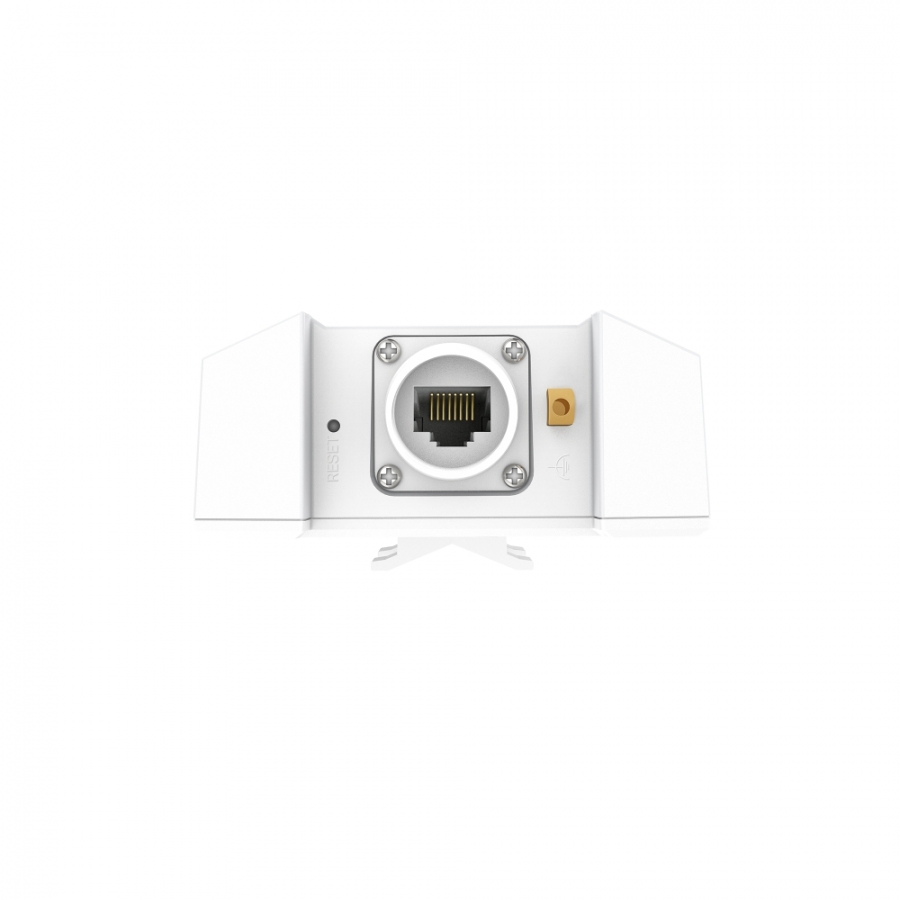

Ethernet LAN (RJ-45) ports1
Power over Ethernet (PoE)Jā
Power over Ethernet (PoE) type supportedPassive PoE

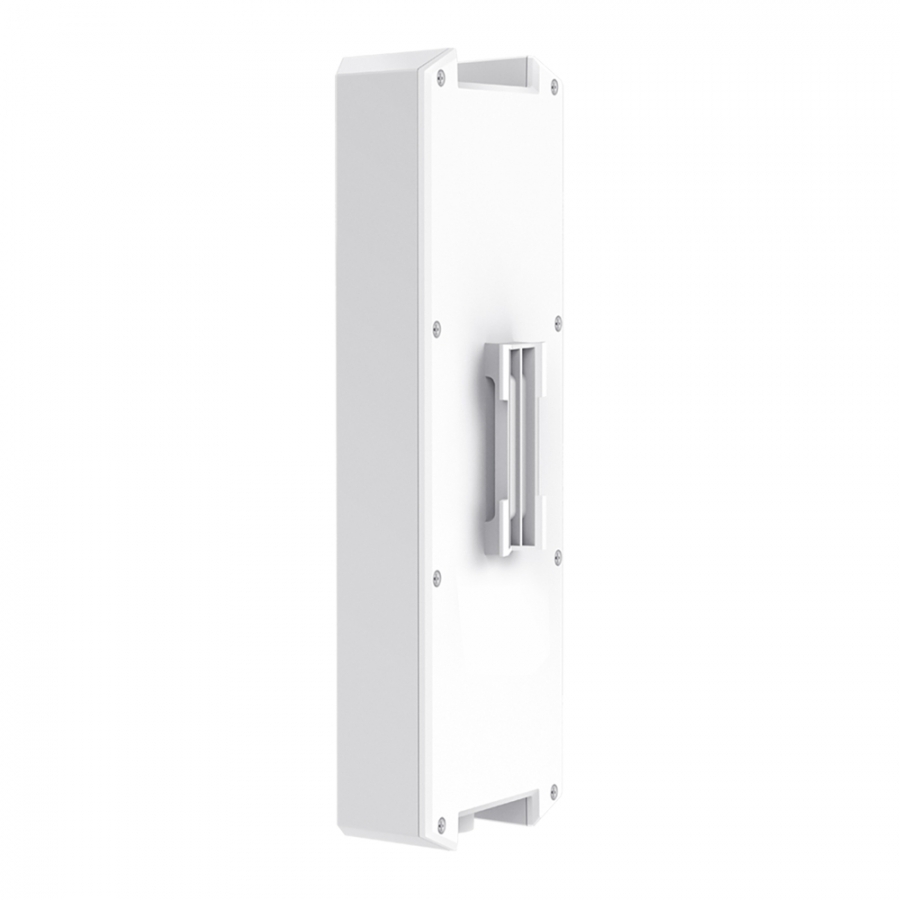

PlacementPole
Product colourWhite
Reset buttonJā
LED indicatorsJā
Antenna typeInternal
Antenna direction typeOmni-directional
Antenna featuresIntegrated antenna
Antennas quantity2
CertificationCE, FCC, RoHS
Width280.4 mm
Depth106.5 mm
Height56.8 mm
Quantity per pack1 pc(s)
Mounting kitJā
Quick start guideJā
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-30 - 70 °C
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
