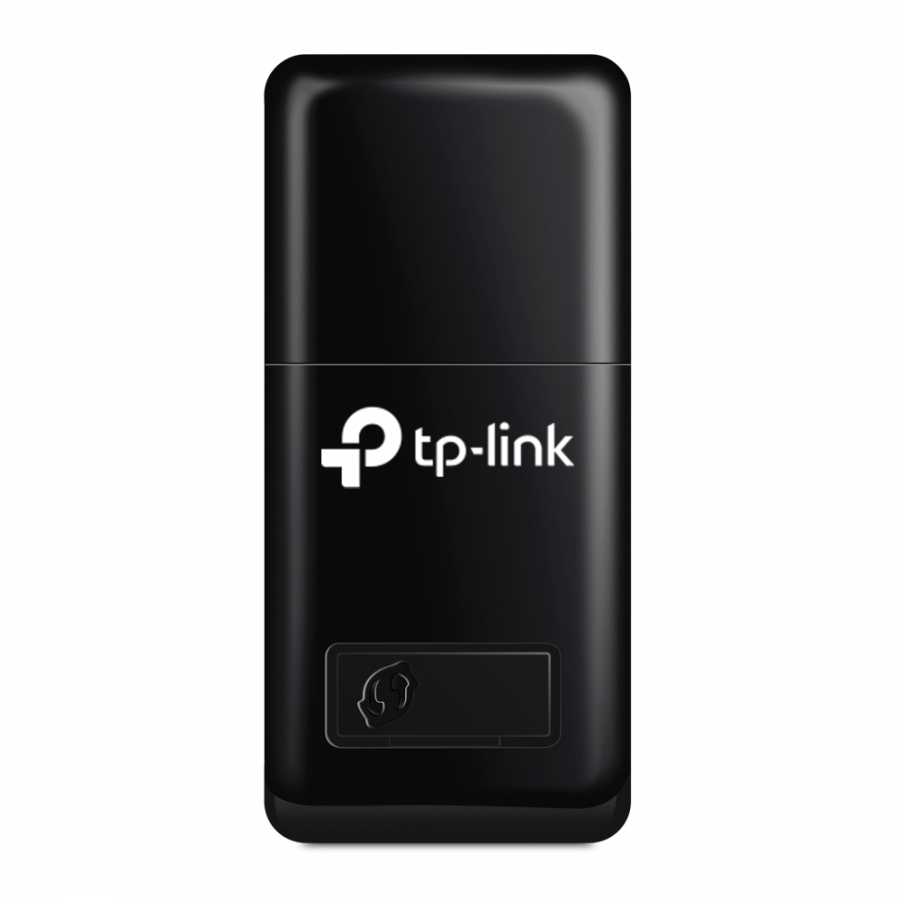

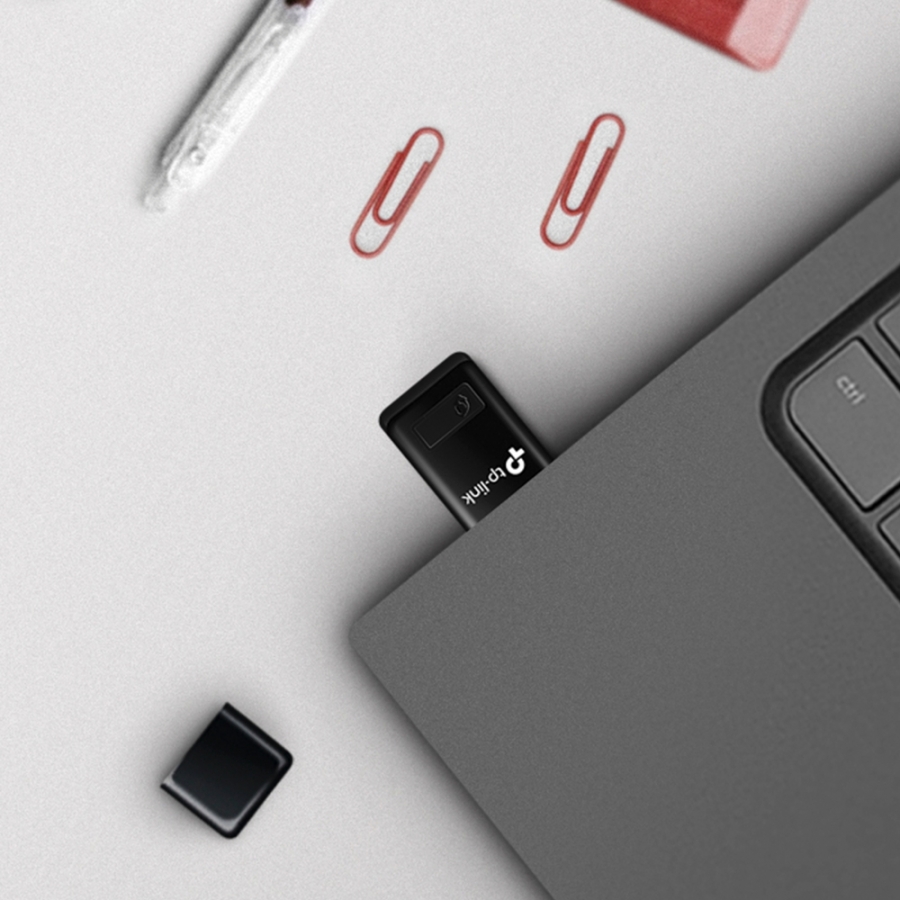

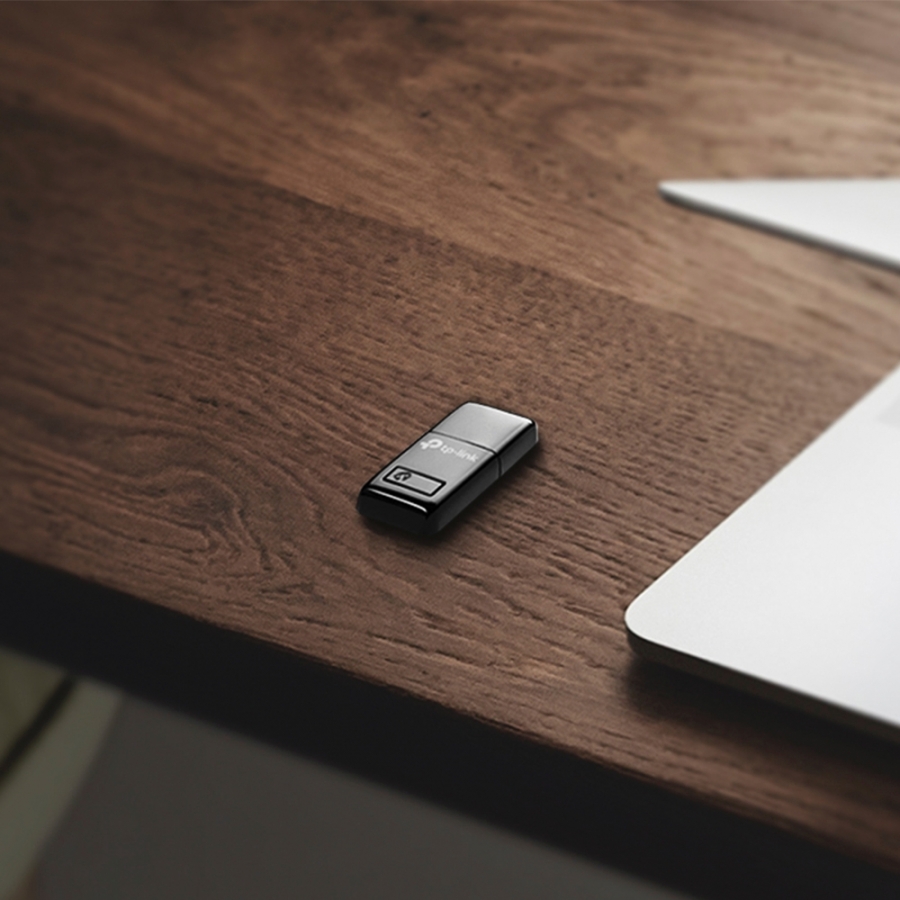

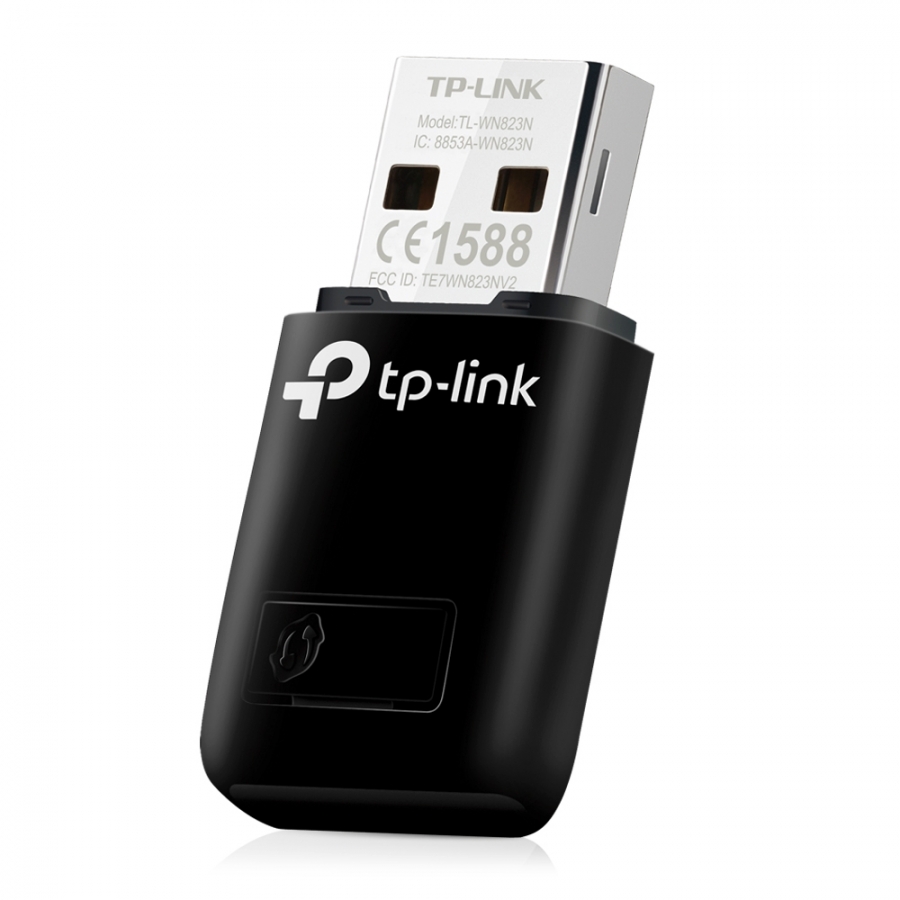

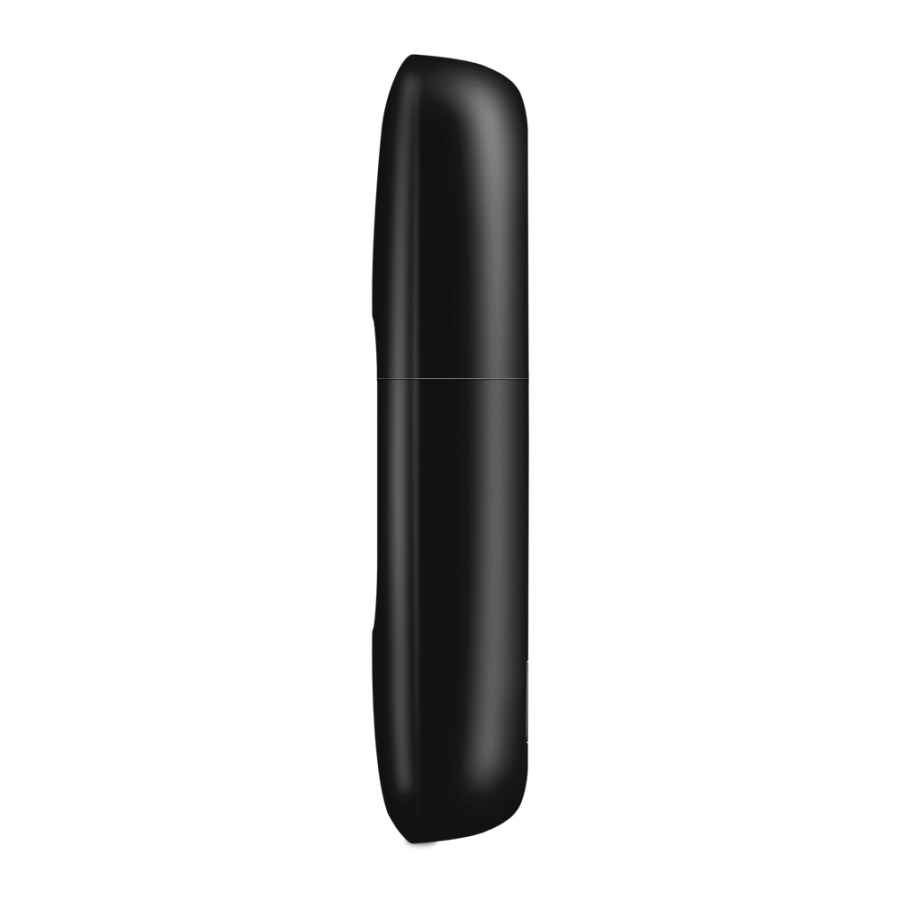

Minimum Adapter Style, Maximum Connection Experience 300Mbps Mini Wireless N USB AdapterStable Connection Satisfies Your Daily Surfing Demands TL-WN823N is designed to connect your laptop or desktop to a wireless network. It allows you enjoy high speed wireless performance at 300Mbps, making it a great choice for video streaming, voice streaming and online gaming.Tiny Design Brings Infinite Convenience TL-WN823N has a smart design that is tinier than a usual USB flash disk. Not only could it be inserted into any USB port , but is quite easy to carry, which is convenient for most usage scenarios.Easy Setup A friendly user interface on a CD for simple installation WPS Button Easy wireless security encryption at a push of the WPS button Operating System Supports Windows, Mac OS, Linux
|
Connectivity technology | Wireless | Host interface | USB | Interface | WLAN | Maximum data transfer rate | 300 Mbit/s | Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n | Wi-Fi | Y | Wi-Fi band | Single-band (2.4 GHz) | Frequency range | 2.4 - 2.4835 GHz | Top Wi-Fi standard | Wi-Fi 4 (802.11n) | Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) | WLAN data transfer rates supported | 11,54,300 Mbit/s | Modulation | 16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM | Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK | Wake-on-LAN ready | Y | Internal | N | Component for | PC/notebook | Product colour | Black | LED indicators | Status | Receiver sensitivity | 300M: -65dBm@10% PER 270M: -65dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -72dBm@10% PER 11M: -85dBm@8% PER 6M: -87dBm@10% PER 1M:-93dBm@8% PER | Certification | CE, FCC, IC, RoHS | USB powered | Y | Compatible operating systems | Windows XP (32/64-bit) Windows Vista (32/64-bit) Windows 7 (32/64-bit) | Windows operating systems supported | Y | Operating temperature (T-T) | 0 - 40 °C | Storage temperature (T-T) | -40 - 70 °C | Operating relative humidity (H-H) | 10 - 90% | Storage relative humidity (H-H) | 5 - 90% | Width | 39 mm | Depth | 18.3 mm | Height | 7.9 mm | Package width | 138 mm | Package depth | 128 mm | Package height | 30 mm | Package weight | 80 g | Manual | Y | Quick start guide | Y | Supported data transfer rates | 11, 54, 300 Mbps |
|
