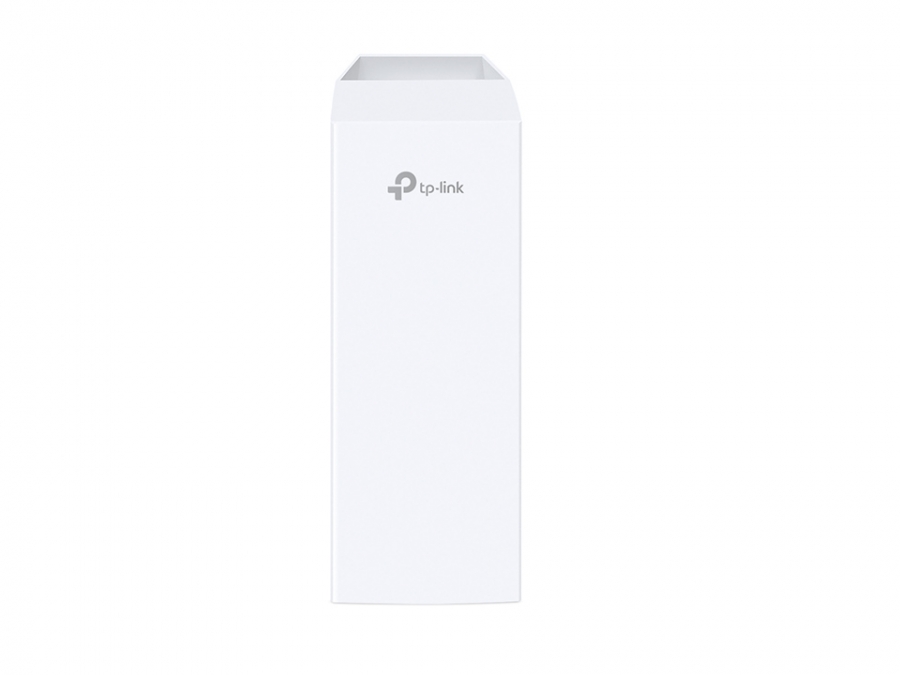

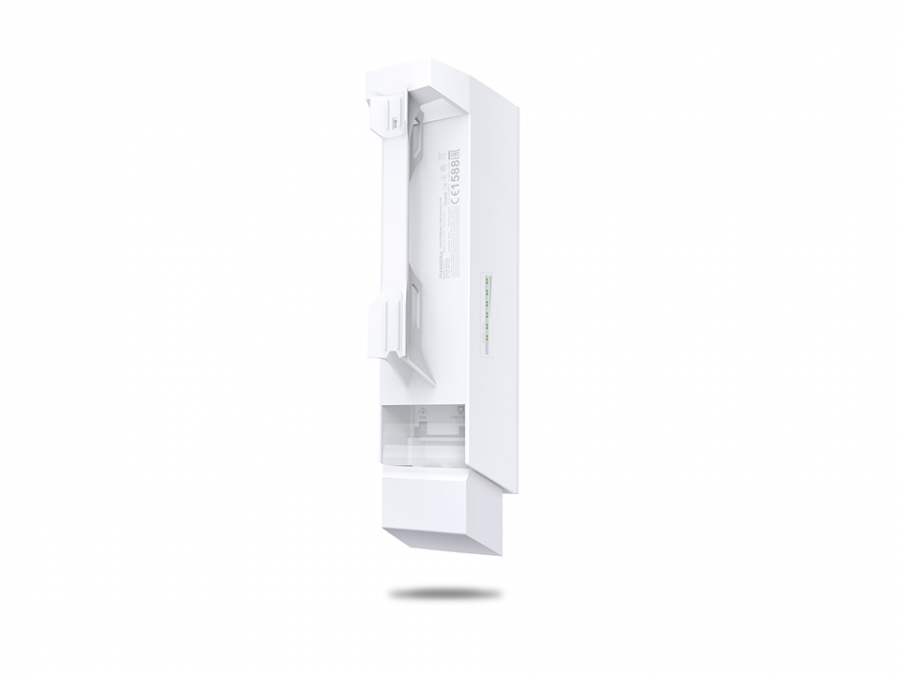

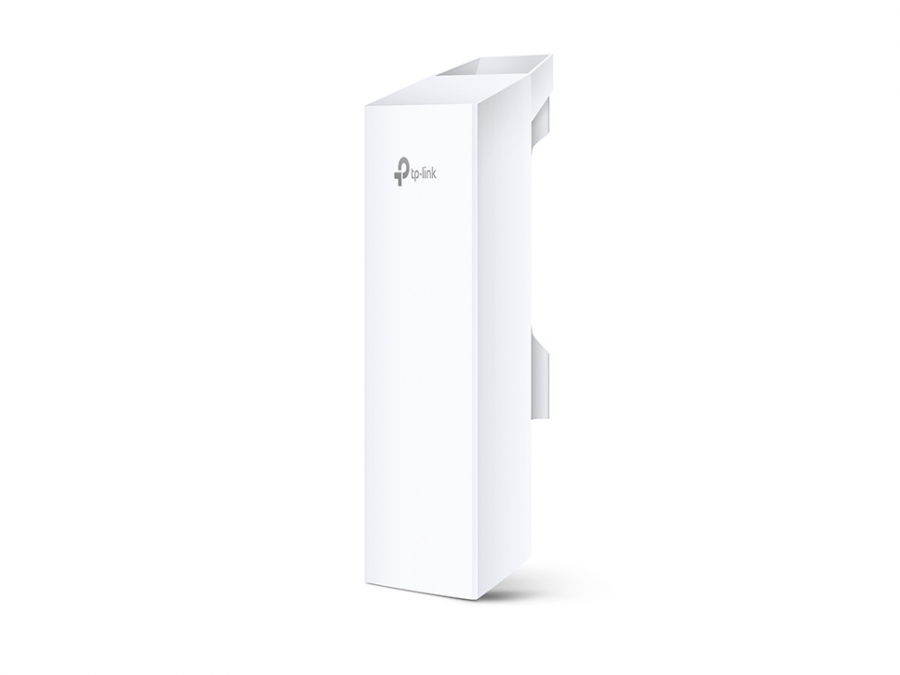

WL-AP TP-Link Access Point CPE210 (300MBit) Outdoor 2,4GHz

Manufacturer: TP-LINK

Kods CPE210

Condition: Jauns

Vairāk informācijas

TP-Link’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.Enterprise HardwareWith Qualcomm Atheros level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70℃ (158℉).Advanced Antenna SystemBuilt-in High Gain Dual-Polarized Antenna Dedicated metal reflector ensures higher gain and lower noise interference5km+ Wireless Data TransmissionSpecially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.TP-Link MAXtream TDMA TechnologyAs network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.Pharos Control – Centralized Management SystemCPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

2.4 GHz	Y
5 GHz	N
Maximum data transfer rate	300 Mbit/s
Frequency band	2.4 - 2.483 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Automatic channel selection	Y
Automatic channel scanning	Y
MIMO	Y
VLAN support	Y
Dynamic Frequency Selection (DFS)	Y
Maximum outdoor range	5000 m
Security algorithms	AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
MAC address filtering	Y
IGMP snooping	Y
Web-based management	Y
Management platform	Pharos Control
Ethernet LAN (RJ-45) ports	2
Power over Ethernet (PoE)	Y
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	24 V
Output current	0.25 A
Placement	Pole
Product colour	White
International Protection (IP) code	IPX5
Reset button	Y
LED indicators	Status
Certification	CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark CE, FCC, RoHS
Antenna type	Internal
Antenna direction type	Directional
Antenna gain level (max)	9 dBi
Polarization	Dual polarization
Built-in processor	Y
Processor model	Qualcomm Atheros
Processor frequency	560 MHz
Processor architecture	MIPS 74Kc
Flash memory	8 MB
Internal memory	64 MB
Width	224 mm
Depth	79 mm
Height	60 mm
Number of products included	1 pc(s)
Cables included	AC
Mounting kit	Y
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 70 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
