Jauns

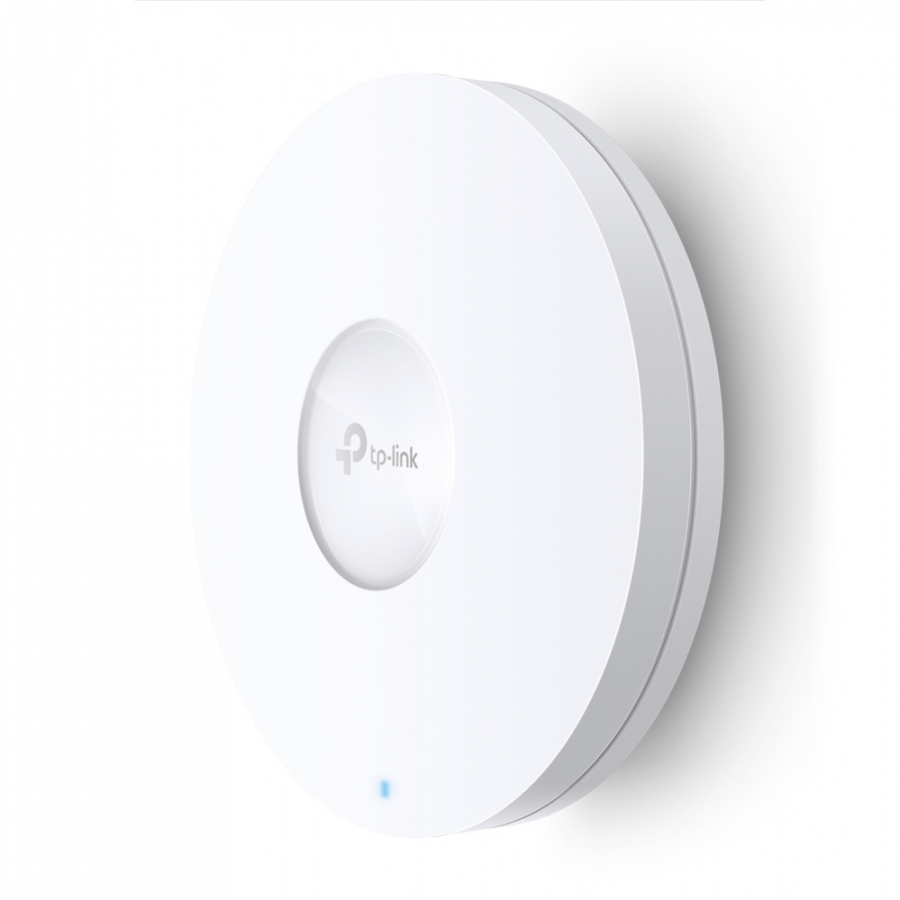

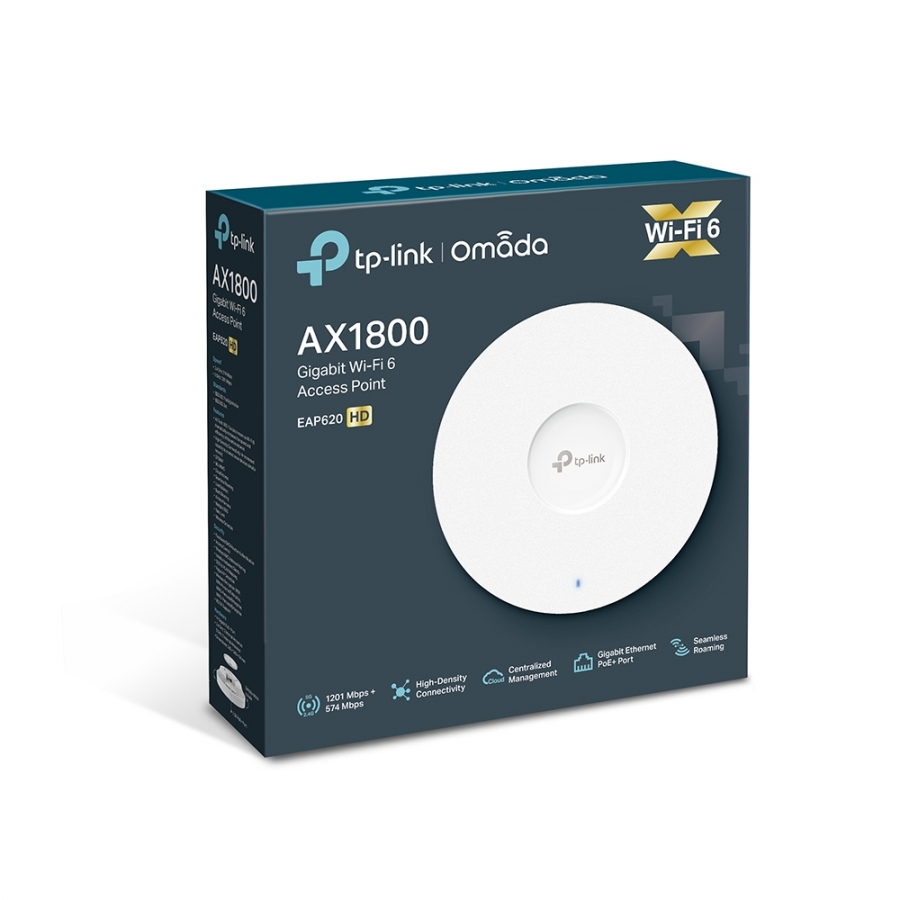

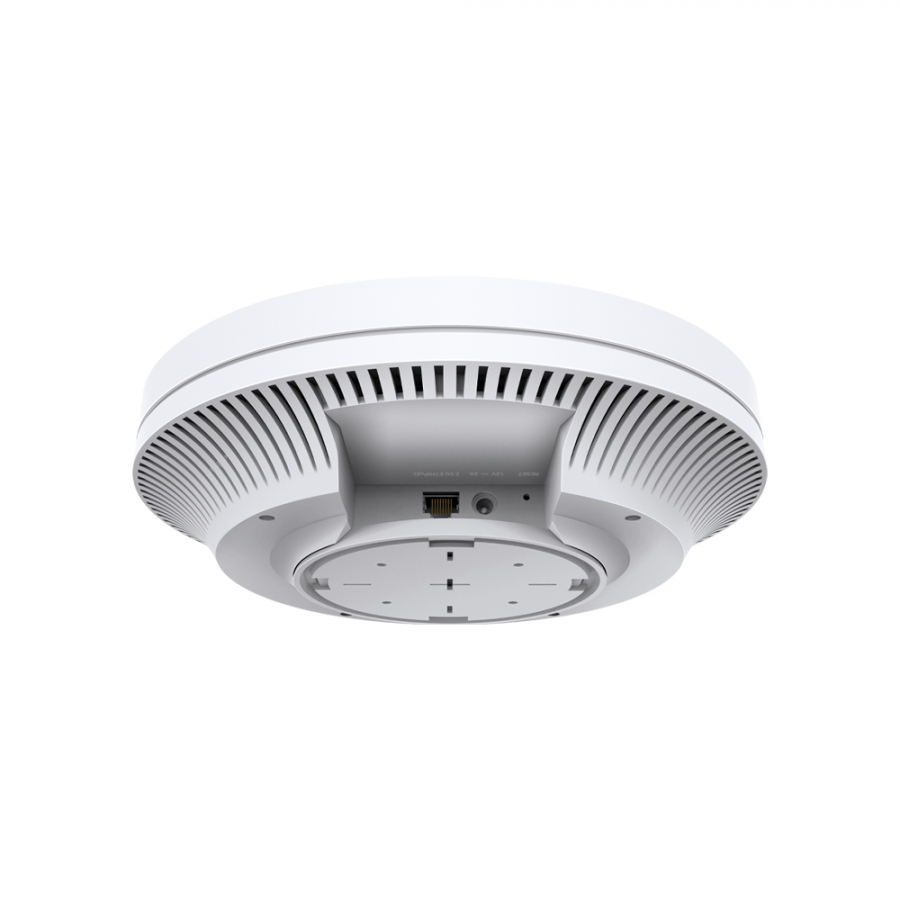

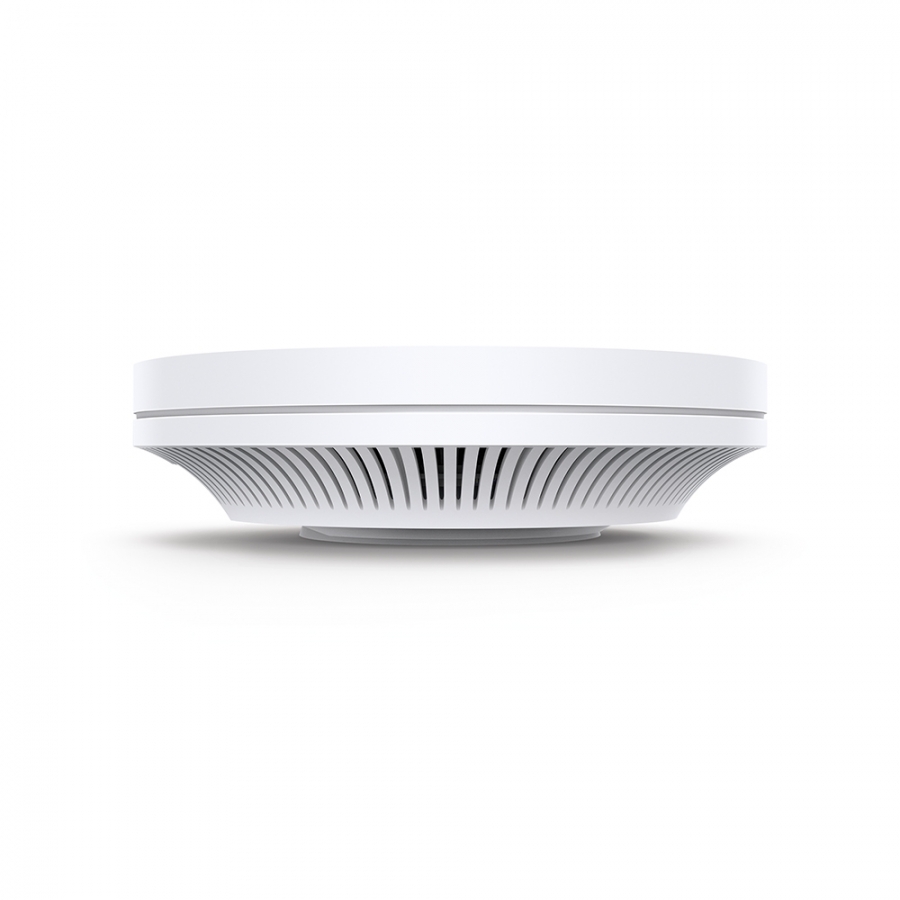

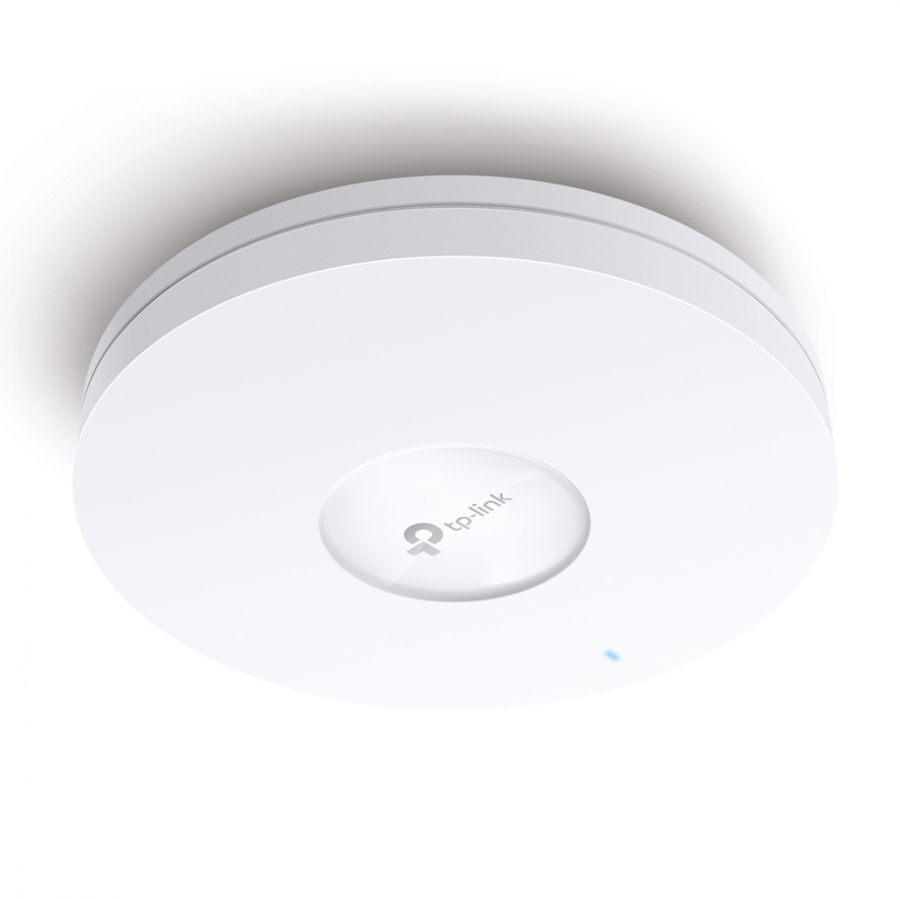

WL-AP TP-Link Access Point EAP620HD (1775MBit)

Manufacturer: TP-LINK

Kods EAP620 HD

Condition: Jauns

Vairāk informācijas

High-Density Connectivity with 4× Increased Capacity OFDMA* and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.Advanced Wi-Fi Speed with 4 Spatial Streams The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.Omada SDN—Smarter Cloud Solution for Business Networking Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.Seamless Roaming 802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.Secure Guest Network with Facebook Wi-Fi and SMS Login Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.

2.4 GHz	Y
5 GHz	Y
6 GHz	N
Maximum data transfer rate	1201 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Ethernet LAN data rates	1000 Mbit/s
Frequency band	2.4 - 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Automatic channel selection	Y
Automatic channel scanning	Y
MIMO	Y
MIMO type	Multi User MIMO
Modulation	1024-QAM, OFDM
Wi-Fi Multimedia (WMM)/(WME)	Y
VLAN support	Y
Virtual LAN features	VLAN mapping
Rate limiting	Y
Wireless isolation	Y
Band steering	Y
Airtime Fairness (ATF)	Y
Quality of Service (QoS) support	Y
Transmitting power (CE)	20/23 dBm
Transmitting power (FCC)	23 dBm
Security algorithms	SNMP, SNMPv2, SNMPv3, SSH, WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK
MAC address filtering	Y
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	16
Remote Authentication Dial-In User Service (RADIUS)	Y
Web-based management	Y
Syslog	Y
Firmware upgradeable	Y
Ethernet LAN (RJ-45) ports	1
DC-in jack	Y
Power over Ethernet (PoE)	Y
Power over Ethernet (PoE) type supported	Active PoE, Passive PoE
Output voltage	12 V
Output current	1.5 A
Power consumption (typical)	12 W
Placement	Ceiling, Wall
Product colour	White
Reset button	Y
Certification	CE, FCC, RoHS
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna gain level (max)	6 dBi
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Width	160 mm
Depth	160 mm
Height	33 mm
Number of products included	1 pc(s)
AC adapter included	Y
Quick start guide	Y
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Harmonized System (HS) code	85176990
