> >>WL-USB TP-Link TL-WN822N (300MBit)
Jauns WL-USB TP-Link TL-WN822N (300MBit)
Previous Next

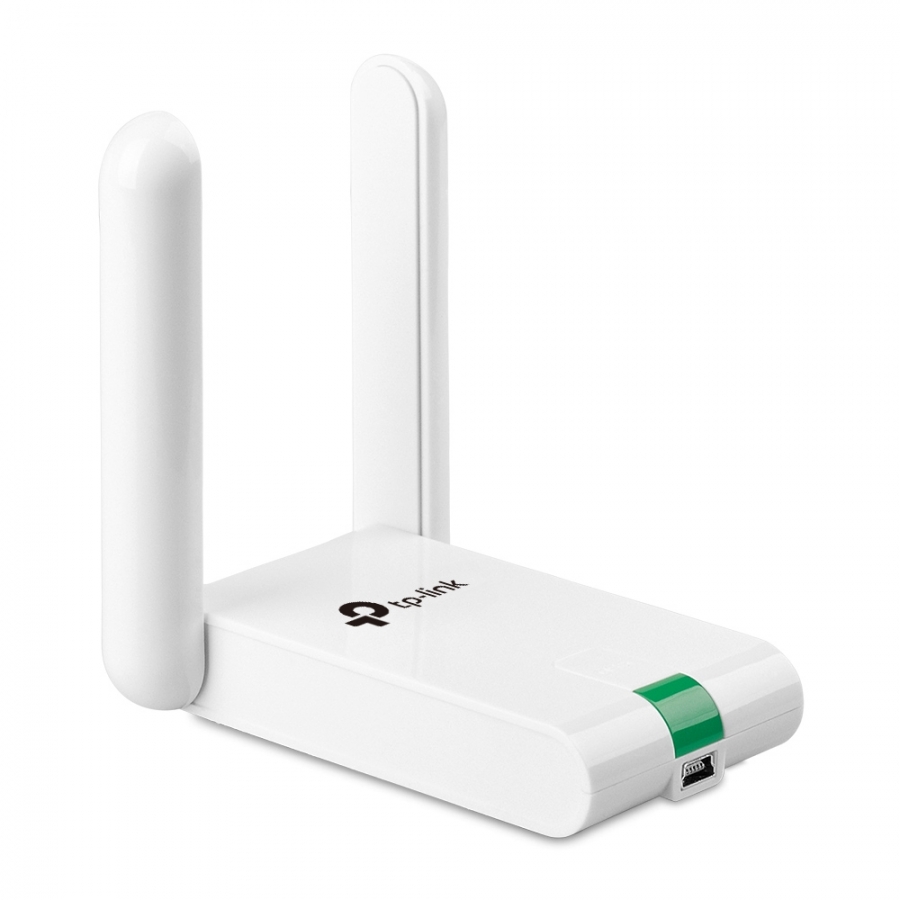

WL-USB TP-Link TL-WN822N (300MBit)

TP-LINK

TL-WN822N

Jauns

Boost Wi-Fi Coverage,
Boost Surfing
Experience
300Mbps High Gain
Wireless USB Adapter

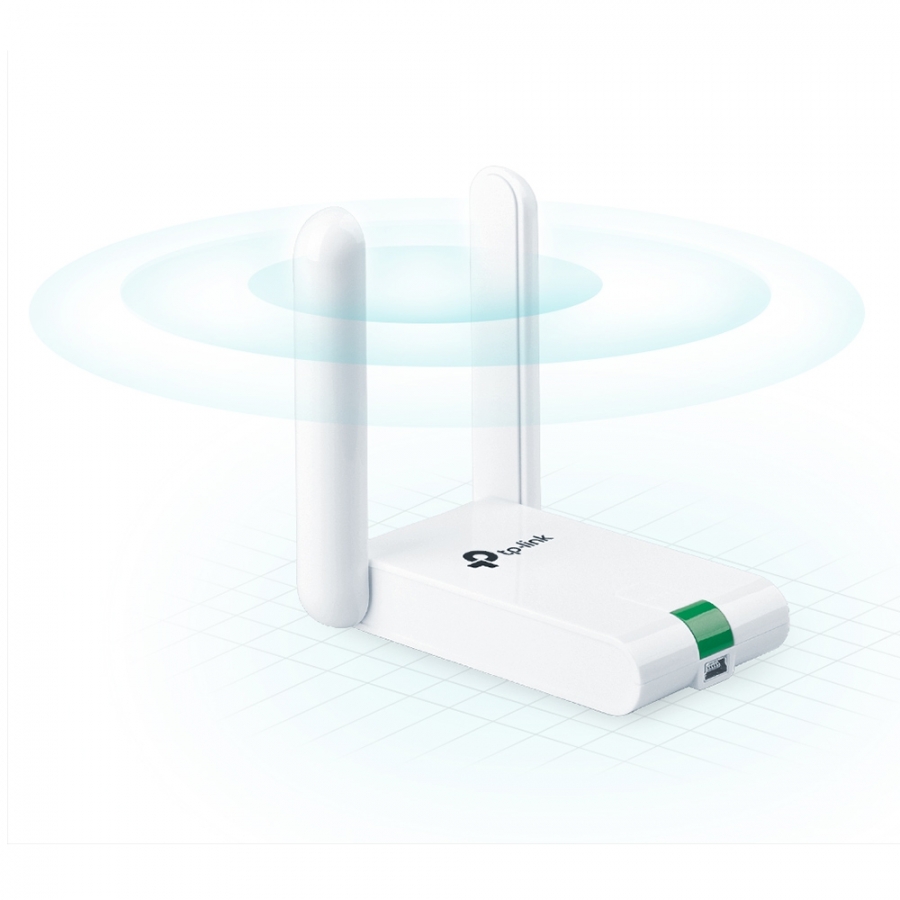

Stronger Coverage with High-Gain External Antennas
The TL-WN822N has two high-gain external antennas to insure stronger signal transmission and reception, which helps you to access a stable Wi-Fi connection across your home, even when your router is on a different floor.

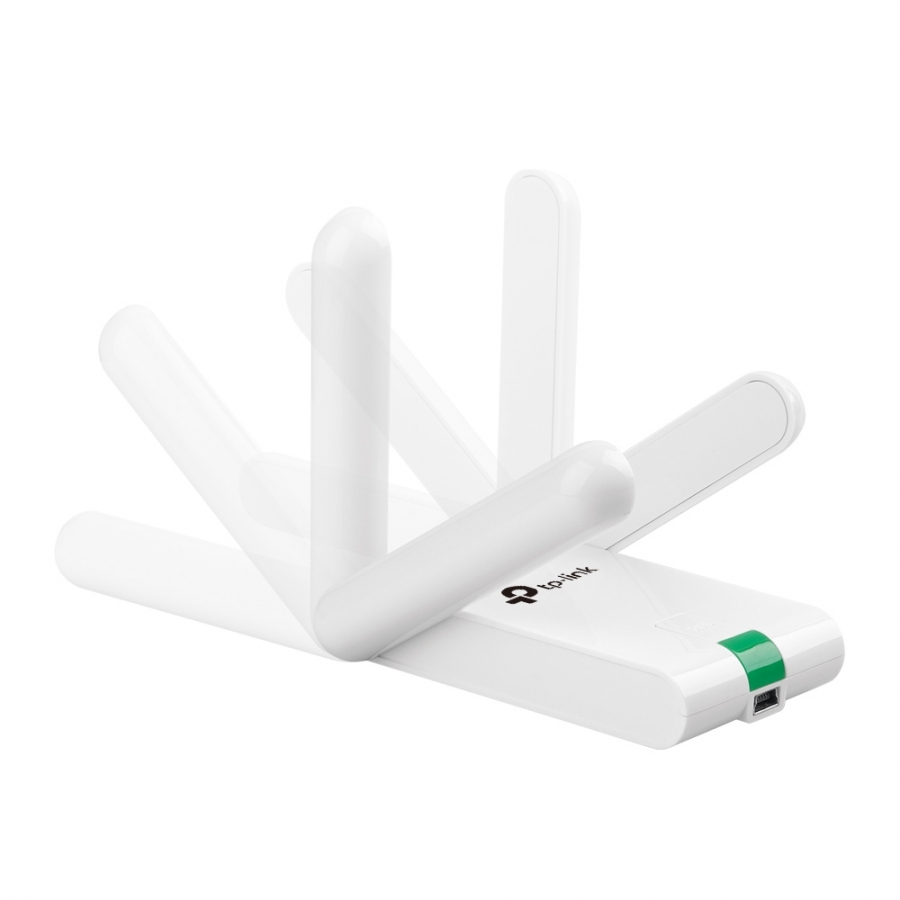

Easy Use with a Friendly Design

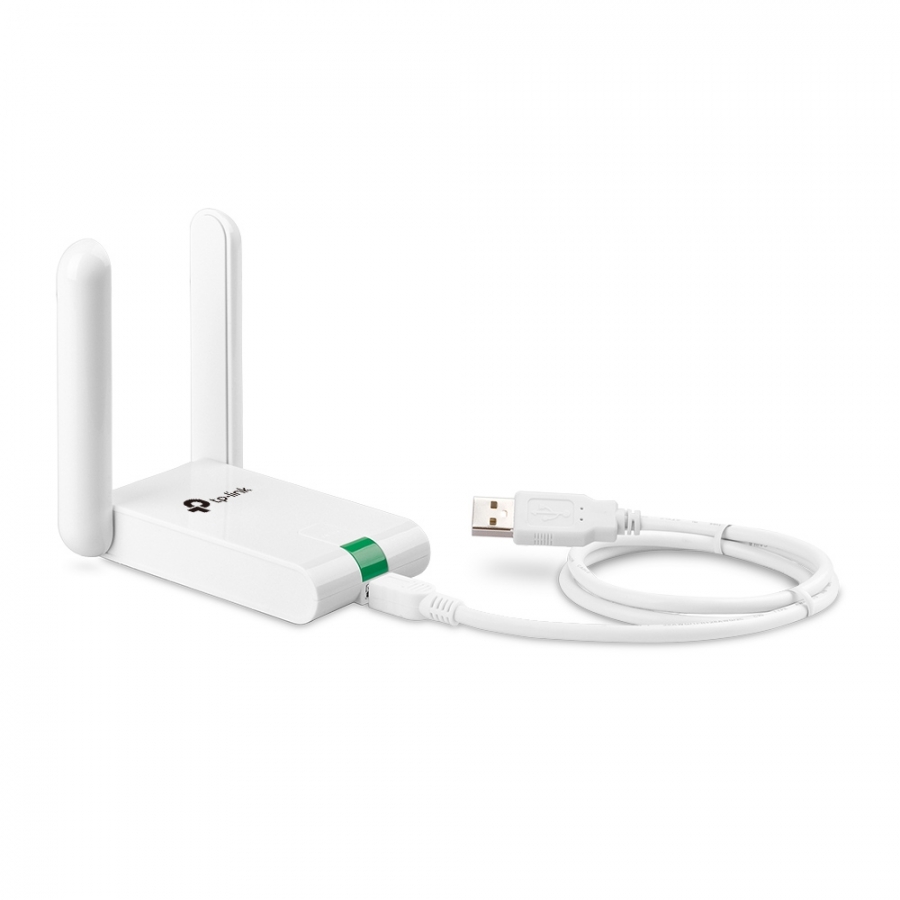

The desktop-style design is beneficial for the signal reception in various application environments. TL-WN822N also provides 1.5m USB extension cable, which is convenient for your installation, even for the desktop equipment.

Easy Setup
A friendly user interface on a CD for simple installation

WPS Button
Easy wireless security encryption at a push of the WPS button

Operating System
Supports Windows, Mac OS, Linux

Connectivity technologyWireless
Host interfaceMini-USB
InterfaceWLAN
USB ports quantity1
USB version2.0
Maximum data transfer rate300 Mbit/s
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-FiY
Wi-Fi bandSingle-band (2.4 GHz)
Frequency range2.4 - 2.4835 GHz
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported11,54,300 Mbit/s
Modulation16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Security algorithms64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK
InternalN
Product colourWhite
AntennaY
Antenna designExternal
Antenna type2x Omni
Antenna direction typeOmni-directional
Antenna gain level (max)3 dBi
Receiver sensitivity270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
CertificationCE, FCC, RoHS
Compatible operating systemsWindows 2000 / XP / Vista / 7
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1, Windows XP
Mac operating systems supportedY
Linux operating systems supportedY
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Width90 mm
Depth68 mm
Height16.8 mm
Package width200 mm
Package depth150 mm
Package height39 mm
Package weight210 g
Cables includedUSB
Resource CDY
Quick installation guideY
Harmonized System (HS) code85176990
Gain3 dBi
Compliance industry standardsIEEE 802.11b/g/n
Dimensions (WxDxH)90 x 68 x 16.8 mm
Cable length1.5 m
Operating temperature (T-T)32 - 104 °F
Dimensions (W x D x H) (imperial)88.9 x 68.6 x 17.8 mm (3.5 x 2.7 x 0.7")
