TP-Link WL-AP Access Point EAP230-Wall (AC1200)

Manufacturer: TP-LINK

Kods EAP230-WALL

Condition: Jauns

Vairāk informācijas

Unprecedented Thin Design with 11mm
Omada EAP230-Wall
AC Access Point

Private Connection for Every Room.
EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.

MU-MIMO + Dual-Band: Faster Connection for More Devices
802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.

Seamlessly Blends with any Décor
The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.

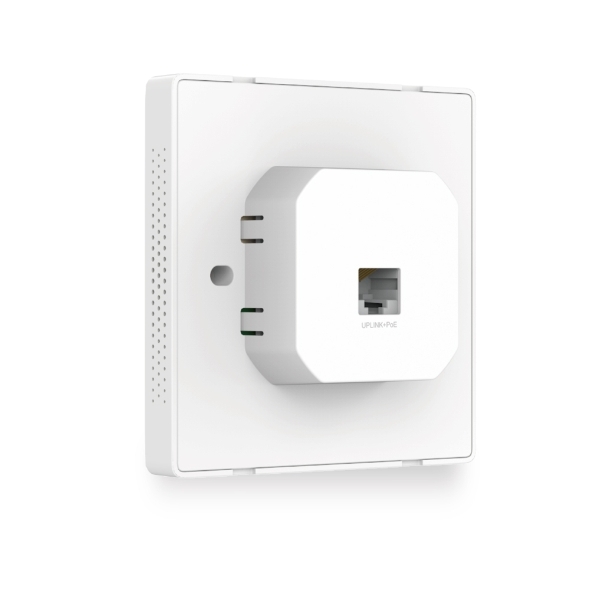

High-Speed Gigabit Port
Equipped with a Gigabit port to deliver the fastest possible wired transmission.

Effortless Deployment with Power over Ethernet
802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.

Quick, Simple Installation
1.Detach and remove the faceplate of the junction box.
2.Plug an Ethernet cable in to the port.
3.Secure the Access Point to the wall using the provided screws.
4.Press the faceplate back into position.

Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

2.4 GHz	Y
5 GHz	Y
6 GHz	N
Maximum data transfer rate	867 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology	10/100/1000Base-T(X)
Automatic channel selection	Y
Automatic channel scanning	Y
MIMO	Y
MIMO type	Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)	Y
VLAN support	Y
Rate limiting	Y
Quality of Service (QoS) support	Y
Transmitting power (CE)	20 - 23 dBm
Security algorithms	64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK
MAC address filtering	Y
Number of SSID supported	16
Access Control List (ACL)	Y
Secure File Transfer Protocol (SFTP) using SSH v2	Y
Web-based management	Y
Syslog	Y
Ethernet LAN (RJ-45) ports	1
WAN connection	Ethernet (RJ-45)
Power over Ethernet (PoE)	Y
Power consumption (typical)	7 W
Placement	Wall
Product colour	White
LED indicators	Operation
Certification	CE, RoHS
Antenna type	Internal
Antennas quantity	2
Antenna gain level (max)	3.6 dBi
Compatible operating systems	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Width	86.8 mm
Depth	30.2 mm
Height	86.8 mm
Number of products included	2 pc(s)
Mounting kit	Y
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Harmonized System (HS) code	85176990
