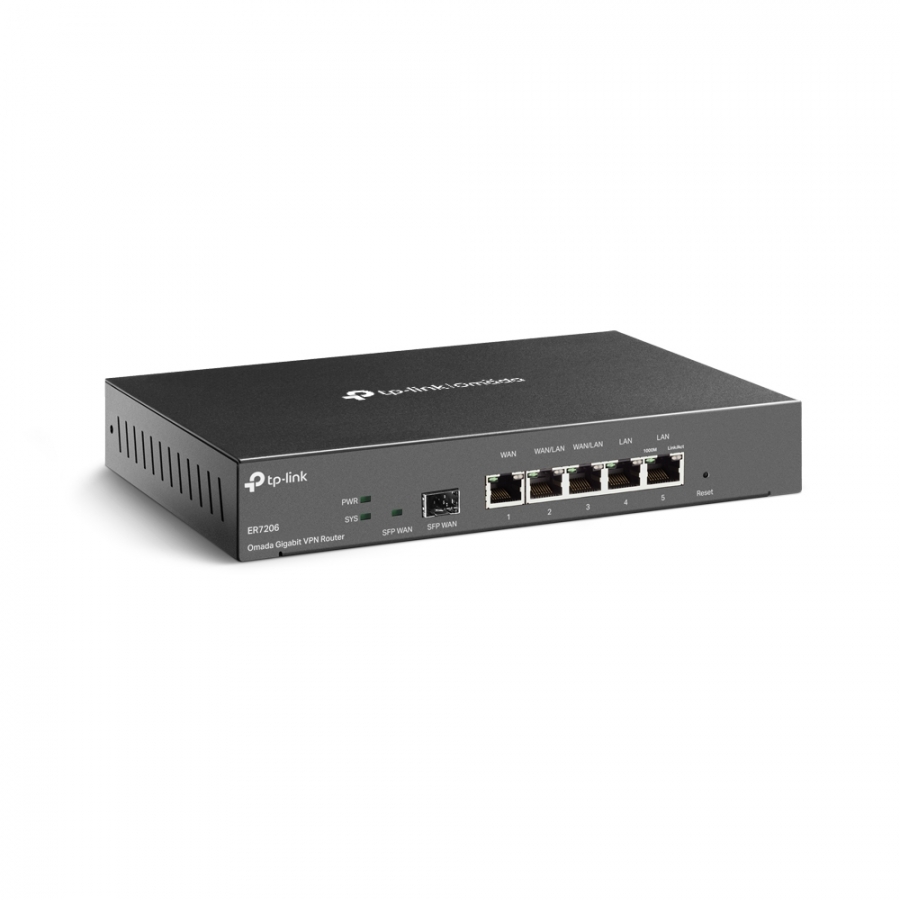

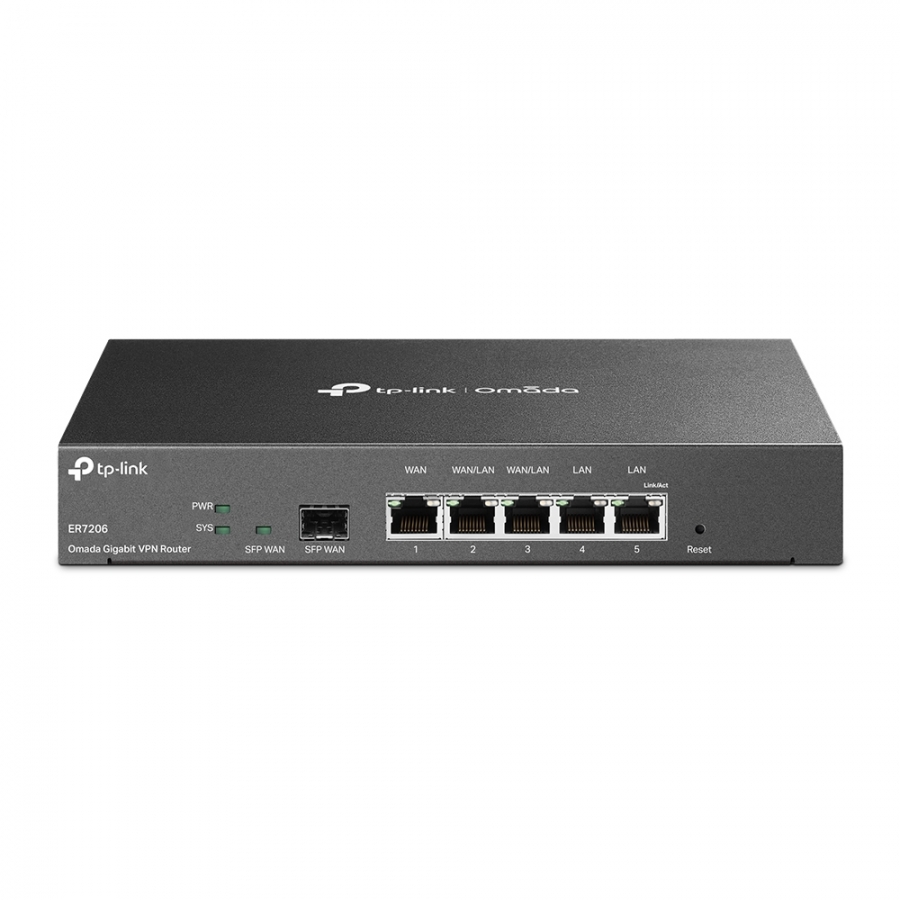

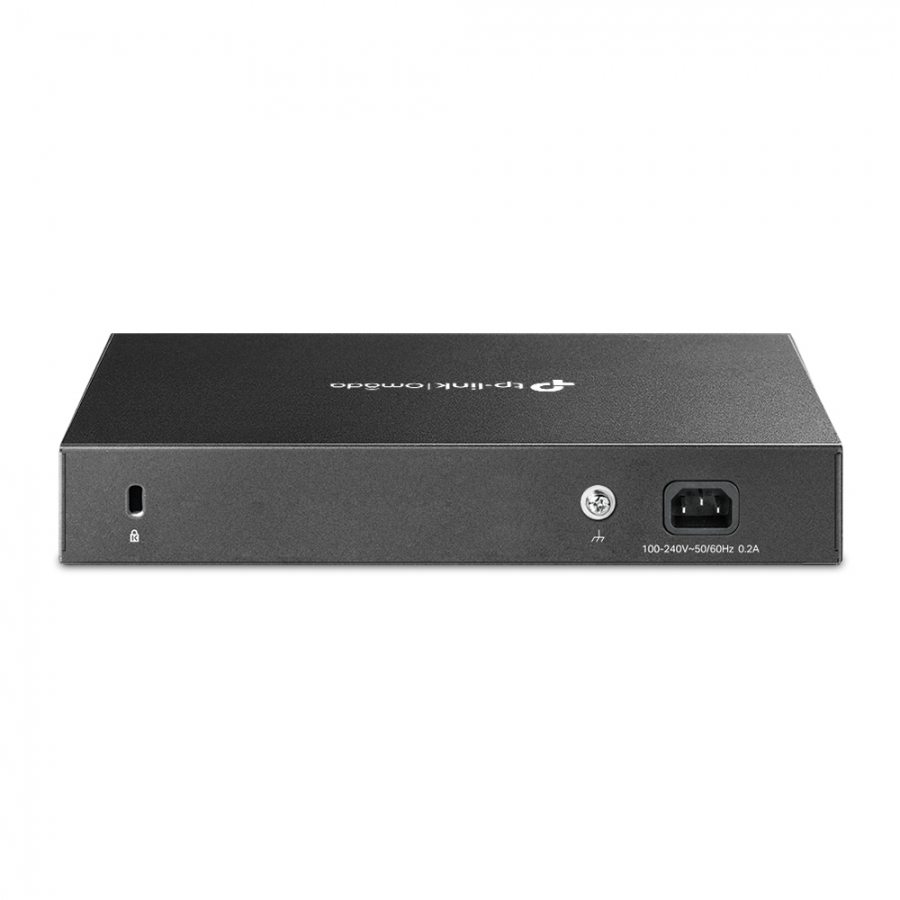

TP-Link WL-Router ER7206 Gigabit Multi-WAN VPN Router

Manufacturer: TP-LINK

Kods ER7206

Condition: Jauns

Vairāk informācijas

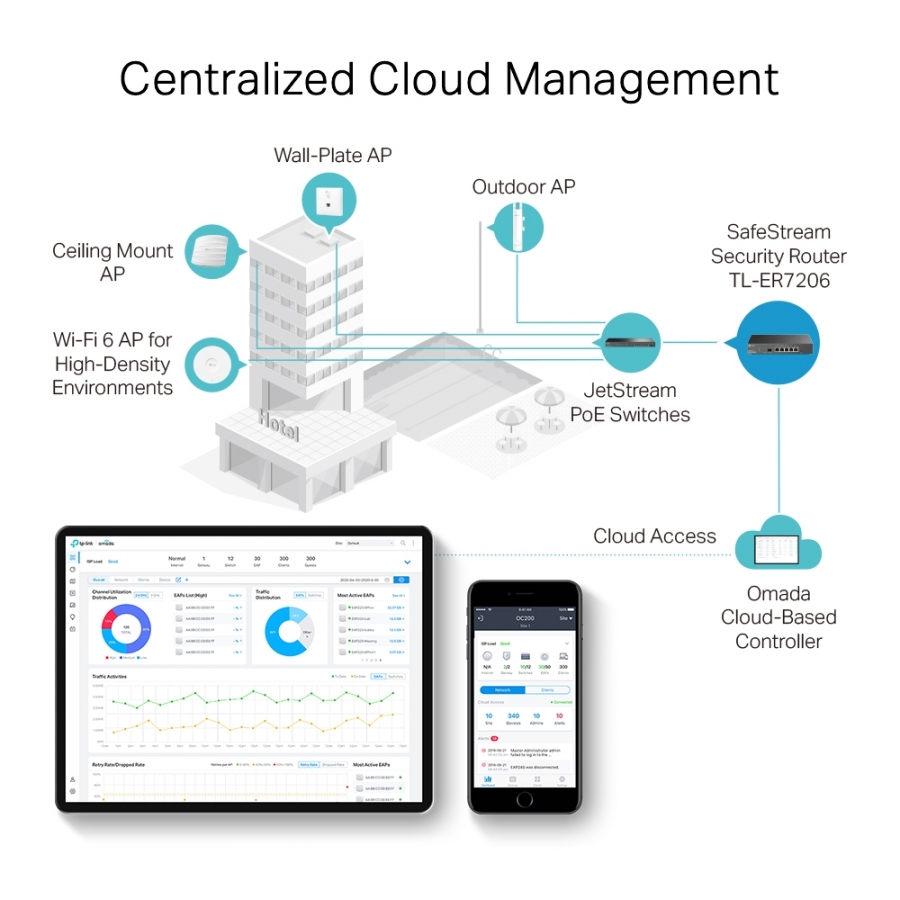

Omada SDN—The Smarter Cloud Solution for Business Networking
As the gateway that seamlessly integrates into the Omada Software Defined Networking (SDN) platform, ER7206 allows for remote and centralized management, anywhere, anytime. Standalone management via the Web UI or app is also available to maximize convenience.

Up to Four WAN Gigabit Ports to Optimize Bandwidth Usage
One gigabit SFP WAN port, one gigabit RJ45 WAN port, and two freely interchangeable WAN/LAN ports allow the router to support up to four WAN ports to satisfy various internet access requirements through one device. The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broadband.

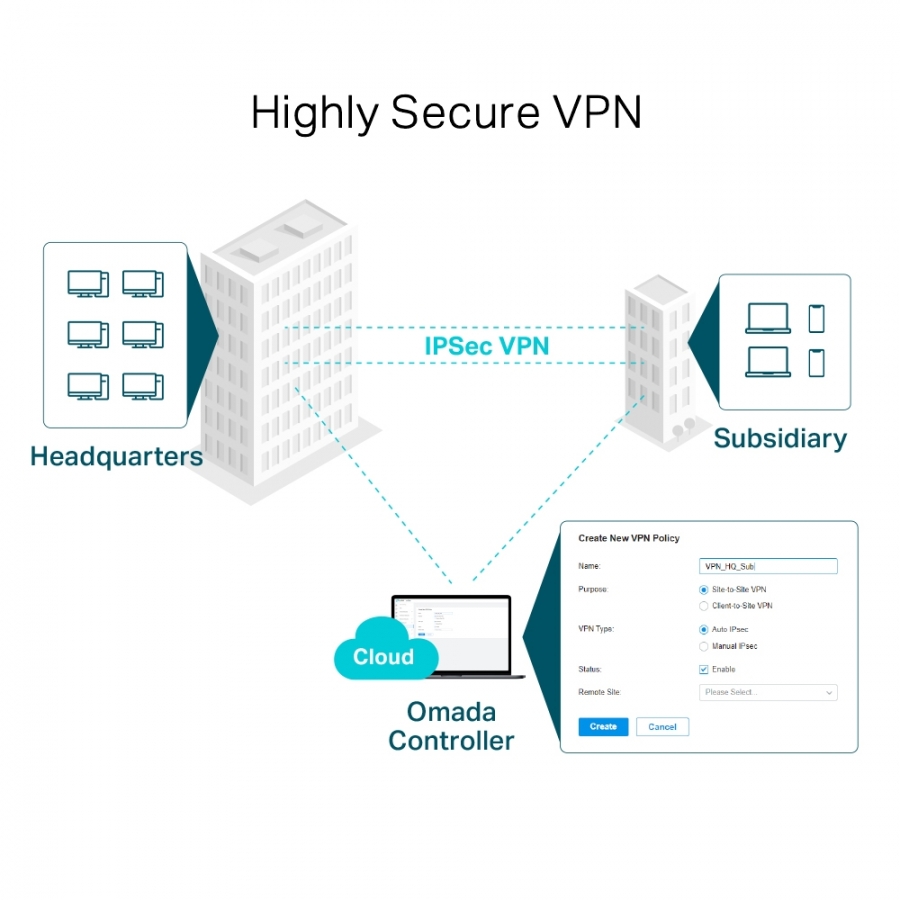

Highly Secure VPN
ER7206 supports IPSec/PPTP/L2TP VPN over IPSec/SSL protocols. With a powerful hardware design, the router supports and manages up to 100× LAN-to-LAN IPSec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections. One-click auto IPSec VPN* greatly simplifies VPN configuration and facilitates network management and deployment while also securing and encrypting private site-to-site data communications traveling over the internet.

Internet Access Management Strategy
Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL). Captive Portal authentication facilitates network resource control by capturing, authenticating, and classifying user access. Appropriate network resources can also be allocated for particular users or guests.

Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.

Ethernet WAN	Jā
DSL WAN	Nē
SIM card slot	Nē
3G/4G USB modem compatibility	Nē
SFP WAN	Jā
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10,100,1000 Mbit/s
Static route	Jā
VLAN support	Jā
Policy-based routing	Jā
Web-based management	Jā
Universal Plug and Play (UPnP)	Jā
Reset button	Jā
Ethernet LAN (RJ-45) ports	4
DHCP server	Jā
DMZ support	Jā
Supported network protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP
Security algorithms	3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, IPSEC, MD5, SHA-1, SNMP, SNMPv2, SNMPv3
Firewall	Jā
Firewall security	SPI
URL filtering	Jā
ARP attack prevention	Jā
Access Control List (ACL)	Jā
System event log	Jā
VPN support	IPSec VPN, PPTP VPN, L2TP VPN, OpenVPN
Flash memory	132 MB
Internal memory	512 MB
Internal memory type	DRAM
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Mac operating systems supported	Jā
Linux operating systems supported	Jā
Certification	CE, FCC, RoHS
Product colour	Black
LED indicators	Activity, Link, Power, System, WAN
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	226 mm
Depth	131 mm
Height	35 mm
Cables included	AC
Quick installation guide	Jā
Package width	226 mm
Package depth	288 mm
Package height	72 mm
Package weight	1.32 kg
Harmonized System (HS) code	85176990
