| Antenna gain level (max) | 10 dBi |
| Frequency band | 5.4 ~ 5.835 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 9.6° |

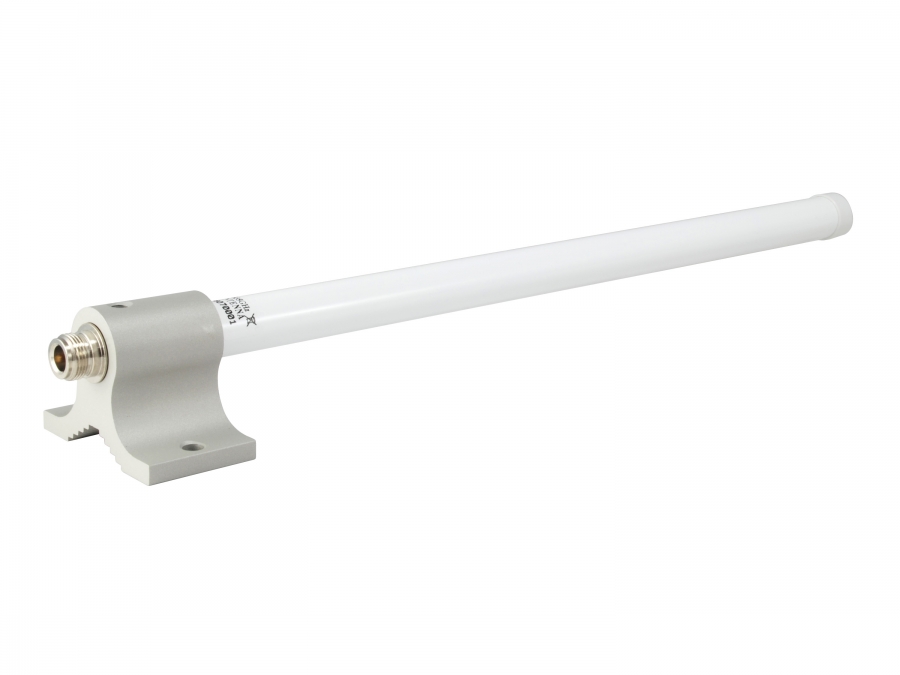

| Antenna type | Omni-directional antenna |

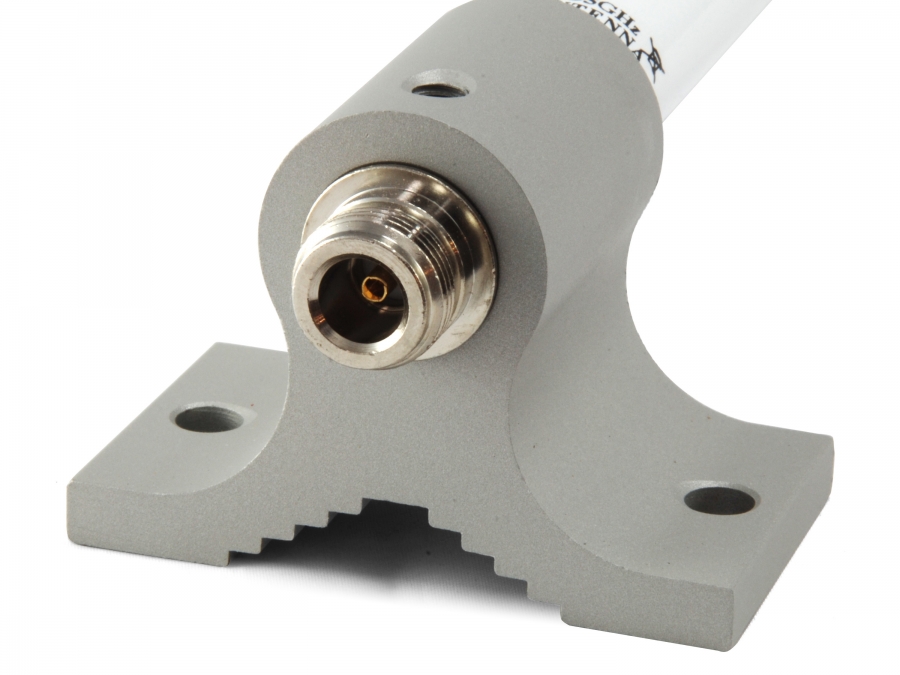

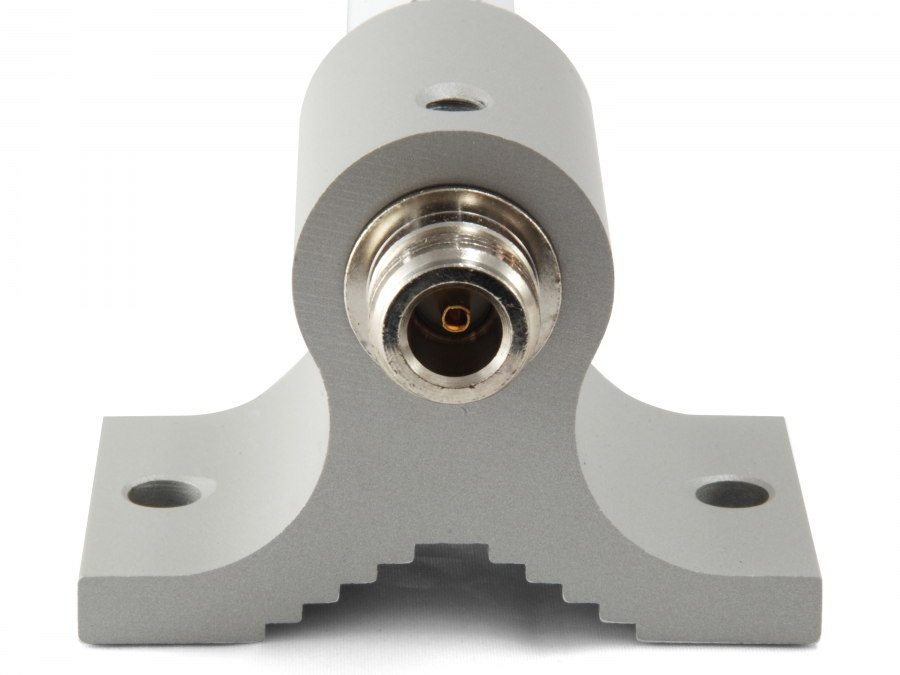

| Antenna connector type | N-type |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0 |
| Protection features | Dust resistant, Snow resistant, Water resistant |
| Survival wind speed | 180 km/h |
| Mounting | Pole |
| Purpose | Indoor & outdoor |
| Maximum cable loss with connectors | -10 dB |
| Country of origin | Taiwan |
| Product colour | White |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Width | 70 mm |
| Depth | 409 mm |
| Height | 53 mm |
| Weight | 262 g |
| Package width | 86 mm |
| Package depth | 472 mm |
| Package height | 72 mm |
| Package weight | 470 g |

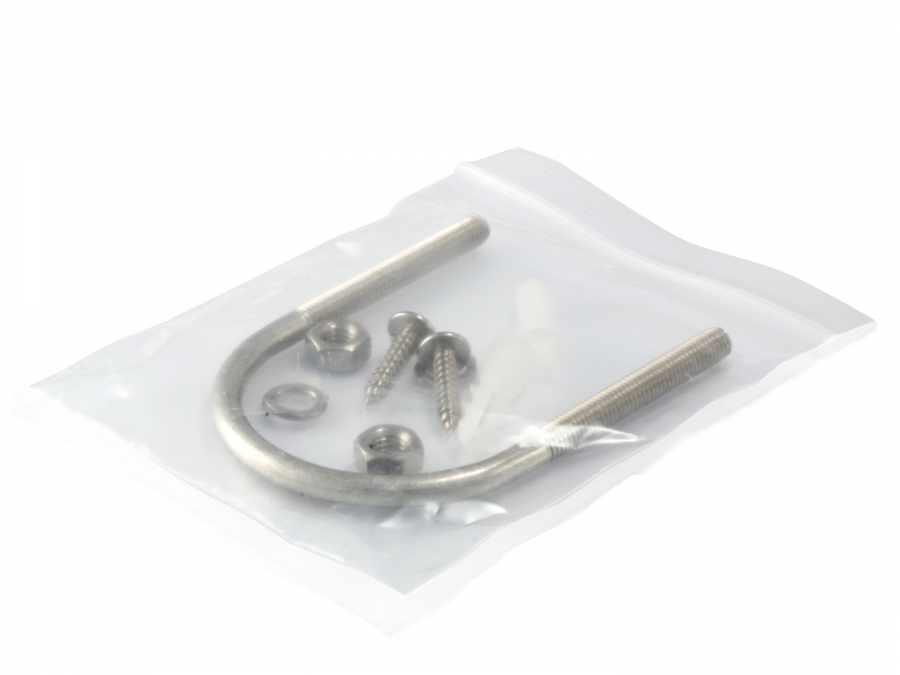

| Mounting kit | Y |
| Quick installation guide | Y |
| Package type | Box |
| Harmonized System (HS) code | 85177100 |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 465 mm |
| Master (outer) case height | 505 mm |
| Master (outer) case gross weight | 11 kg |
| Products per master (outer) case | 20 pc(s) |
