Level One LevelOne Antenne panel direktional innen/außen 2.4GHz 12dBi

LEVEL ONE

WAN-2121

Jauns

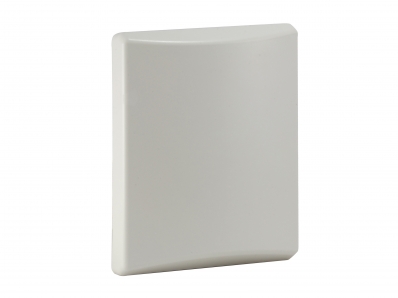

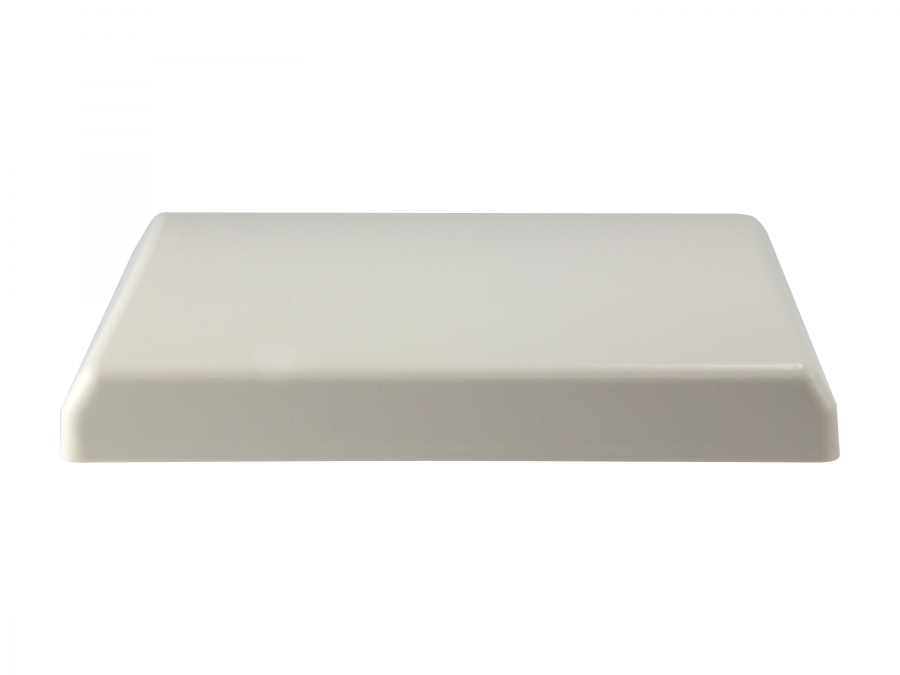

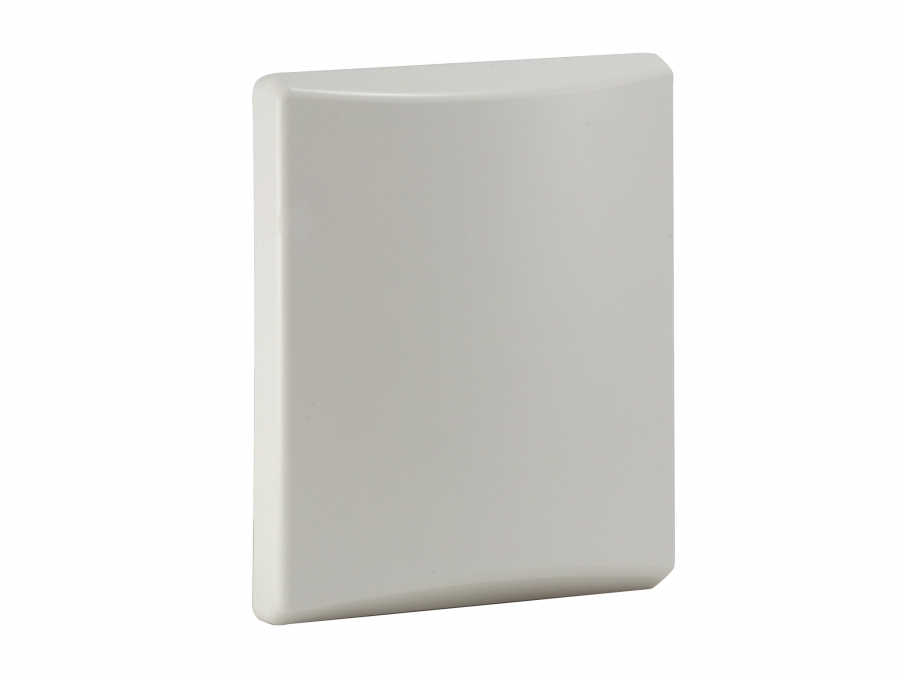

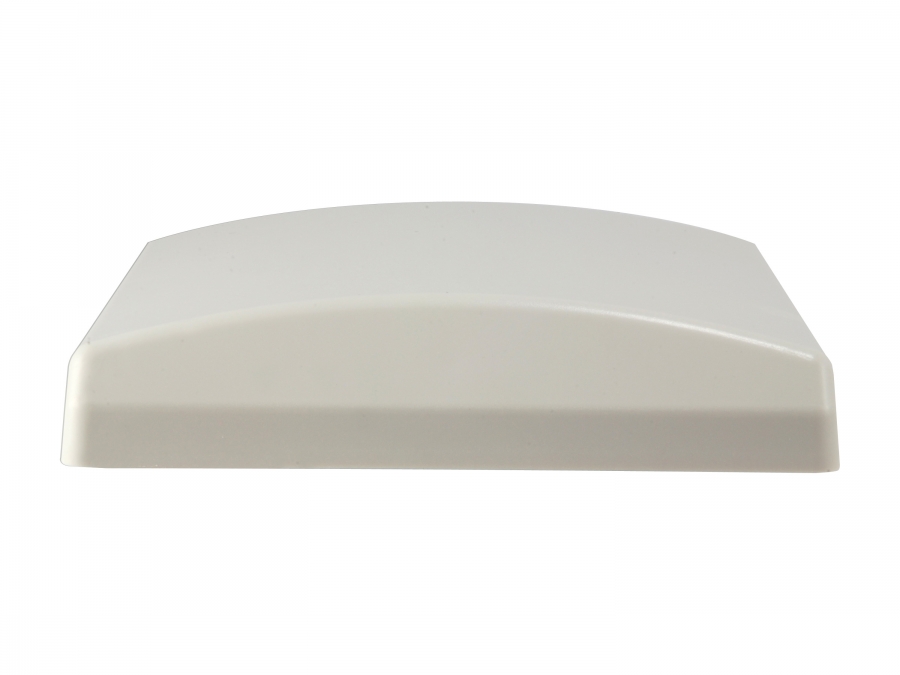

The LevelOne WAN-2121 is a directional antenna for increased performance and reduced interference, operating on the 2.4 GHz frequency. WAN-2121 can be mounted either indoors or outdoors. The antenna’s gain value is 12dBi, and if mounted outdoors the weatherproof housing can withstand temperatures from minus 30°C up to 60°C, as well as rain, snow, dust and other harsh conditions.- Provides 12dBi directional operation - Directional operation provides extended point to point coverage - For IEEE 802.11b/g/n/ac Wireless applications in 2.4GHz frequency range - Low wind loading

Antenna gain level (max)12 dBi
Frequency band2.4 GHz
Networking standardsIEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Impedance50 Ω
Horizontal beam width50.1°
Vertical beam width39.1°
Antenna typeDirectional antenna
Antenna connector typeN-type
PolarizationVertical polarization
Voltage Standing Wave Ratio (VSWR)2.0
Protection featuresDust resistant, Snow resistant, Water resistant
Survival wind speed180 km/h
PurposeIndoor & outdoor
Maximum cable loss with connectors-10 dB
Country of originTaiwan
Product colourGrey
Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%
Width140 mm
Depth166 mm
Height30 mm
Weight304 g
Package width185 mm
Package depth85 mm
Package height85 mm
Package weight790 g

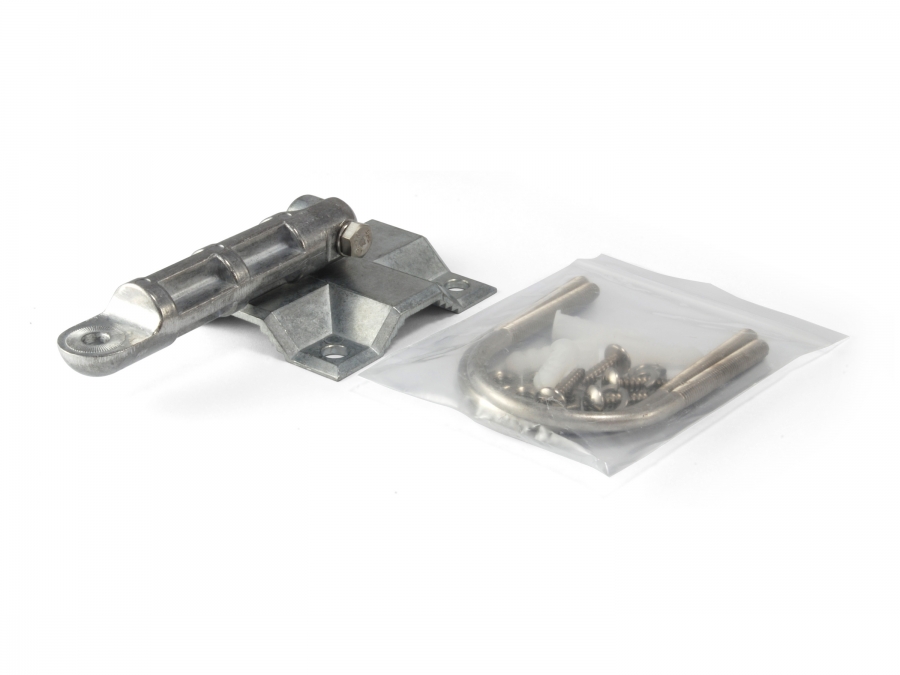

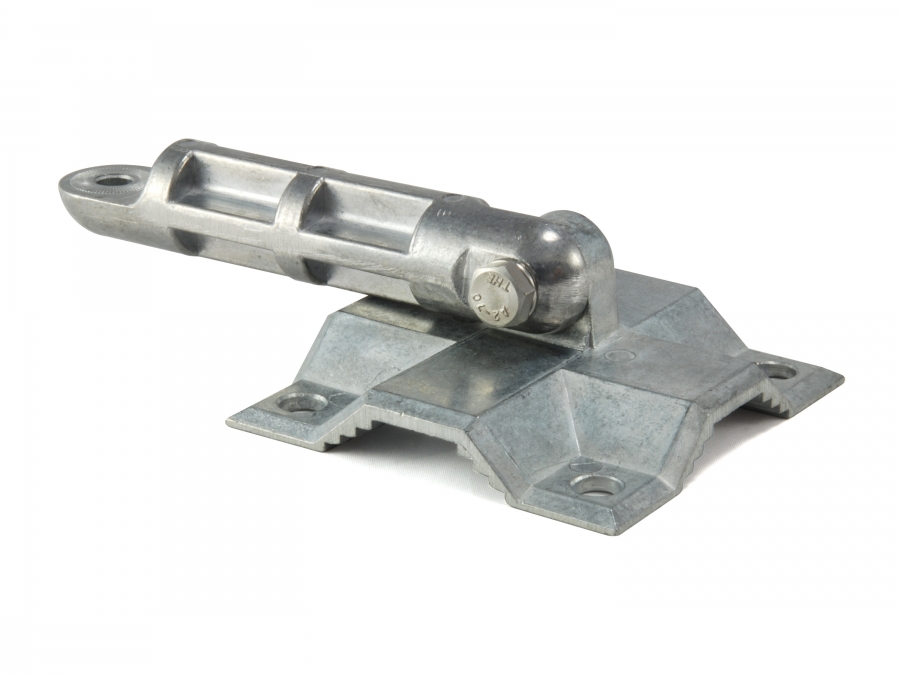

Mounting kitY
Quick installation guideY
Package typeBox
Harmonized System (HS) code85177100
Master (outer) case width440 mm
Master (outer) case length460 mm
Master (outer) case height390 mm
Master (outer) case gross weight17 kg
Products per master (outer) case20 pc(s)
