| Antenna gain level (max) | 8 dBi |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Gain | 5 / 8 dBi |
| Antenna gain (2.4 GHz) | 5 dBi |
| Antenna gain (5 GHz) | 8 dBi |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 51.7° |
| Horizontal beam width (5 GHz) | 360° |
| Vertical beam width (5 GHz) | 27.7° |
| Antenna type | Omni-directional antenna |

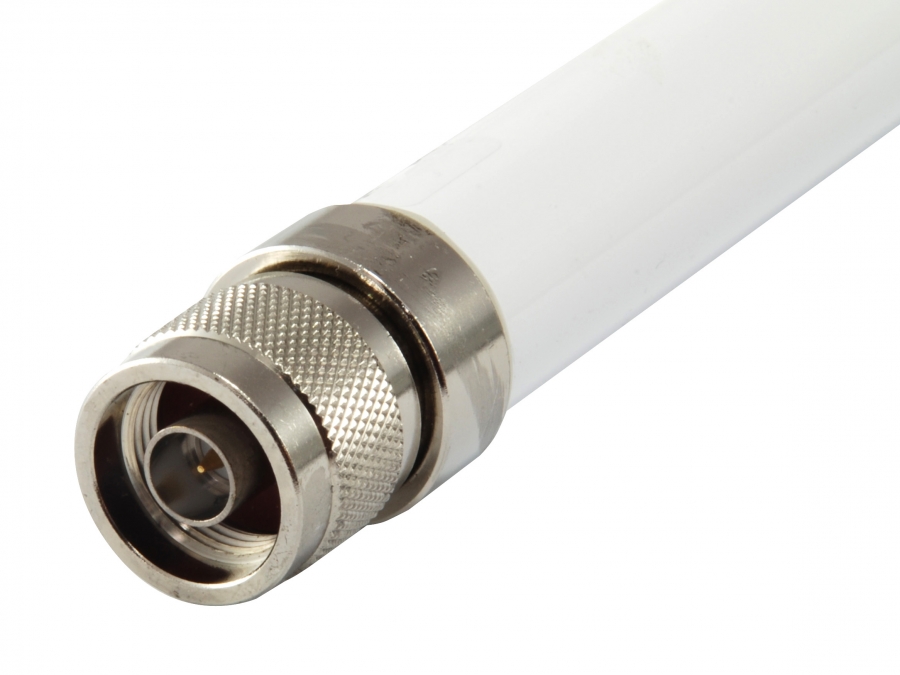

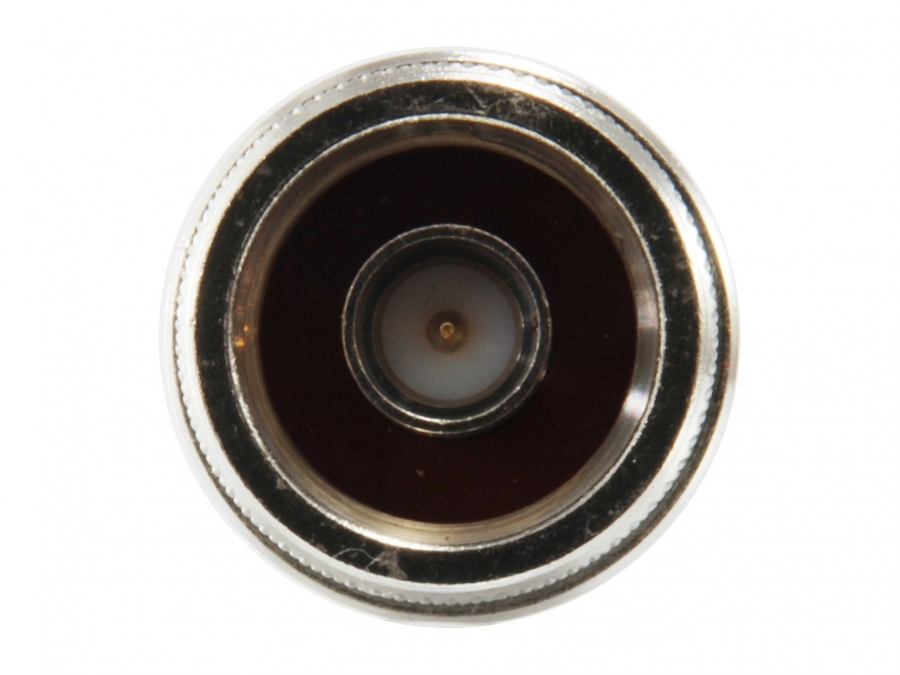

| Antenna connector type | N-type |
| Connector gender | Female |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Country of origin | Taiwan |
| Product colour | White |
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Width | 22 mm |
| Depth | 203 mm |
| Height | 22 mm |
| Weight | 860 g |
| Package width | 70 mm |
| Package depth | 60 mm |
| Package height | 265 mm |
| Package weight | 192 g |
| Quantity per pack | 1 pc(s) |
| Package type | Blister |
| Harmonized System (HS) code | 85177100 |
| Master (outer) case width | 480 mm |
| Master (outer) case length | 560 mm |
| Master (outer) case height | 290 mm |
| Master (outer) case gross weight | 11 kg |
| Master (outer) case volume | 50 cm³ |
| Products per master (outer) case | 50 pc(s) |
