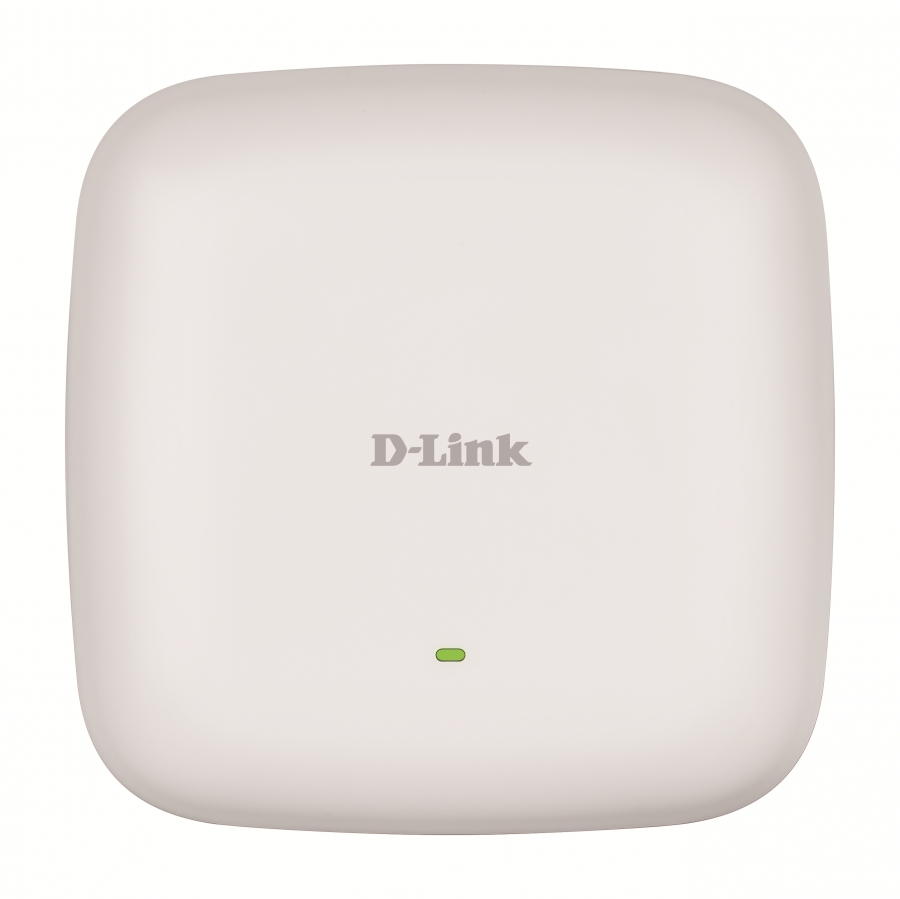

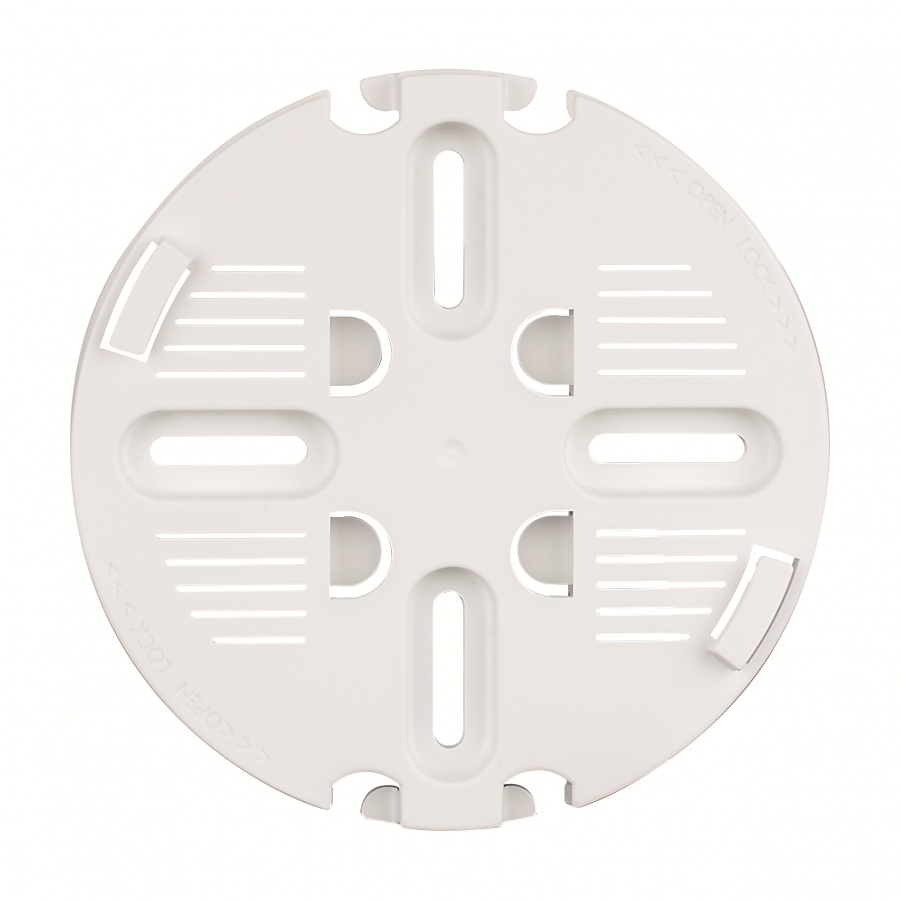

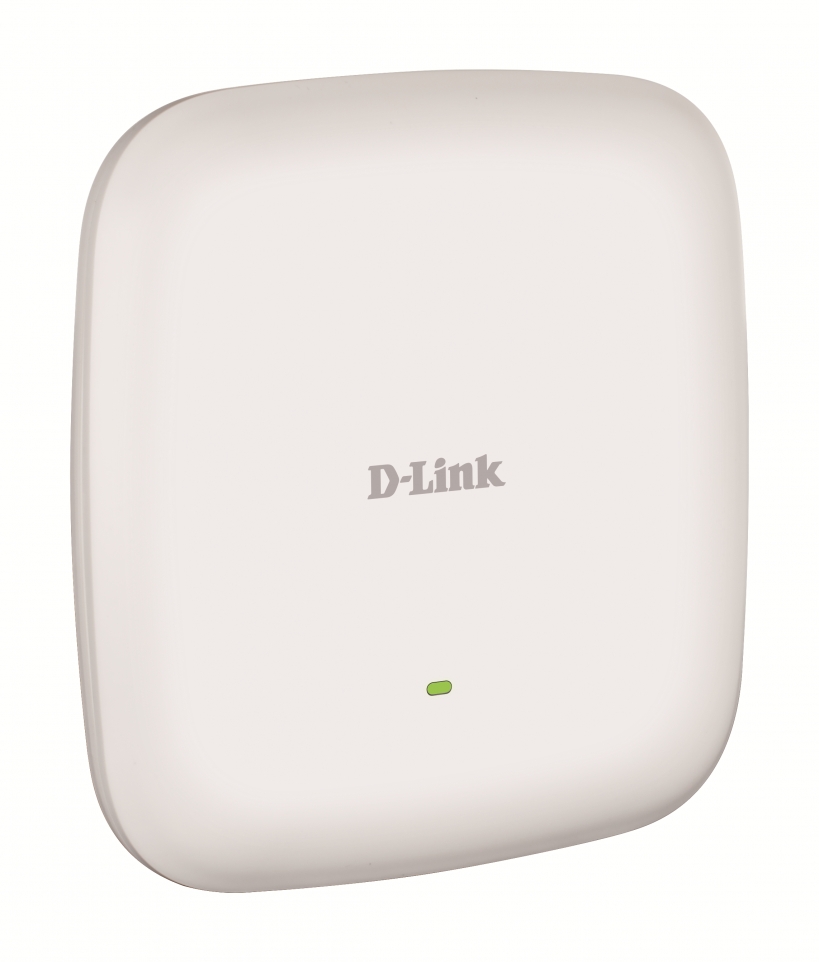

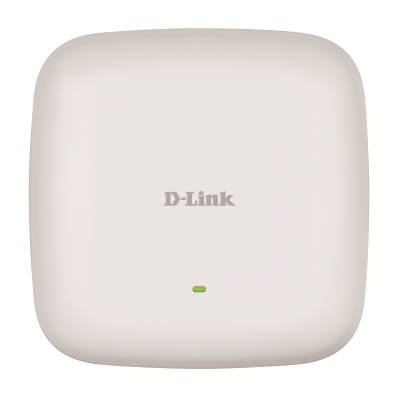

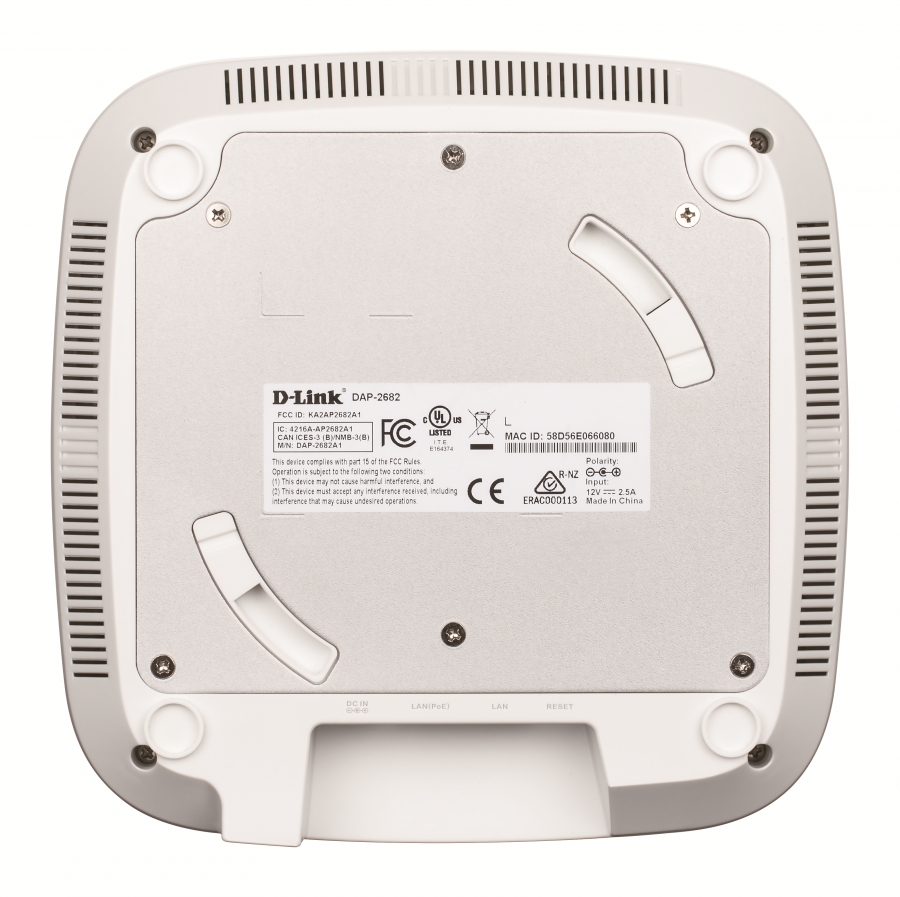

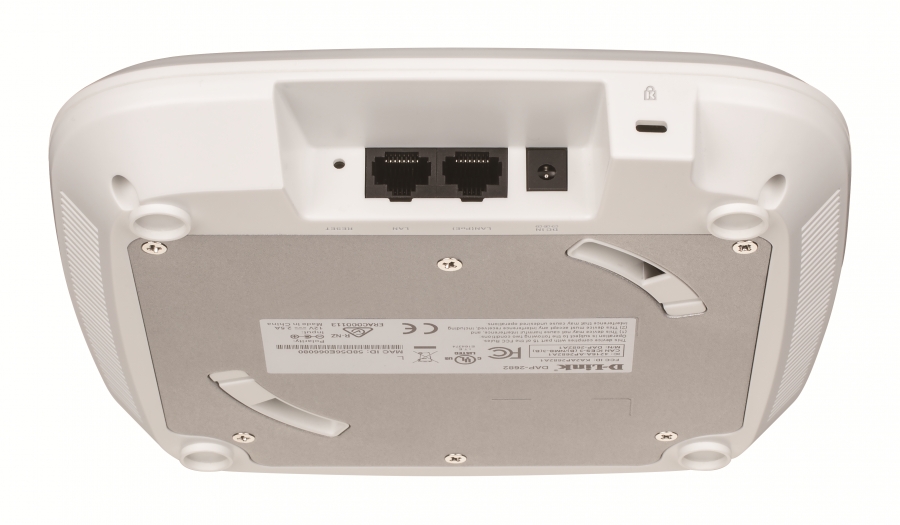

Fast, business‑class Wave 2 Wi‑Fi. Designed for medium businesses or enterprise environments, the DAP-2682 provides network administrators with fast, secure and manageable dual-band 802.11ac wireless, coupled with easy and free Nuclias Connect network management.Strong security, with centralised network management Use as a standalone AP or manage centrally via free Nuclias Connect software. Wave 2 Wi-Fi with Band Steering Fast wireless speeds of up to 2300 Mbps. Automatically steers traffic to the fastest, least congested band.MU-MIMO & Beamforming Allows multiple devices to connect simultaneously for improved efficiency. And creates highly-targeted Wi-Fi connections for superior Wi-Fi bandwidth.Multiple Operational Modes Use as an access point (AP), wireless client, Wireless Distribution System (WDS) or Wireless Distribution System with AP (WDS+AP).Convenient management Intuitive interface with instant alerts and live usage reports with integrated Google maps to show the locations of all devices in the network.Free dedicated app Free Nuclias Connect tablet app to instantly detect devices on the network and easy remote management from anywhere.Easy-mount setup with PoE Supports Power over Ethernet (802.3af) for a simpler installation with a single cable.Nuclias hardware controller The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.Seamlessly connect entire crowds to a safer and faster internet. It supports up to eight VLANs per band, allowing multiple SSIDs to segment users. It features wireless client isolation, which limits direct client-to-client communication for added privacy. Moreover, Network Access Protection (NAP) allows multiple levels of network access to be defined based on a client’s needs.Your network, your way. Customise the network the way you need it to perform. The AP can be used as a standalone AP or part of a centralised, scalable, multi-device deployment.Reliably faster Wireless AC performance. Delivers reliable wireless speed with maximum wireless signal rates of up to 600 Mbps in the 2.4 GHz band and 1700 Mbps in the 5 GHz band, and also optimises your network’s performance with Quality of Service (QoS), MU-MIMO, Band Steering and Beamforming.Scale your Wi‑Fi alongside your business. The free Nuclias Connect management software controller allows you to scale up the network by up to 1,000 access points, providing a cost-effective network that can be tailored to the demands of the business.
|
| 2.4 GHz | Y | | 5 GHz | Y | | Maximum data transfer rate | 1700 Mbit/s | | Maximum data transfer rate (2.4 GHz) | 600 Mbit/s | | Maximum data transfer rate (5 GHz) | 1700 Mbit/s | | Ethernet LAN data rates | 10,100,1000 Mbit/s | | Frequency band | 2.4 - 5 GHz | | Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u | | Cabling technology | 10/100/1000Base-T(X) | | MIMO | Y | | MIMO type | Multi User MIMO | | Wi-Fi Multimedia (WMM)/(WME) | Y | | VLAN support | Y | | Virtual LAN features | Multiple VXLAN (MUX VLAN) | | Quality of Service (QoS) support | Y | | Mean time between failures (MTBF) | 341897 h | | Security algorithms | 64-bit WEP, 128-bit WEP, WPA2 | | MAC address filtering | Y | | Service Set Identifier (SSID) features | SSID broadcast | | Number of SSID supported | 16 | | Auto Wireless Distribution System (WDS) | Y | | Remote Authentication Dial-In User Service (RADIUS) | Y | | Management protocols | Telnet, SSH | | Web-based management | Y | | Ethernet LAN (RJ-45) ports | 2 | | Power over Ethernet (PoE) | Y | | AC input voltage | 12 V | | Input current | 2.5 A | | Power consumption (max) | 15.5 W | | Placement | Ceiling, Wall | | Product colour | White | | LED indicators | Power, Status | | Certification | FCC, CE, UL | | Antenna type | Internal | | Antenna gain level (max) | 4.8 dBi | | Width | 190 mm | | Depth | 190 mm | | Height | 43.7 mm | | Weight | 551.6 g | | Operating relative humidity (H-H) | 10 - 90% | | Operating temperature (T-T) | 0 - 40 °C | | Storage temperature (T-T) | -20 - 65 °C | | Storage relative humidity (H-H) | 5 - 95% | | Harmonized System (HS) code | 85176990 |
|
