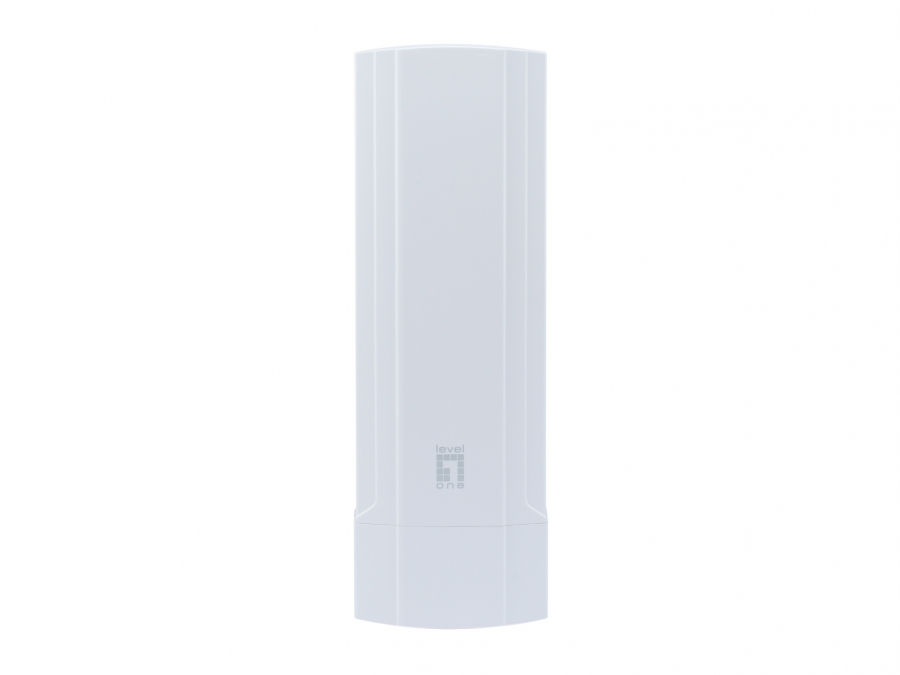

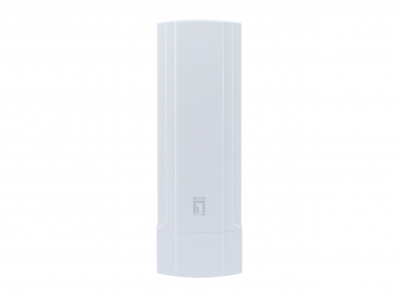

Level One LevelOne WLAN Access Point & Extender outdoor 5GHz PoE

LEVEL ONE

WAB-8010

Jauns

The LevelOne WAB-8010 outdoor single-band 802.11ac wireless access point, capable of 867 Mbps wireless internet speeds and distance of up to 5km. Supply 802.11ac Wave 2 MU-MIMO (Multi-User Multiple-Input Multiple-Output), allows multiple devices to get high- bandwidth Wi-Fi signal at the same time, distributing data more efficiently. The device runs on 5 GHz frequency, also offers PoE, removing the need for an external power supply, which makes it easy to install. Advanced weatherproof design, rated to IP65 means the WAB-8010 is designed for outdoor deployments, and can withstand rain, humidity, dust and snow. A fast, versatile and secure access point for a wide variety of outdoor network requirements.

2.4 GHzN
5 GHzY
Maximum data transfer rate867 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band4.92 - 5.92 GHz
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Cabling technology10/100/1000Base-T(X)
Channels quantity165 channels
MIMOY
MIMO typeMulti User MIMO
Maximum outdoor range5000 m
Security algorithmsWEP, WPA, WPA2
Number of SSID supported4

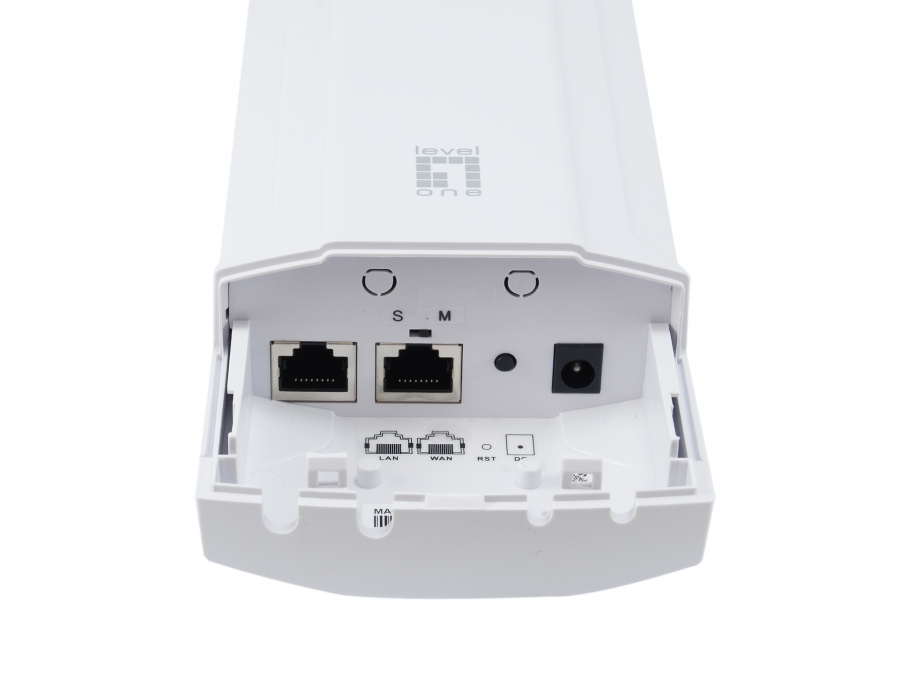

Ethernet LAN (RJ-45) ports1
WAN connectionEthernet (RJ-45)
DC-in jackY
Power over Ethernet (PoE)Y
AC input voltage12 V
Input current1.5 A

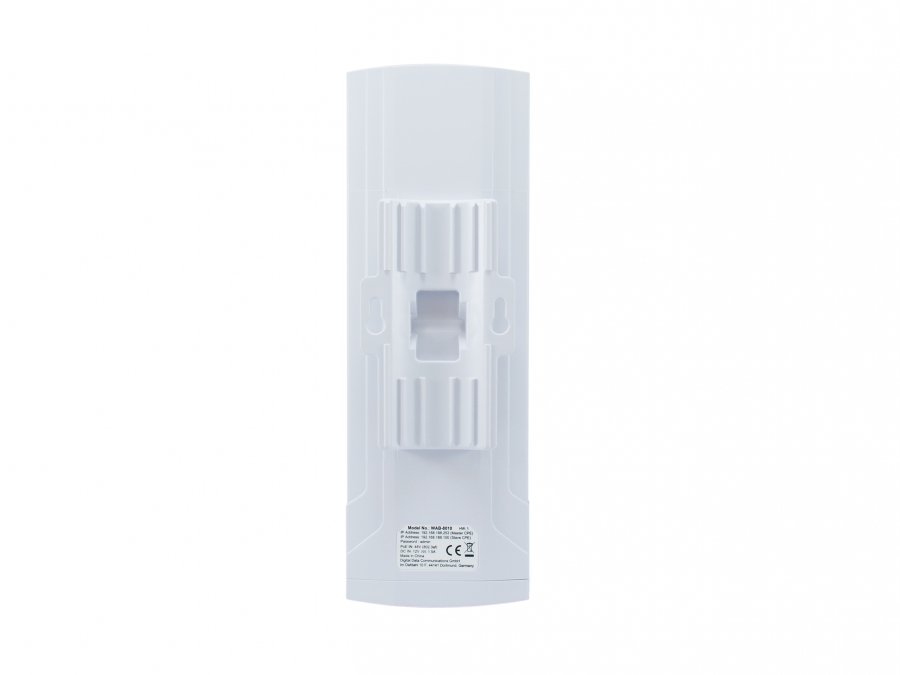

PlacementPole
Product colourWhite
International Protection (IP) codeIP65

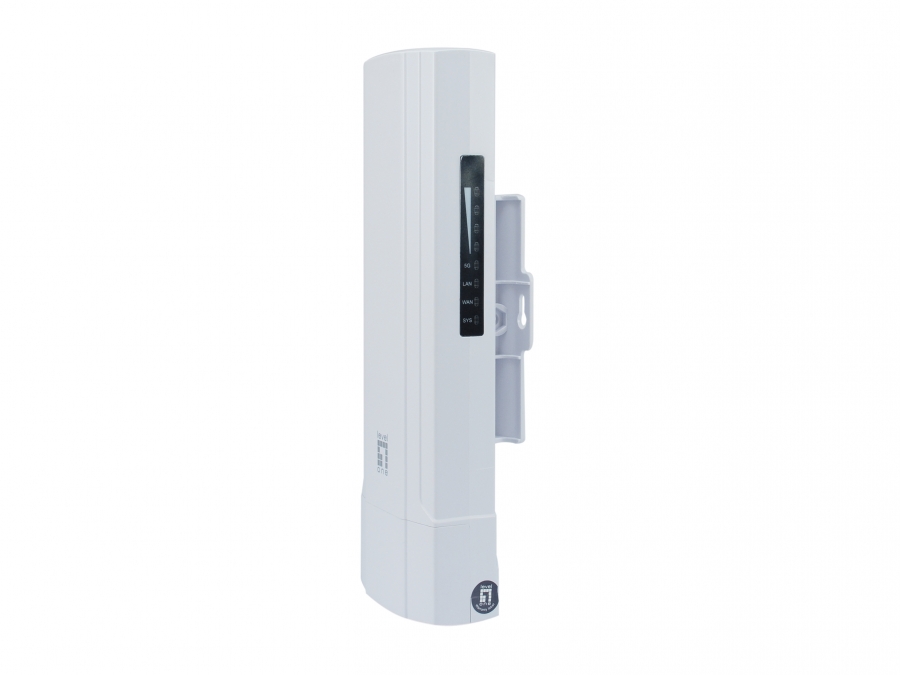

LED indicatorsLAN, System, WAN
Country of originChina
Antenna typeInternal
Antennas quantity1
Antenna gain level (max)14 dBi
Built-in processorY
Processor manufacturerQualcomm
Flash memory16 MB
Internal memory128 MB
Internal memory typeDDR2
Master (outer) cases per pallet (air)24 pc(s)
Pallet net height164 cm
Pallet net length80 cm
Pallet net width120 cm
Width87 mm
Depth257 mm
Height45 mm
Weight440 g
Package width106 mm
Package depth332 mm
Package height95 mm
Package weight660 g
Cables includedLAN (RJ-45)
Mounting kitY
Quick start guideY
Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)-30 - 45 °C
Storage temperature (T-T)-40 - 75 °C
Storage relative humidity (H-H)5 - 95%
Sustainability certificatesCE, RoHS
Harmonized System (HS) code85176990
Master (outer) case width350 mm
Master (outer) case length495 mm
Master (outer) case height455 mm
Master (outer) case gross weight15 kg
Products per master (outer) case20 pc(s)
