Level One LevelOne WLAN Access AX1800 Wireless PoE DualBand WiFi6

Kods WAP-8131

Condition: Jauns

Vairāk informācijas

The LevelOne WAP-8131 is a standalone, AX1800 dual-band Wi-Fi 6 PoE wireless access point that features dual Gigabit Ethernet ports and advanced 802.11ax Wave 2 MU-MIMO (Multi-User Multiple-Input Multiple-Output), allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. capable of a combined speed of up to 1775 Mbps. The WAP-8131 provides 2.4 and 5 GHz frequencies and can be used as a high-quality stand-alone access point in a corporate environment or for demanding installations. It also offers support for the new WPA3 encryption. Of course, the WAP-8131 is also equipped with PoE, which eliminates the need for an external power supply, simplifying installation. A fast, versatile and secure access point for a variety of network requirements, especially when high speeds are important for many users.

2.4 GHz	Y
5 GHz	Y
6 GHz	N
Maximum data transfer rate	1800 Mbit/s
Maximum data transfer rate (2.4 GHz)	574 Mbit/s
Maximum data transfer rate (5 GHz)	1201 Mbit/s
Frequency band	2.412 - 2.484, 5.18G -5.825
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u
Channels quantity	165 channels
MIMO	Y
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA
Operating modes	Gateway, Repeater, AP
Security algorithms	AES, WPA, WPA2, WPA3
Service Set Identifier (SSID) features	Multiple SSIDs
Number of SSID supported	8
Web-based management	Y

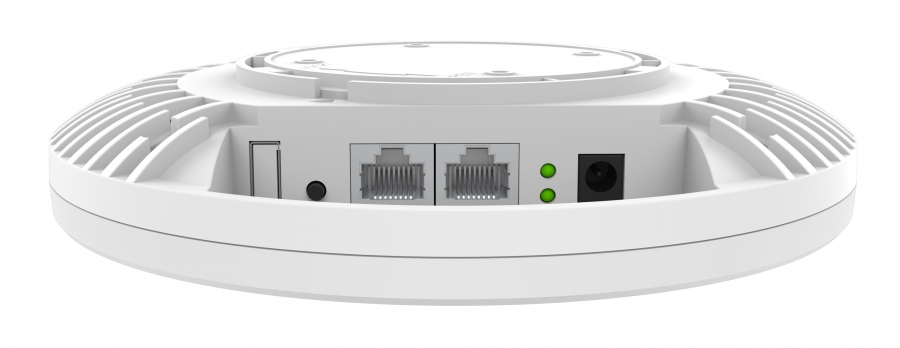

Ethernet LAN (RJ-45) ports	2
DC-in jack	Y
Power over Ethernet (PoE)	Y
Power consumption (max)	14 W
Placement	Ceiling, Wall
Product colour	White
LED indicators	Status
Country of origin	China
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	4 dBi
Chipset	Qualcomm IPQ6000
Flash memory	128 MB
Internal memory	512 MB
Master (outer) cases per pallet (air)	10 pc(s)
Pallet net height	164.4 cm
Pallet net length	80 cm
Pallet net width	120 cm
Width	186 mm
Depth	186 mm
Height	42.5 mm
Weight	418.5 g
Package width	243 mm
Package depth	235 mm
Package height	76 mm
Package weight	750 g
Cables included	LAN (RJ-45)
Quick start guide	Y
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	0 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Sustainability compliance	Y
Sustainability certificates	CE, RoHS
Master (outer) case width	410 mm
Master (outer) case length	520 mm
Master (outer) case height	500 mm
Master (outer) case gross weight	16 kg
Products per master (outer) case	20 pc(s)
