Level One LevelOne WL-AP WAP-6117 300Mbps

LEVEL ONE

WAP-6117

Jauns

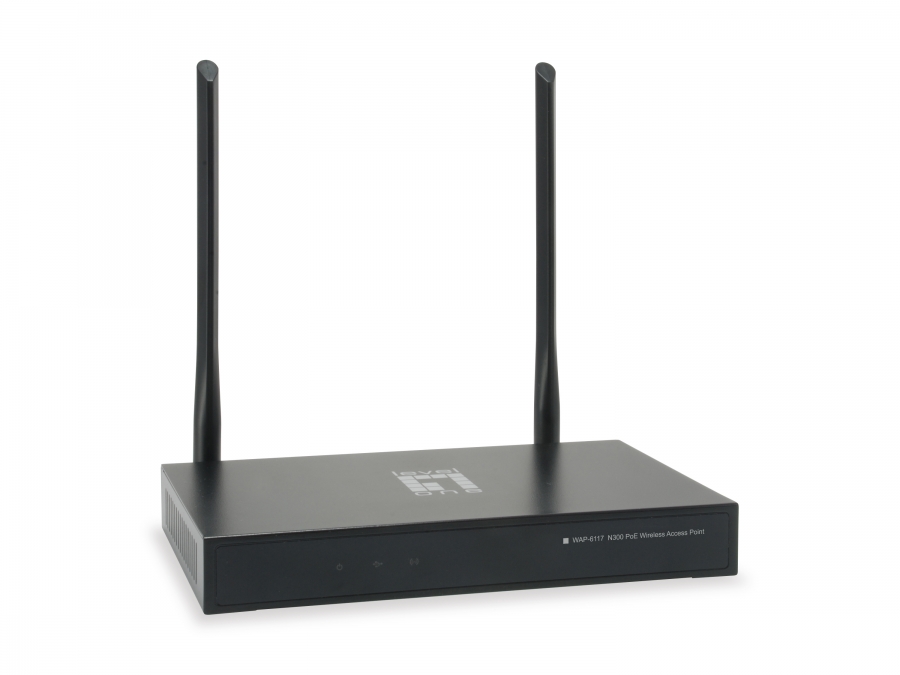

This 802.11n single-band wireless access point can run on PoE, and is a fully managed device (when controlled by LevelOne WAC-2000, WAC-2003). The managed AP is capable of 300 Mbps throughput on the 2.4GHz frequency, and operates on its own or as part of a larger, managed network of access points. PoE means the device does not require an external power supply, making it a versatile and easily deployed option for all sizes of network.

2.4 GHzY
5 GHzN
Maximum data transfer rate300 Mbit/s
Wi-Fi data rate (max)300 Mbit/s
Ethernet LAN data rates10,100 Mbit/s
Frequency band2.4 - 2.4835 GHz
Networking standardsIEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Number of users40 user(s)
Channels quantity13 channels
Modulation16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi Multimedia (WMM)/(WME)Y
Operating modesAccess Point (AP),Gateway,Repeater,WISP
Quality of Service (QoS) supportY
Receiver sensitivity802.11n: -68 dBm 802.11g:6Mbps: (-90) dBm 802.11g:54Mbps: (-72) dBm 802.11b:1Mbps: (-95) dBm 802.11b:11Mbps: (-90) dBm
Security algorithms64-bit WEP, 128-bit WEP, 152-bit WEP, WPA, WPA-AES, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2
Service Set Identifier (SSID) featuresSSID broadcast on/off
Number of SSID supported4
Web-based managementY
Firmware upgradeableY

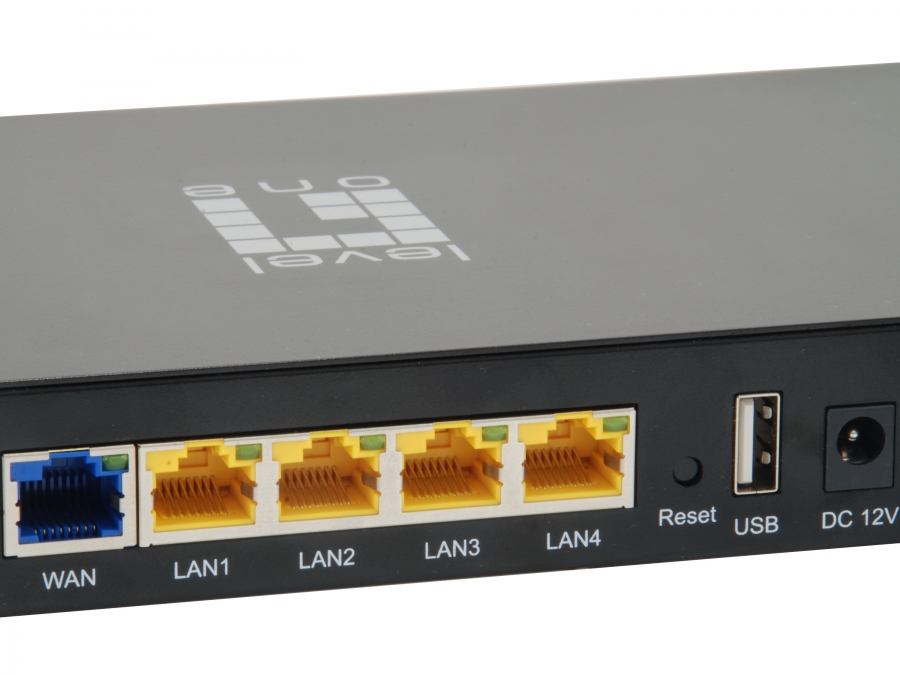

Ethernet LAN (RJ-45) ports4
USB 2.0 ports quantity1
WAN connectionEthernet (RJ-45)
DC-in jackY
Power over Ethernet (PoE)Y
AC input voltage12 V
Input current1.5 A
Power consumption (typical)12 W
PlacementTable
Product colourBlack
WPS push buttonY

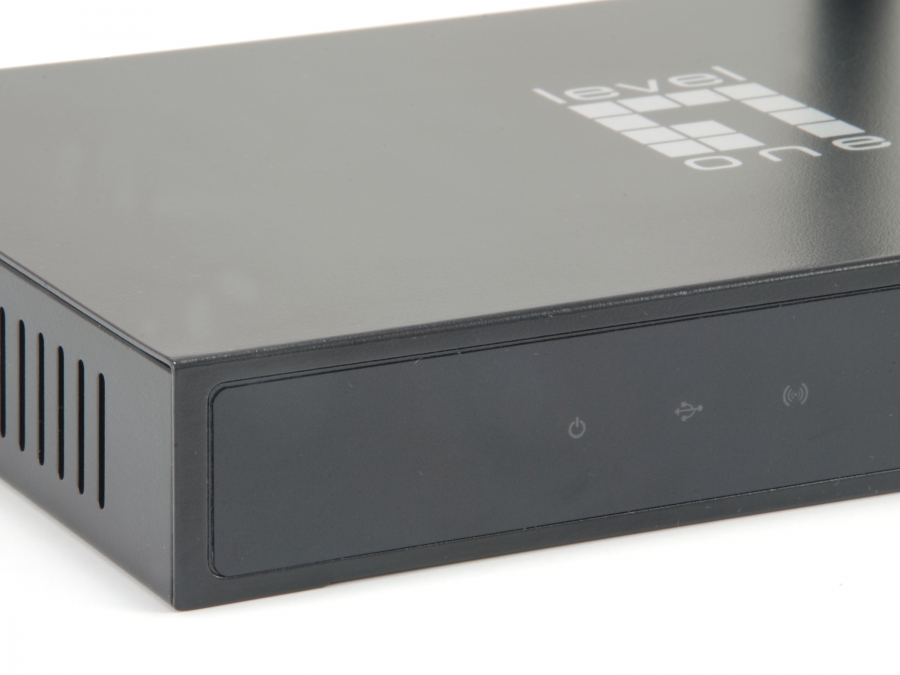

LED indicatorsPower, WLAN
Country of originChina
CertificationCE
InternalN
Antenna featuresDetachable antenna
Antennas quantity2
Antenna gain level (max)5 dBi
Width135 mm
Depth220 mm
Height30 mm
Weight700 g
CD manualY
CD quick installation guideY
Package width217 mm
Package depth260 mm
Package height50 mm
Package weight1.1 kg
Cables includedLAN (RJ-45)
Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-40 - 75 °C
Harmonized System (HS) code85176990
Master (outer) case width260 mm
Master (outer) case length655 mm
Master (outer) case height233 mm
Master (outer) case gross weight23 kg
Products per master (outer) case20 pc(s)
